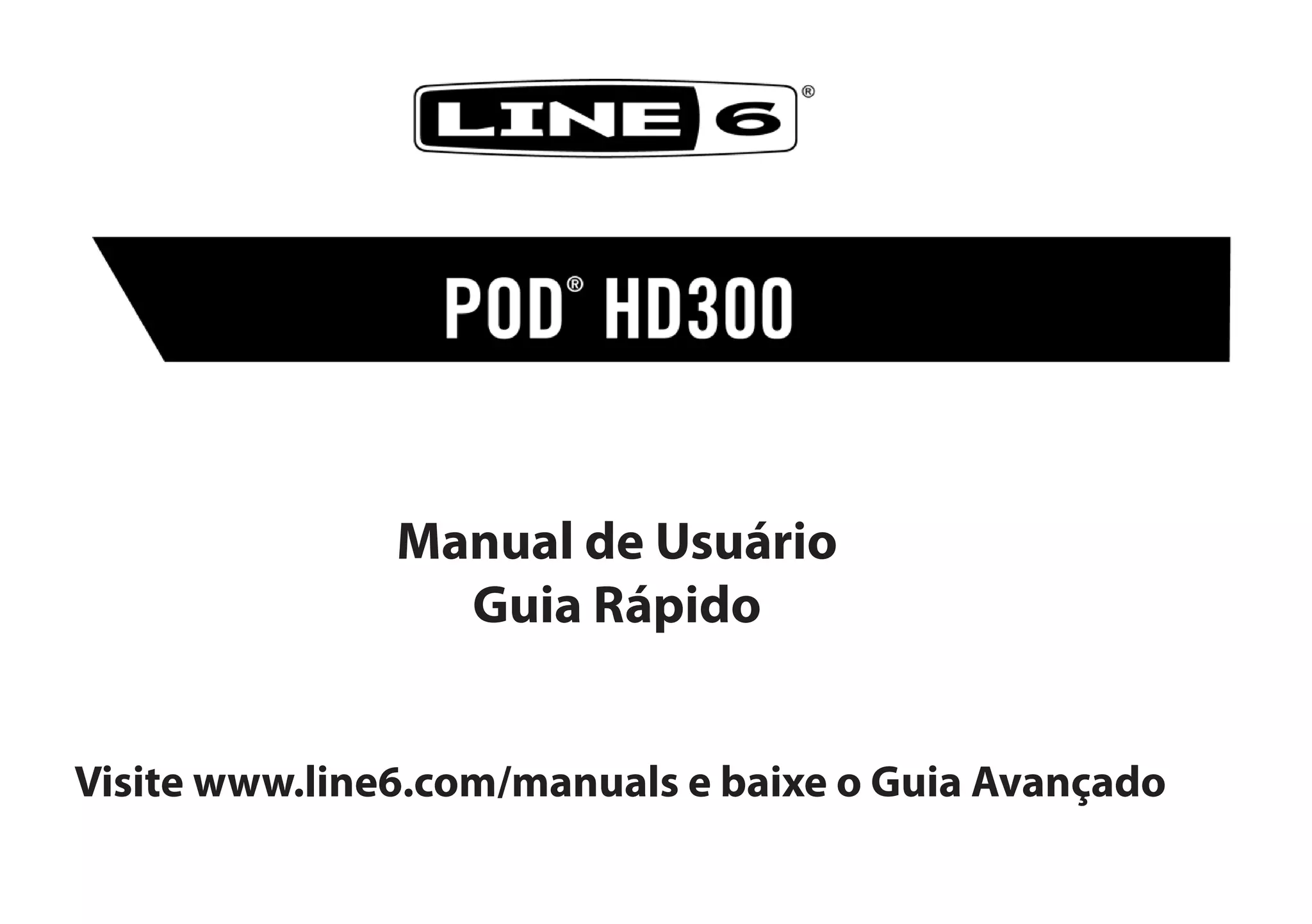

POD HD 300 LINE 6, MODELADOR DE AMPLIFICADORES E EFEITOS DE ALTA DEFINIÇÃO, POSSUI 16 MODELOS DE AMPLIFICADORES, MAIS DE 80 EFEITOS, 128 PRESETS DE USUÁRIO E 256 PRESETS DE FÁBRICA.
2. CUIDADO: ESSE EQUIPAMENTO FOI TESTADO E PROJETADO PARA OBEDECER OS LIMITES DE UM DISPOSITIVO DIGITAL CLASSE B. A OPERAÇÃO ESTÁ SUJEITA ÀS
SEGUINTES CONDIÇÕES: (1) ESSE DISPOSITIVO NÃO DEVE CAUSAR INTERFERÊNCIA NOCIVA, E (2) ESSE DISPOSITIVO DEVE ACEITAR QUALQUER INTERFERÊNCIA RECE-
BIDA, INCLUSIVE INTERFERÊNCIAS QUE POSSAM CAUSAR OPERAÇÃO INDESEJÁVEL.

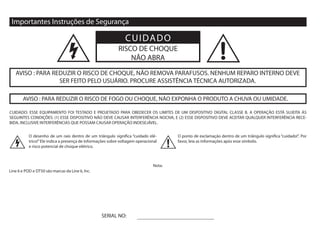

Importantes Instruções de Segurança
AVISO : PARA REDUZIR O RISCO DE FOGO OU CHOQUE, NÃO EXPONHA O PRODUTO A CHUVA OU UMIDADE.
AVISO : PARA REDUZIR O RISCO DE CHOQUE, NÃO REMOVA PARAFUSOS. NENHUM REPARO INTERNO DEVE
SER FEITO PELO USUÁRIO. PROCURE ASSISTÊNCIA TÉCNICA AUTORIZADA.
O desenho de um raio dentro de um triângulo significa “cuidado elé-
trico!”Ele indica a presença de informações sobre voltagem operacional
e risco potencial de choque elétrico.
O ponto de exclamação dentro de um triângulo significa “cuidado!”. Por
favor, leia as informações após esse símbolo.
CUIDADO
RISCO DE CHOQUE
NÃO ABRA
SERIAL NO:
Nota:
Line 6 e POD e DT50 são marcas da Line 6, Inc.
3. Você deve ler essas Importantes Instruções de Segurança. Mantenha essas instruções em um local seguro.
iguais e mais um terceiro para o terra. Ambos os tipos de terra são fornecidos para sua segurança. Se o plug fornecido não se adequar a sua tomada elétrica,
consulte um eletricista para a substituição de sua tomada por um modelo atualmente utilizado.
carrinho, tenha cuidado em sua movimentação para evitar danos no aparelho.
até mesmo quando o cabo estiver danificado, líquido for derramado ou objetos cairem no aparelho, quando o aparelho for exposto a chuva ou umidade, não
operar normalmente ou for derrubado.
tiver
4. Controles do painel frontal
Bem-vindo ao POD HD300
Obrigado por levar o POD HD300 para sua casa! Nossos engenheiros
trabalharam duro e por muito tempo para projetar a nova linha de
processadores POD HD. Apresentando nova modelação de alta definição,
o POD HD300 também possui efeitos vindos de nossa série M, M9 e M13.
E não é apenas isso! O POD HD é o primeiro produto a oferecer conexão
L6 LINK, um protocolo de conectividade que abre um novo universo de
recursos e controle para músicos profissionais quando utilizado com outros
produtos (por exemplo, a série de amps de guitarra DT50 da Line 6!)
Quando estiver pronto para se aprofundar, recomendamos que leia o
Guia Avançado e Galeria de Modelos do POD HD300 disponível no site
www.line6.com/manuals. E, enquanto estiver online, aproveite para fazer
o download grátis do software POD HD300 Edit. Neste manual serão
abordadas as operações básicas. Então, vamos começar!

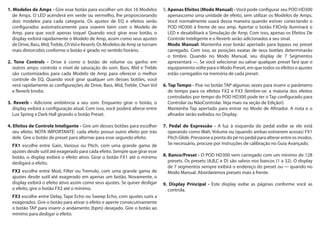

5. 1. Modelos de Amps - Gire esse botão para escolher um dos 16 Modelos
de Amps. O LED acenderá em verde ou vermelho, lhe proporcionando
dois modelos para cada categoria. Os ajustes de EQ e efeitos serão
configurados automaticamente para soarem bem com o Modelo de
Amp, para que você apenas toque! Quando você girar esse botão, o
display exibirá rapidamente o Modelo de Amp, assim como seus ajustes
deDrive,Bass,Mid,Treble,ChVoleReverb.OsModelosdeAmpsetornam
mais distorcidos conforme o botão é girado no sentido horário.
2. Tone Controls - Drive é como o botão de volume ou ganho em
outros amps: controla o nível de saturação do som. Bass, Mid e Treble
são customizados para cada Modelo de Amp para oferecer o melhor
controle de EQ. Quando você girar qualquer um desses botões, você
verá rapidamente as configurações de Drive, Bass, Mid, Treble, Chan Vol
e Reverb knobs.
3. Reverb - Adicione ambiência a seu som. Enquanto girar o botão, o
display exibirá a configuração atual. Com isso, você poderá alterar entre
Lux Spring e Dark Hall girando o botão Preset.
4. Efeitos de Controle Inteligente - Gire um desses botões para escolher
seu efeito. NOTA IMPORTANTE: cada efeito possui outro efeito por trás
dele. Gire o botão de preset para alternar para esse segundo efeito.
FX1 escolhe entre Gain, Various ou Pitch, com uma grande gama de
ajustes desde sutil até exagerado para cada efeito. Sempre que girar esse
botão, o display exibirá o efeito ativo. Girar o botão FX1 até o mínimo
desligará o efeito.
FX2 escolhe entre Mod, Filter ou Tremolo, com uma grande gama de
ajustes desde sutil até exagerado em apenas um botão. Novamente, o
display exibirá o efeito ativo assim como seus ajustes. Se quiser desligar
o efeito, gire o botão FX2 até o mínimo.
FX3 escolhe entre Delay, Tape Echo ou Sweep Echo, com ajustes sutis a
exagerados. Gire o botão para ativar o efeito e aperte consecutivamente
o botão TAP para inserir o andamento (bpm) desejado. Gire o botão ao
mínimo para desligar o efeito.
5. Apenas Efeitos (Modo Manual) - Você pode configurar seu POD HD300
apenascomo uma unidade de efeito, sem utilizar os Modelos de Amps.
Você normalmente usará dessa maneira quando estiver conectando o
POD HD300 à frente de seu amp. Apertar o botão FXOnly iluminará o
LED e desabilitará a Simulação de Amp. Com isso, apenas os Efeitos De
Controle Inteligente e o Reverb serão adicionados a seu sinal.
Modo Manual: Mantenha esse botão apertado para bypass no preset
carregado. Com isso, as posições exatas de seus botões determinarão
o timbre. Quando no Modo Manual, seu display de 7 Segmentos
apresentará ---. Se você selecionar ou salvar qualquer preset fará que o
equipamento volte para o Modo Preset, em que todos os efeitos e ajustes
estão carregados na memória de cada preset.
6. Tap Tempo - Pise no botão TAP algumas vezes para inserir o parâmetro
de tempo para os efeitos FX2 e FX3 (lembre-se: a maioria dos efeitos
controlados por tempo do POD HD300 pode ter o Tap configurado para
Controlar ou NãoControlar. Veja mais na seção de Edição!).
Mantenha Tap apertado para entrar no Modo de Afinador. A nota e o
afinador serão exibidos no Display.
7. Pedal de Expressão - A luz à esquerda do pedal exibe se ele está
operando como Wah, Volume ou (quando ambas estiverem acesas) FX1
Pitch Glide. Pressione a ponta do pé no pedal para alterar entre os modos.
Se necessário, procure por instruções de calibração no Guia Avançado.
8. Banco/Preset - O POD HD300 vem carregado com um mínimo de 128
presets. Os presets (A,B,C e D) são salvos nos bancos (1 a 32). O display
de 7 segmentos sempre exibirá o endereço do preset ou --- quando no
Modo Manual. Abordaremos presets mais à frente.
9. Display Principal - Este display exibe as páginas conforme você as
controla.
6. 10. 4 Way Nav Disc - Used to move through options on certain pages in
your Main Display. Press the left or right side of the 4 Way Nav when
is displayed next to an item to change settings. Press up and down
when is displayed next to an item.
11. Presets Knob - Turn this knob to scroll through all of the stored presets.
Press the PRESETS knob to enter Edit Mode. Here you'll discover the
power to deep edit effects as you make your way through the various
edit pages. Press on the 4-WAY NAV to scroll through the edit
pages. Press to move through the available edit parameters of each
page. To edit a parameter, turn the Presets Knob to change values or
settings.
Let’s practice editing a preset (just because we can)! We’re going to
add a Pitch Glide effect to our preset, and assign the pedal to control
it. It’s easy- promise!
• Spin the PRESETS Knob to preset location 06C. (You can also use
a combination of Bank Up/Down commands via the footswitches
to get there) You are in bank 6, location C. The Main Display
should read T-Man Crunch as the preset name.
• Press the PRESETS Knob to enter Edit Mode. Press on the
4-way Nav until you see FX1 in the upper left hand corner of the
Display. The currently loaded Effect to the right of FX1 should
say Screamer.
• Press the on the 4-way Nav until you see Model displayed on
the left in the lower line of the Display. It will say Select to the
right of the icon. Turn the PRESETS knob, and you’ll notice
you are scrolling through the available effects in the FX1 slot.
Keep turning until you select Pitch Glide.
• Press the on the 4-Way Nav to see Routing. Turn the PRESETS
knob to select Post. (You’ve just put the Pitch Glide effect Post
amp modeling.)
• Press the on the 4-Way Nav to see Pedal. Turn the PRESETS
knob to display Wah=Glide. (Now, when you press the toe down
on the pedal to switch modes, instead of the Wah effect you’ll be
controlling the Pitch Glide)
• Press the on the 4-Way Nav to see Heel. This sets the amount
of pitch shift when the pedal is in the heel down position. Let’s
turn the PRESETS knob to select -12.0 (semi-tones, or an octave
down)
• Press on the 4-Way Nav to Toe. Turn the PRESETS knob to
+12.0 (semi-tones, or an octave up)
• Press the on the 4-Way Nav to see Mix. Turn the PRESETS
knob to set the MIX level to 100%. (Tip: Hold down the PRESETS
knob as you turn it to scroll through values more quickly!)
• Press the toe switch on the Expression Pedal so both WAH and
VOL LEDs are lit next to the pedal.
You’ve just created a preset that glides from an octave down to an
octave up when you rock the pedal. You are amazing! If you are in love
with this sound (and who wouldn’t be!), be sure to name and save as
described below.
10. Navegador de 4 Posições - Usado para escolher parâmetros em
determinadas páginas de edição. Pressione o lado esquerdo/direito ou
para cima/para baixo do Navegador de 4 Posições quando próximo de
algum item para fazer a alteração.
11. Botão de Presets – Gire esse botão para navegar entre os presets.
Pressione o botão Presets para entrar no Modo de Edição. Com isso,
você conhecerá os parâmetros mais detalhados das possíveis edições de
cada efeito pelas páginas existentes. Utilize o Navegador de 4 Posições
para navegar pelas páginas de edição. Para editar um parâmetro, gire o
botão Presets.
Que tal praticarmos a editar um preset? Vamos adicionar um efeito
de Pitch Glide a nosso preset, e controlá-lo pelo pedal de expressão .
Prometemos que será fácil!
• Gire o botão Presets para o endereço 06C (você também pode chegar
lá utilizando Bank Up/Down por meio dos footswitches). Com isso, você
estará no banco 6, preset C. O Display Principal deve exibirT-Man Crunch
como nome de preset.
• Pressione o botão Presets para entrar no Modo de Edição. Utilize o
Navegador de 4 Posições até ver FX1 no canto esquerdo superior do
display. O efeito carregado em FX1 deve ser Screamer.
• Utilize o Navegador de 4 Posições até ler Model no canto esquerdo
inferior do Display. Aparecerá Select à direita do ícone. Gire o botão
Presets e você perceberá que está navegando nos modelos de efeitos
disponíveis para FX1. Gire até encontrar Pitch Glide.
• Pressione o Navegador de 4 Posições até encontrar Routing. Gire o
botão Presets para escolher Post (com isso, você estará configurando
seu efeito de Pitch Glide após o Modelo de Amp).
• Utilize o Navegador de 4 Posições até encontrar Pedal. Gire o botão
Presets até encontrar Wah=Glide (com isso, quando você pressionar seu
pé na ponta do pedal para alterar entre os modos, em vez de Wah você
controlará o Pitch Glide).
• Utilize o Navegador de 4 Posições até encontrar Heel. Com isso, você
ajustará o quanto seu pedal deslocará o som de sua nota quando
você posicionar seu pé para a frente do pedal. Gire o botão Presets
paraescolher -12 (semitons, ou uma oitava abaixo)
• Use o Navegador de 4 Posições até encontrar Toe. Gire o botão Presets
até chegar a +12 (semitons, ou uma oitava acima).
• Utilize o Navegador de 4 Posições até encontrar Mix. Gire o botão
Presets para configurar Mix em100%. Mantenha o botão Presets
pressionado enquanto gira para a transição ser mais rápida!
• Pressione a ponta do Pedal de Expressão para que ambas as luzes de
Wah e Vol se acendam ao lado do pedal.
Com isso, você acaba de criar um preset que altera sua nota desde uma
oitava abaixo até uma oitava acima conforme você move seu pedal.
Incrível! Se você adorou o som (quem não adoraria?), renomeie o preset
e salve seu timbre como descrito a seguir.
7. 12. Save - You can save your custom sounds or modifications by overwriting
any of the existing presets. Press the SAVE button, your display will
appear similar to this:
The preset location shown above left is your current location. To save to
a new preset memory location, press on your 4-WAY NAV to access
a new preset location (shown as 06C above). You can personalize the
preset name you are saving (shown as PRESET NAME above). Press
on the 4-WAY NAV to move the flashing black cursor over the
character you want to edit, then turn the PRESETS knob to change
the character. Press SAVE when finished to save your changes. To
abort your save, press the TAP footswitch. Remember: POD HD300
has a free software editor, POD HD300 Edit, available for download
at Line6.com. This app (Windows and Mac) makes it easy to see and
edit the signal flow, save presets individually or in bundles, and share
presets online at CustomTone.com.
13. Multi Use Footswitches - Hands free control access to all presets,
looper function and stomp box style on/off operation for live and
studio situations. There are 3 modes of operation described below.
14. Mode Footswitch/LEDs - Use this switch to toggle through the 3
available footswitch modes.
Preset Mode (Green LED):
A B C D
Press a footswitch to load its preset (A, B, C or D). Press both A and B
switches to bank up (1-32) or press both B and C to bank down (32-1)
from your current bank.
Looper Mode (Red LED):
PRE/
POST
REC/
OVERDUB
PLAY/
STOP
PLAY
ONCE
Equips your POD HD300 with 24 seconds of looping capability.
The PRE/POST footswitch allows you to set your loop recording
and playback either before amp and effects modeling or after (LED
off=PRE, LED on=POST). Recording in PRE mode (LED off) let’s you
record your guitar, then audition various effects with your loop playing
back, while recording in POST mode (LED on) captures your amp and
effects in the loop and then layer different sounds by changing presets.
Note: changing the state of the PRE/POST footswitch while the loop
is playing back can dramatically change the volume, so be careful!)
Stomp REC/OVERDUB to start recording a loop then stomp PLAY/
STOP to end loop and immediately start playback. You can overdub
additional parts by again, stomping the REC/OVERDUB switch. Stomp
PLAY/STOP to stop or start playback. You can exit Looper Mode even
when a loop is still playing to switch presets or turn amps and effects
on/off and return back to add additional loops. How cool is that?
Pedal On/Off Mode (Amber LED):
AMP FX1 FX2 FX3
Gain total control of your preset tone in Pedal On/Off mode. There are
4 components to your signal path - AMP, FX1, FX2 and FX3. Use the
appropriately labeled switch to turn any of these on (LED lit) or off.
Just like a real pedalboard full of stompboxes!
12. Save - You can save your custom sounds or modifications by overwriting
any of the existing presets. Press the SAVE button, your display will
appear similar to this:
The preset location shown above left is your current location. To save to
a new preset memory location, press on your 4-WAY NAV to access
a new preset location (shown as 06C above). You can personalize the
preset name you are saving (shown as PRESET NAME above). Press
on the 4-WAY NAV to move the flashing black cursor over the
character you want to edit, then turn the PRESETS knob to change
the character. Press SAVE when finished to save your changes. To
abort your save, press the TAP footswitch. Remember: POD HD300
has a free software editor, POD HD300 Edit, available for download
at Line6.com. This app (Windows and Mac) makes it easy to see and
edit the signal flow, save presets individually or in bundles, and share
presets online at CustomTone.com.
13. Multi Use Footswitches - Hands free control access to all presets,
looper function and stomp box style on/off operation for live and
studio situations. There are 3 modes of operation described below.
14. Mode Footswitch/LEDs - Use this switch to toggle through the 3
available footswitch modes.
Preset Mode (Green LED):
A B C D
Press a footswitch to load its preset (A, B, C or D). Press both A and B
switches to bank up (1-32) or press both B and C to bank down (32-1)
from your current bank.
Looper Mode (Red LED):
PRE/
POST
REC/
OVERDUB
PLAY/
STOP
PLAY
ONCE
Equips your POD HD300 with 24 seconds of looping capability.
The PRE/POST footswitch allows you to set your loop recording
and playback either before amp and effects modeling or after (LED
off=PRE, LED on=POST). Recording in PRE mode (LED off) let’s you
record your guitar, then audition various effects with your loop playing
back, while recording in POST mode (LED on) captures your amp and
effects in the loop and then layer different sounds by changing presets.
Note: changing the state of the PRE/POST footswitch while the loop
is playing back can dramatically change the volume, so be careful!)
Stomp REC/OVERDUB to start recording a loop then stomp PLAY/
STOP to end loop and immediately start playback. You can overdub
additional parts by again, stomping the REC/OVERDUB switch. Stomp
PLAY/STOP to stop or start playback. You can exit Looper Mode even
when a loop is still playing to switch presets or turn amps and effects
on/off and return back to add additional loops. How cool is that?
Pedal On/Off Mode (Amber LED):
AMP FX1 FX2 FX3
Gain total control of your preset tone in Pedal On/Off mode. There are
4 components to your signal path - AMP, FX1, FX2 and FX3. Use the
appropriately labeled switch to turn any of these on (LED lit) or off.
Just like a real pedalboard full of stompboxes!
12. Save - Você pode salvar seus próprios timbres ou modificações por
cima de qualquer um dos patches existentes. Pressione o botão Save e
sua tela exibirá algo semelhante a isso:
A localização do preset fica na esquerda. Para salvar em uma nova
localização, utilize o Navegador de 4 Posições para acessar a nova
localização (como 06C logo acima). Você pode personalizar o nome
do preset que está salvando (como PRESET NAME logo acima). Utilize
o Navegador de 4 Posições para movimentar o cursor para cima do
caractere que você deseja alterar, então gire o botão Presets para alterá-
lo. Pressione Save quando terminar de editar as informações de seu
preset.Paraabortaroprocesso,pressioneobotãoTap.Lembre-se:oPOD
HD300 possui um software editor grátis, o POD HD300 Edit, disponível
para download em Line6.com. Esse aplicativo (Windows e Mac) permite
visualizar a cadeia do sinal e as edições feitas, salvar presets individuais
ou pacotes completos (bundles) e disponibilizar seus timbres no site
CustomTone.com.
13. Footswitches de Multi Uso - Controle todos os presets sem usar as
mãos, funções dolooper e liga/desliga de pedais para todas situações ao
vivo e em estúdio.Existem três modos de operação, descritos abaixo.
14. Footswitch de Modos/LEDs - Use esse footswitch para alternar entre
os três modos de pedais existentes.
Modo de Preset (LED Verde):
Pressione os footswitches para carregar seus presets (A, B, C ou D).
Pressione A e B juntos para subir de banco (1 a 32) ou B e C juntos para
descer de banco (32 a 1) a partir de sua posição atual.
Modo de Looper (LED Vermelho):
Equipa seu POD HD300 com um looper de 24 segundos. O pedal PRE/
POST permite inserir o loop antes ou depois das simulações de amps e
efeitos (LED desligado=PRE - antes, LED ligado=POST - depois). Gravar
loops no modo PRE permite gravar sua guitarra sem efeitos, ao passo
que gravar em POST captura o som de seu amp e efeitos e lhe permite
alterar os sons de novas camadas mudando de presets.
Alterar entre PRE/POST enquanto o loop está tocando pode mudar
bruscamente o volume do som. Portanto, tenha cuidado!). Pise em REC/
Overdub para começar a gravar e depois em Play/Stop para parar o loop
e imediatamente começar a executar o som. Você pode adicionar novas
camadas pisando novamente em Rec/Overdub. Pise em Play/Stop para
parar ou começar a executar o som. Você pode sair do Modo Looper
mesmo quando o looper ainda está tocando e trocar de presets ou ligar/
desligar amps e efeitos e voltar para o looper. Não é incrível?
Modo de Liga/Desliga de Pedal (LED Laranja):
Controle totalmente seu preset ligando ou desligando os quatro
componentes de seu timbre: Amp, FX1, FX2 e FX3. Use os pedais de cada
um dos blocos de processamento para ligar (LED aceso) ou desligar.
Exatamente como um setup de pedais!
12. Save - You can save your custom sounds or modifications by overwriting
any of the existing presets. Press the SAVE button, your display will
appear similar to this:
The preset location shown above left is your current location. To save to
a new preset memory location, press on your 4-WAY NAV to access
a new preset location (shown as 06C above). You can personalize the
preset name you are saving (shown as PRESET NAME above). Press
on the 4-WAY NAV to move the flashing black cursor over the
character you want to edit, then turn the PRESETS knob to change
the character. Press SAVE when finished to save your changes. To
abort your save, press the TAP footswitch. Remember: POD HD300
has a free software editor, POD HD300 Edit, available for download
at Line6.com. This app (Windows and Mac) makes it easy to see and
edit the signal flow, save presets individually or in bundles, and share
presets online at CustomTone.com.
13. Multi Use Footswitches - Hands free control access to all presets,
looper function and stomp box style on/off operation for live and
studio situations. There are 3 modes of operation described below.
14. Mode Footswitch/LEDs - Use this switch to toggle through the 3
available footswitch modes.
Preset Mode (Green LED):
A B C D
Press a footswitch to load its preset (A, B, C or D). Press both A and B
switches to bank up (1-32) or press both B and C to bank down (32-1)
from your current bank.
Looper Mode (Red LED):
PRE/
POST
REC/
OVERDUB
PLAY/
STOP
PLAY
ONCE
Equips your POD HD300 with 24 seconds of looping capability.
The PRE/POST footswitch allows you to set your loop recording
and playback either before amp and effects modeling or after (LED
off=PRE, LED on=POST). Recording in PRE mode (LED off) let’s you
record your guitar, then audition various effects with your loop playing
back, while recording in POST mode (LED on) captures your amp and
effects in the loop and then layer different sounds by changing presets.
Note: changing the state of the PRE/POST footswitch while the loop
is playing back can dramatically change the volume, so be careful!)
Stomp REC/OVERDUB to start recording a loop then stomp PLAY/
STOP to end loop and immediately start playback. You can overdub
additional parts by again, stomping the REC/OVERDUB switch. Stomp
PLAY/STOP to stop or start playback. You can exit Looper Mode even
when a loop is still playing to switch presets or turn amps and effects
on/off and return back to add additional loops. How cool is that?
Pedal On/Off Mode (Amber LED):
AMP FX1 FX2 FX3
Gain total control of your preset tone in Pedal On/Off mode. There are
4 components to your signal path - AMP, FX1, FX2 and FX3. Use the
appropriately labeled switch to turn any of these on (LED lit) or off.
Just like a real pedalboard full of stompboxes!
12. Save - You can save your custom sounds or modifications by overwriting
any of the existing presets. Press the SAVE button, your display will
appear similar to this:
The preset location shown above left is your current location. To save to
a new preset memory location, press on your 4-WAY NAV to access
a new preset location (shown as 06C above). You can personalize the
preset name you are saving (shown as PRESET NAME above). Press
on the 4-WAY NAV to move the flashing black cursor over the
character you want to edit, then turn the PRESETS knob to change
the character. Press SAVE when finished to save your changes. To
abort your save, press the TAP footswitch. Remember: POD HD300
has a free software editor, POD HD300 Edit, available for download
at Line6.com. This app (Windows and Mac) makes it easy to see and
edit the signal flow, save presets individually or in bundles, and share
presets online at CustomTone.com.
13. Multi Use Footswitches - Hands free control access to all presets,
looper function and stomp box style on/off operation for live and
studio situations. There are 3 modes of operation described below.
14. Mode Footswitch/LEDs - Use this switch to toggle through the 3
available footswitch modes.
Preset Mode (Green LED):
A B C D
Press a footswitch to load its preset (A, B, C or D). Press both A and B
switches to bank up (1-32) or press both B and C to bank down (32-1)
from your current bank.
Looper Mode (Red LED):
PRE/
POST
REC/
OVERDUB
PLAY/
STOP
PLAY
ONCE
Equips your POD HD300 with 24 seconds of looping capability.
The PRE/POST footswitch allows you to set your loop recording
and playback either before amp and effects modeling or after (LED
off=PRE, LED on=POST). Recording in PRE mode (LED off) let’s you
record your guitar, then audition various effects with your loop playing
back, while recording in POST mode (LED on) captures your amp and
effects in the loop and then layer different sounds by changing presets.
Note: changing the state of the PRE/POST footswitch while the loop
is playing back can dramatically change the volume, so be careful!)
Stomp REC/OVERDUB to start recording a loop then stomp PLAY/
STOP to end loop and immediately start playback. You can overdub
additional parts by again, stomping the REC/OVERDUB switch. Stomp
PLAY/STOP to stop or start playback. You can exit Looper Mode even
when a loop is still playing to switch presets or turn amps and effects
on/off and return back to add additional loops. How cool is that?
Pedal On/Off Mode (Amber LED):
AMP FX1 FX2 FX3
Gain total control of your preset tone in Pedal On/Off mode. There are
4 components to your signal path - AMP, FX1, FX2 and FX3. Use the
appropriately labeled switch to turn any of these on (LED lit) or off.
Just like a real pedalboard full of stompboxes!
8. 1. Cable Retainer - Insert your power supply cable through this once or
twice to prevent an accidental disconnect.
2. Power - Connect your Line 6 Power Supply here to power the unit.
Unplug to turn it off
3. Guitar In - Plug your guitar cable in here.
4. CD/MP3 Input - Connect a CD player, MP3 player, drum machine
or other device here, and you’ll hear it through the PHONES,
UNBALANCED OUTPUT and BALANCED OUTPUT. Use your
device’s output control to adjust the volume relative to your guitar
tone. Start with the volume on your device at its lowest setting and
bring it up to the volume you desire.
5. MasterVolume - This controls the overall output level of POD HD300
and also sets the headphone level. Changing the MASTER VOLUME
level does not change your tone, so you can get the tone you want at
any volume level. This setting is not saved when you store settings into
one of the POD HD300 memory locations.
6. Unbalanced Output - connect 1/4" cables here to send your sound to a
guitar amplifier, recorder, mixer or PA system. Set the switch between
these connectors to AMP when sending to a guitar amp or LINE for
devices with -10dBV inputs typical of mixers and recorders.
7. Balanced Output - connect balanced XLR cables here for an ideal
connection to digital recorders or as direct sends to the house mixer or
PA when playing live. If you are experiencing hums and buzzes, set the
switch between these connectors to LIFT to eliminate ground loops
between your equipment.
8. Output Mode - Optimize your tone for the application. Use STUDIO
to apply a direct signal complete with microphone and cabinet
simulations to recorders and mixers. Use LIVE when connecting to
a guitar amplifier speaker combination for a natural more direct guitar
tone. When set to DUAL, you can send a direct signal through the
LEFT outputs to a guitar amp and a studio quality mic and speaker
cabinet simulated signal through the RIGHT outputs to a mixer or
recorder.
9. Phones - Plug headphones in here. The volume is set by the MASTER
VOLUME knob. Always use safe listening practices, so we recommend
setting the MASTER VOLUME knob at 10 o'clock, then turn up from
there if you need more volume.
10. L6 LINK – is a powerful, proprietary connection developed by Line 6
to enable easy, reliable, one-cable connectivity between various Line 6
products. In the case of the DT50 Series guitar amplifiers and POD HD
(300/400/500) series multi-effects processors, this connection allows
both products to sync and communicate uniquely with each other.
L6 LINK passes both audio and control data in a single cable, and
the resulting operation allows users to plug a single cable from their
POD HD family processor into a DT50 series amp and receive many
incredible benefits:
• No additional cables are required to connect a POD HD
(300/400/500) to a DT50 series guitar amplifier.
• Changing Tone settings (for example) on either the POD HD or
DT50 immediately updates the other, with the result that both
units stay perfectly in sync.

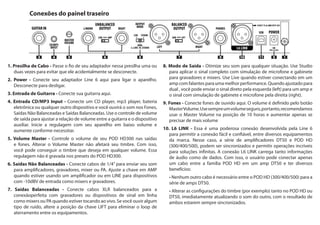

REAR CONNECTIONSConexões do painel traseiro
1. Presilha de Cabo - Passe o fio de seu adaptador nessa presilha uma ou
duas vezes para evitar que ele acidentalmente se desconecte.
2. Power - Conecte seu adaptador Line 6 aqui para ligar o aparelho.
Desconecte para desligar.
3. Entrada de Guitarra - Conecte sua guitarra aqui.
4. Entrada CD/MP3 Input - Conecte um CD player, mp3 player, bateria
eletrônica ou qualquer outro dispositivo e você ouvirá o som nos Fones,
Saídas Não Balanceadas e Saídas Balanceadas. Use o controle de volume
de saída para ajustar a relação de volume entre a guitarra e o dispositivo
auxiliar. Inicie a regulagem com seu aparelho em baixo volume e
aumente conforme necessitar.
5. Volume Master - Controle o volume de seu POD HD300 nas saídas
e fones. Alterar o Volume Master não afetará seu timbre. Com isso,
você pode conseguir o timbre que deseja em qualquer volume. Essa
regulagem não é gravada nos presets do POD HD300.
6. Saídas Não Balanceadas - Conecte cabos de 1/4” para enviar seu som
para amplificadores, gravadores, mixer ou PA. Ajuste a chave em AMP
quando estiver usando um amplificador ou em LINE para dispositivos
com -10dBV de entrada como mixers e gravadores.
7. Saídas Balanceadas - Conecte cabos XLR balanceados para a
conexãoperfeita com gravadores ou dispositivos de sinal em linha
como mixers ou PA quando estiver tocando ao vivo. Se você ouvir algum
tipo de ruído, altere a posição da chave LIFT para eliminar o loop de
aterramento entre os equipamentos.
8. Modo de Saída - Otimize seu som para qualquer situação. Use Studio
para aplicar o sinal completo com simulação de microfone e gabinete
para gravadores e mixers. Use Live quando estiver conectando em um
amp com falantes para uma melhor performance. Quando ajustado para
dual , você pode enviar o sinal direto pela esquerda (left) para um amp e
o sinal com simulação de gabinete e microfone pela direita (right).
9. Fones - Conecte fones de ouvido aqui. O volume é definido pelo botão
MasterVolume.Usesempreumvolumeseguro,portanto,recomendamos
usar o Master Volume na posição de 10 horas e aumentar apenas se
precisar de mais volume
10. L6 LINK - Essa é uma poderosa conexão desenvolvida pela Line 6
para permitir a conexão fácil e confiável, entre diversos equipamentos
da marca. Nesse caso, a série de amplificadores DT50 e POD HD
(300/400/500), podem ser sincronizados e permitir operações incríveis
para soluções infinitas. A conexão L6 LINK carrega tanto informações
de áudio como de dados. Com isso, o usuário pode conectar apenas
um cabo entre a família POD HD em um amp DT50 e ter diversos
benefícios:
• Nenhum outro cabo é necessário entre o POD HD (300/400/500) para a
série de amps DT50.
• Alterar as configurações do timbre (por exemplo) tanto no POD HD ou
DT50, imediatamente atualizando o som do outro, com o resultado de
ambos estarem sempre sincronizados.
9. • Edite um preset no POD HD pelo simples giro de um botão do DT50
como se fosse um amp convencional. Então salve dentro de seu POD HD
para poder usá-lo quando quiser.
• Esse é incrível! Carregar um preset no POD HD fará que o DT50
se configure dinamicamente em analógico para complementar o
som da maneira adequada. Altere seu preset no POD HD e o DT50
automaticamente se configurará em analógico com operações Classe A
ou A/B, método de Bias, voltagem B+, topologia da resposta, operação
com Triodo/Pêntodo de válvulas de potência e muito mais!
• Sensibilidade automática permite a operação de múltiplos amps em
diversas maneiras, dependendo de como o POD HD for conectado.
No mínimo, todos POD HD permitem a operação em estéreo com os
amps DT50s, e o POD HD500 suporta até quatro configurações de
amps conectados em wet/dry (processado/não processado) facilmente
editáveis.
11. USB - O jack USB permite que você conecte seu produto a qualquer
computadorcomUSBparagravaçãodiretaediversosrecursosadicionais
como o uso do editor grátis POD HD300 Edit. Leia o Guia Avançado para
mais informações.
Visite-nos Online
Baixe seu Guia Avançado e muito mais em www.line6.com/manuals.
Edite os sons do POD HD300 em profundidade com as instruções do
Guia Avançado.Também não se esqueça de registrar seu POD enquanto
estiver online. Isso fará que você tenha direito à garantia oferecida, e
incluirá você em promoções, ofertas especiais e muito mais.
