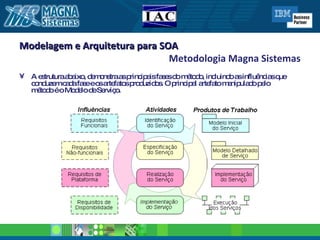

- 1. Mapeamento de Processo de Negócio Apresentação Metodologia

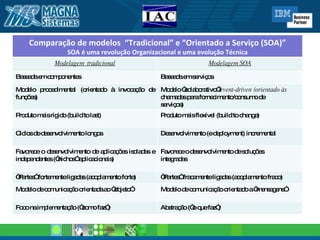

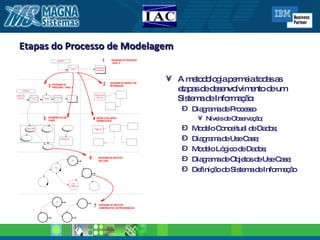

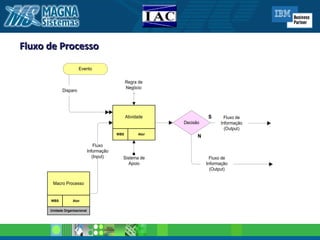

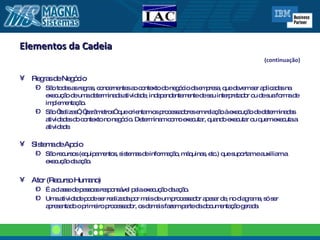

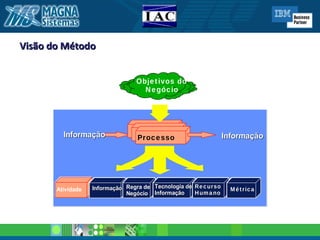

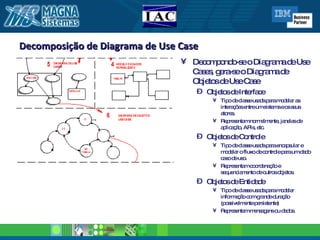

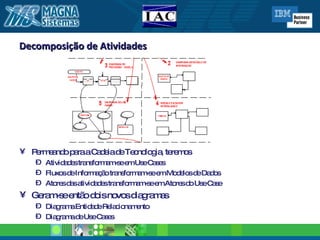

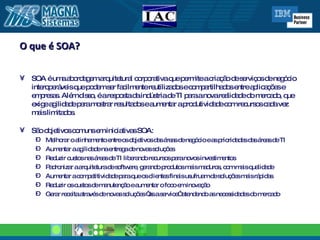

- 12. Comparação de modelos “Tradicional” e “Orientado a Serviço (SOA)” SOA é uma revolução Organizacional e uma evolução Técnica Modelagem tradicional Modelagem SOA Baseada em componentes Baseada em serviços Modelo procedimental (orientado à invocação de funções) Modelo “colaborativo”/ event-driven (orientado às chamadas para fornecimento/consumo de serviços) Produto mais rígido (build to last) Produto mais flexível (build to change) Ciclos de desenvolvimento longos Desenvolvimento (e deployment) incremental Favorece o desenvolvimento de aplicações isoladas e independentes (“nichos” aplicacionais) Favorece o desenvolvimento de soluções integradas “ Partes” fortemente ligadas (acoplamento forte) “ Partes” fracamente ligadas (acoplamento fraco) Modelo de comunicação orientada ao “objeto” Modelo de comunicação orientado a “mensagens” Foco na implementação (“como faz”) Abstração (“o que faz”)

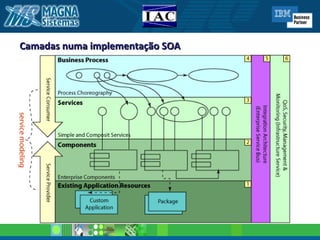

- 15. Camadas numa implementação SOA
