O documento apresenta os resultados de um estudo comparativo entre controle no controlador e controle no campo utilizando tecnologia Fieldbus. O controle no campo mostrou-se mais preciso e estável, com tempos de estabilização menores, especialmente para processos rápidos. Também proporciona redução na variabilidade em até 30% em comparação com controle tradicional 4-20mA. Os ganhos se devem à comunicação determinística e redução no tempo morto proporcionados pelo controle distribuído.
Marcos peluso emerson portuguese

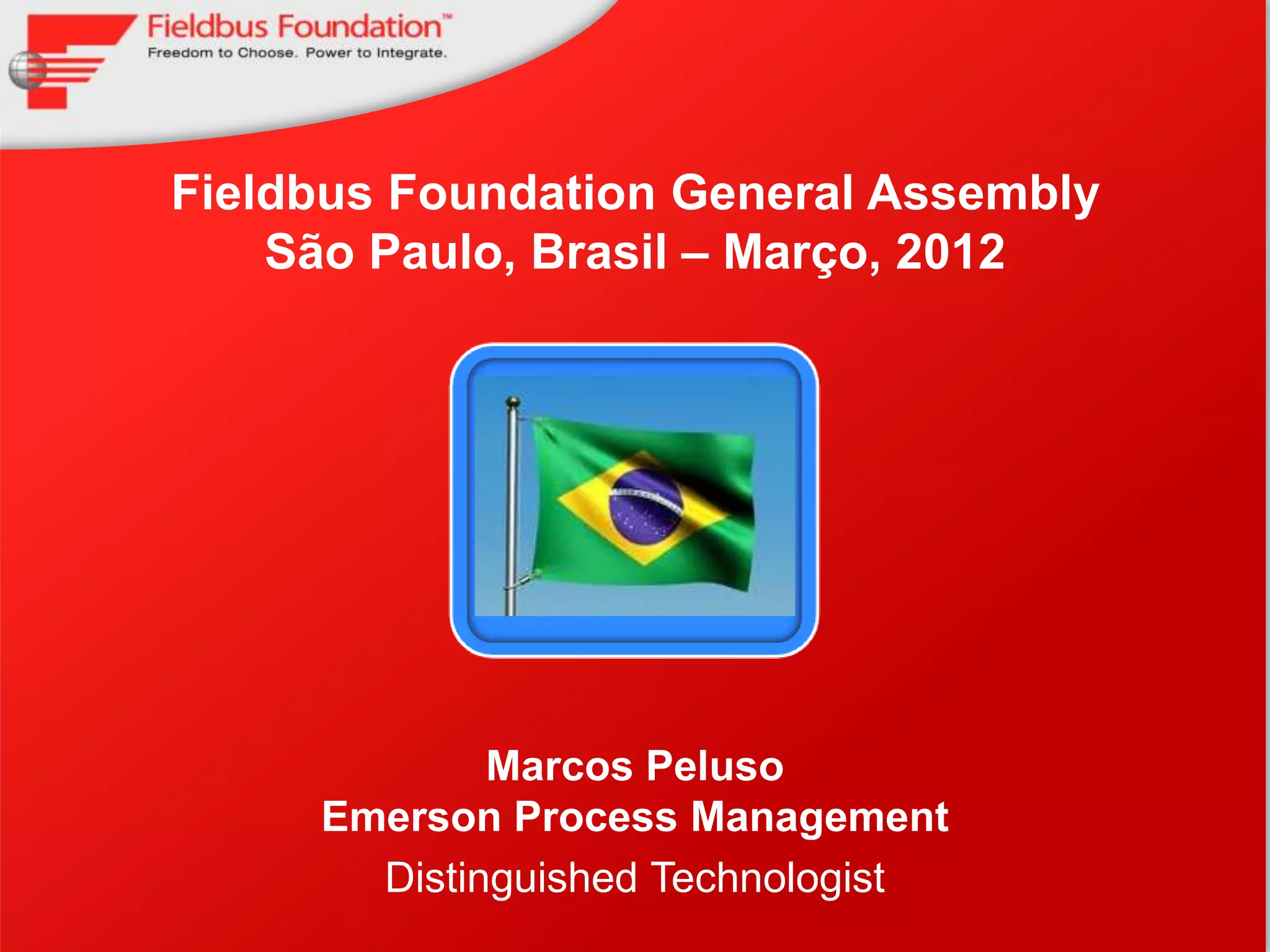

- 1. Fieldbus Foundation GeneralAssembly São Paulo, Brasil – Março, 2012 Marcos Peluso Emerson Process Management Distinguished Technologist © 1999 - 2011 Fieldbus Foundation
- 2. Tecnologia Comprovada Maior Menor Custo Confiabilidade de Por Que? Instalação ? Controle Manutenção Mais Proativa Preciso © 1999 - 2011 Fieldbus Foundation
- 3. Otimizando Controle Variável deProcesso(%) 66 64 SP 62 60 58 56 Limite de Controle para Temperatura 40 50 60 70 80 90 100 Tempo (segundos) © 1999 - 2011 Fieldbus Foundation
- 4. Otimizando Controle Variável deProcesso(%) 66 64 SP 62 60 58 56 Limite de Controle para Temperatura 40 50 60 70 80 90 100 Tempo(segundos) © 1999 - 2011 Fieldbus Foundation
- 5. Ganhos © 1999 -2011 Fieldbus Foundation 5
- 6. Estudo sobre Controleno Campo © 1999 - 2011 Fieldbus Foundation
- 7. Comparação O relatório daUniversidade de Strathclyde (Escócia) e ISC é dividido em duas partes: 1. Comparação entre Contrôle no Controlador com Contrôle no Campo, quando Fieldbus é utilizado nos dois casos. 2. Comparação entre Contrôle no Controlador utilizando 4-20 mA como E/S e Contrôle no Campo © 1999 - 2011 Fieldbus Foundation
- 8. Contrôle no Controladorcom Fieldbus © 1999 - 2011 Fieldbus Foundation
- 9. Contrôle no Controladorcom Fieldbus P I D Ciclo do SDCD Macro Ciclo © 1999 - 2011 Fieldbus Foundation
- 10. Contrôle no Campo © 1999 - 2011 Fieldbus Foundation
- 11. Contrôle no Campo Macro Ciclo P I D © 1999 - 2011 Fieldbus Foundation
- 12. Comparação ms Comunic. PID AI AO 105 AO PID Comunic . AI Contrôle no campo © 1999 - 2011 Fieldbus Foundation
- 13. Comparação ms 625 AO ~~~~ ~ Comunic. 375 AO Comunic. Ciclo Comunic. De AI Contrôle 250 AO 500 ms Comunic. Comunic. 125 AI AO 105 AO Comunic. PID PID Me PID Comunic. AI AI Contrôle Contrôle no Campo no SDCD Foundation © 1999 - 2011 Fieldbus
- 14. Tempo de Estabilização– Processo Super Rápido (< 500 ms) Variável de Processo(%) 62 58 54 60% 50 0 4 8 12 16 20 Tempo (segundos) Caso 1 – Contrôle Caso 3 – Contrôle Setpoint no Campo no SDCD © 1999 - 2011 Fieldbus Foundation
- 15. Tempo de Estabilização– Processo Muito Rápido (< 1 s) Variável de Processo(%) 62 58 54 55% 50 0 4 8 12 16 20 Tempo (segundos) Caso 1 – Contrôle Caso 3 – Contrôle Setpoint no Campo no SDCD © 1999 - 2011 Fieldbus Foundation
- 16. Tempo de Estabilização– Processo Rápido (2 s) Variável de Processo % 62 58 54 66% 50 0 4 8 12 16 20 Tempo (segundos) Caso 3 – Caso 1 – Contrôle Contrôle no Setpoint no Campo SDCD ) 1999 - 2011 Fieldbus Foundation ©
- 17. Tempo de Estabilização– Processo Medio (5s) Variável de Processo % 62 58 54 39% 50 0 4 8 12 16 20 Tempo (segundos) Caso 1 – Contrôle Contrôle no Setpoint no Campo SDCD © 1999 - 2011 Fieldbus Foundation
- 18. Presença de Disturbio Processoutput (%) 66 64 62 60 58 56 40 50 60 70 80 90 100 Time (seconds) Caso 1 – Contrôle Contrôle no Setpoint no Campo SDCD © 1999 - 2011 Fieldbus Foundation
- 19. Presença de Disturbio:Processos diferentes Contrôle no Caso 1 – Contrôle Setpoint SDCD no Campo Super 1.811 Rápido 65% melhor 0.642 Bem 2.132 50% melhor Rápido 1.058 0.517 Rápido 55% melhor 0.231 0.82 Médio 35% melhor 0.53 © 1999 - 2011 Fieldbus Foundation
- 20. Contrôle no Campocomparado com Contrôle em 4-20 mA Os resultados da simulação demonstraram: •Contrôle no campo é 5 a 30% melhor do que contrôle com 4-20 mA. •Melhoria depende das características do processo (tempo de resposta e tempo morto). •Processos mais rápidos (Vazão, Pressão) se beneficiam mais do que processos lentos (algumas malhas de contrôle de temperatura) •Melhoria é observada em contrôle PI ou PID. Pequena melhoria para contrôle P ou PD. •Melhores resultados quando os disturbios são rápidos © 1999 - 2011 Fieldbus Foundation
- 21. Contrôle no Campocomparado com Contrôle com 4-20 mA •Nas malhas bem rápidas, a redução de variabilidade chega a 30% •Para processos com tempo de resposta 10 s, melhoria varia de 5.5 a 15% Ciclo de Contrôle Disturbio Estocástico 250 ms 5.5% 500 ms 8.5% 1000 ms 15% •Para tempo de resposta de 50 s, melhoria varia de 1.5 a 4.8 % © 1999 - 2011 Fieldbus Foundation
- 22. Contrôle no Campoe Contrôle em 4-20 mA Porque o contrôle no campo é melhor: •Contrôle Determinístico: • Em Contrôle no Campo, Blocos de Função e comunicação seguem um cronograma rígido. • Contrôle dependente do tempo espera que as varíaveis sejam atualizadas em períodos fixos. • Nos SDCDs, os cartões de E/S não são sincronizados com o controlador. Tempos de atualização variam. •Redução na latência implica em redução no tempo morto. Contrôle no campo tem menor latência. •Tempo Morto é mortal para contrôle Contrabilidade= . Tempo de Resposta do Processo Tempo Morto © 1999 - 2011 Fieldbus Foundation
- 23. Impacto de umContrôle mais preciso Limite de Contrôle Digital Analogico Pneumatico Manual © 1999 - 2011 Fieldbus Foundation
- 24. Contrôle no Campo Contrôle no Campo usando tecnologia Foundation fieldbus é recomendada por SGSI para contrôle de malhas simples e cascata, não para malhas complexas. Os maiores benefícios identificados por SGSI são redução da carga do controlador, redução do tráfico na rêde, permitindo mais malhas de contrôle, assim como tempos de resposta mais rápidos. © 1999 - 2011 Fieldbus Foundation
- 25. Tecnologia Comprovada Maior Menor Custo Confiabilidade de Por Que? Instalação ? Controle Manutenção Mais Proativa Preciso © 1999 - 2011 Fieldbus Foundation
- 26. Confiabilidade e Disponibilidade Globalmente, a indústria de Processo perde US$20 bilhões, ou 5% da produção anual, devido a paradas não programadas e problemas de qualidade. ARC estima que cerca de 80% destas perdas são evitáveis e que 40% são devidas a erros de operação. ARC Insight 10th Junho 2010 © 1999 - 2011 Fieldbus Foundation
- 27. Confiabilidade Fonte Fonte © 1999 - 2011 Fieldbus Foundation
- 28. Confiabilidade Analógico 15.9 anos MTTF 48.2 anos Com Contrôle no Campo © 1999 - 2011 Fieldbus Foundation
- 29. Experiência de umusuário Contrôle no Campo © 1999 - 2011 Fieldbus Foundation
- 30. Experiência de umUsuário Contrôle no campo usando Foundation fieldbus, que tem capacidade inerente de backup, evitou 2 shutdowns incorretos da Planta. © 1999 - 2011 Fieldbus Foundation
- 31. Tecnologia Comprovada Menor Custo Maior Confiabilidade de Instalação Controle Manutenção Mais Proativa Preciso © 1999 - 2011 Fieldbus Foundation
- 32. Muito Obrigado! Perguntas? © 1999 - 2011 Fieldbus Foundation
