Ecosistema de data warehouse com ferramentas microsoft
O documento discute os componentes de um ecossistema de data warehouse com ferramentas Microsoft, incluindo o uso de SQL Server para extração, transformação e carga de dados em um data warehouse, a criação de modelos multidimensionais e tabulares no Analysis Services e ferramentas de self-service BI como Power BI e PowerPivot para análise.
Mais conteúdo relacionado
Semelhante a Ecosistema de data warehouse com ferramentas microsoft
Ecosistema de data warehouse com ferramentas microsoft
- 1. Ecosistema de DataWarehouse com Ferramentas Microsoft
- 2. Quem Sou Diretorda Búfalo Informática Líder do PASS Chapter devSQL/RJ MCT – Trainer MCSE Data e BI
- 3. Links http://facebook.com/devSQL Devsql-subscribe@yahoogroups.com http://www.youtube.com/c/dennestorres http://www.bufaloinfo.com.br http://bufaloinfo.cloudapp.net dennes@bufaloinfo.com.br @Dennes

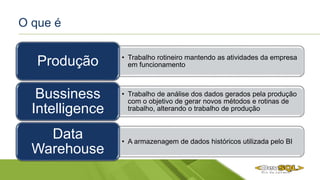

- 5. O que é •Trabalho rotineiro mantendo as atividades da empresa em funcionamentoProdução • Trabalho de análise dos dados gerados pela produção com o objetivo de gerar novos métodos e rotinas de trabalho, alterando o trabalho de produção Bussiness Intelligence • A armazenagem de dados históricos utilizada pelo BI Data Warehouse

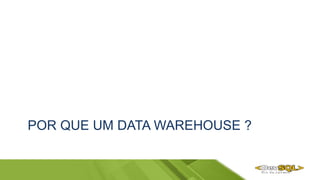

- 6. POR QUE UMDATA WAREHOUSE ?

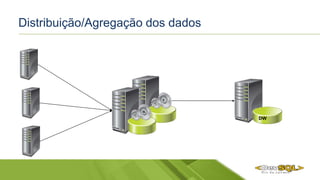

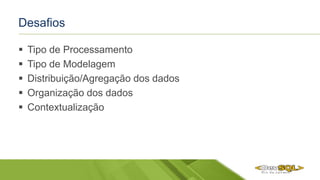

- 7. Desafios Tipo deProcessamento Tipo de Modelagem Distribuição/Agregação dos dados Organização dos dados Contextualização

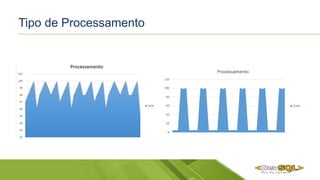

- 8.
- 9.
- 10.

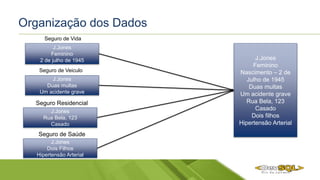

- 11. Organização dos Dados J.Jones Feminino 2de julho de 1945 J.Jones Duas multas Um acidente grave J.Jones Rua Bela, 123 Casado J.Jones Dois Filhos Hipertensão Arterial Seguro de Vida Seguro de Veiculo Seguro de Saúde Seguro Residencial J.Jones Feminino Nascimento – 2 de Julho de 1945 Duas multas Um acidente grave Rua Bela, 123 Casado Dois filhos Hipertensão Arterial
- 12.
- 13.
- 14. Etapas Extrair parao DW Criar modelos de dados Criar Visualizações Disponibilizar

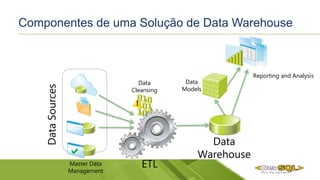

- 15. Componentes de umaSolução de Data Warehouse Data Warehouse Master Data Management Data Cleansing DataSources ETL Data Models Reporting and Analysis
- 16. PASSOS EM UMDATA WAREHOUSE Demo
- 17. Origens de dados Data Warehouse MasterData Management Data Cleansing DataSources ETL Data Models Reporting and Analysis Origens de dados dos mais diversos tipos: Application relational databases Proprietary data stores Documents Real-time data streams External data

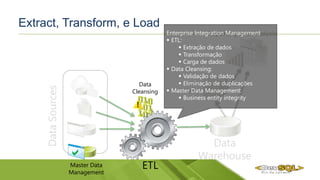

- 18. Extract, Transform, eLoad Reporting and Analysis Data Warehouse Master Data Management Data Cleansing DataSources ETL Data Models Enterprise Integration Management ETL: Extração de dados Transformação Carga de dados Data Cleansing: Validação de dados Eliminação de duplicações Master Data Management: Business entity integrity

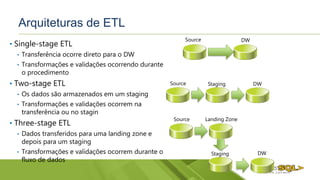

- 20. Arquiteturas de ETL •Single-stage ETL • Transferência ocorre direto para o DW • Transformações e validações ocorrendo durante o procedimento • Two-stage ETL • Os dados são armazenados em um staging • Transformações e validações ocorrem na transferência ou no stagin • Three-stage ETL • Dados transferidos para uma landing zone e depois para um staging • Transformações e validações ocorrem durante o fluxo de dados Source DW Source DWStaging Source DWStaging Landing Zone
- 21.

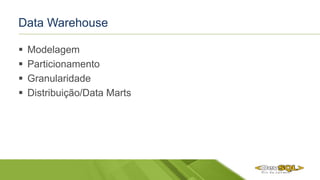

- 22. Data Warehouse Modelagem Particionamento Granularidade Distribuição/Data Marts
- 23. The Data Warehouse Reportingand Analysis Data Warehouse Master Data Management Data Cleansing DataSources ETL Data Models Kimball Dimensional Data Marts Inmon Corporate Information Factory Central Dimensional Data Warehouse Federated Hub-and-Spoke

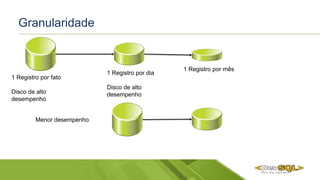

- 24. Granularidade 1 Registro porfato Disco de alto desempenho 1 Registro por dia Disco de alto desempenho 1 Registro por mês Menor desempenho
- 25.

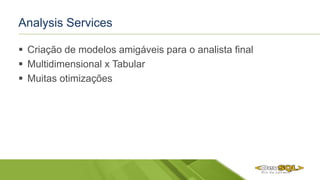

- 26. Analysis Services Criaçãode modelos amigáveis para o analista final Multidimensional x Tabular Muitas otimizações
- 27. Analytical Data Models Reportingand Analysis Data Warehouse Master Data Management Data Cleansing DataSources ETL Data Models Benefícios do Data Model: Abstrai a estrutura do DW Simplifica a análise do usuário Adiciona regras de negócio Pre-agrega as measures Tipos de modelo: Multidimensional Tabular
- 28. Multidimensional Tabular MDX DAX Maiscomplexo Mais simples – próximo do Excel MOLAP/HOLAP/ROLAP In-Memory ou DirectQuery Diversas pequenas diferenças
- 29.
- 30.

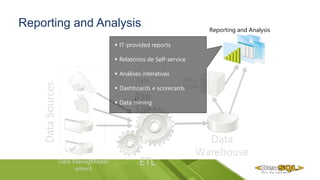

- 31. Reporting and Analysis Data Warehouse DataManagMaster ement Data Cleansing DataSources ETL Data Models IT-provided reports Relatórios de Self-service Análises interativas Dashboards e scorecards Data mining Reporting and Analysis
- 32. Excel Poderosa ferramentaclient Muitos recursos de análise Evita o problema das manutenções infinitas

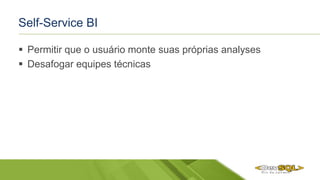

- 33. Self-Service BI Permitirque o usuário monte suas próprias analyses Desafogar equipes técnicas

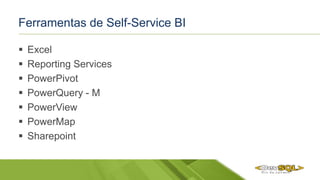

- 34. Ferramentas de Self-ServiceBI Excel Reporting Services PowerPivot PowerQuery - M PowerView PowerMap Sharepoint

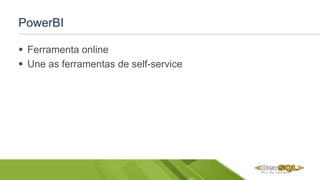

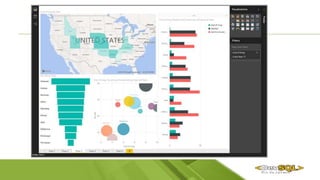

- 35. PowerBI Ferramenta online Une as ferramentas de self-service
- 37.

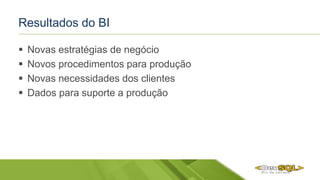

- 38. Resultados do BI Novas estratégias de negócio Novos procedimentos para produção Novas necessidades dos clientes Dados para suporte a produção

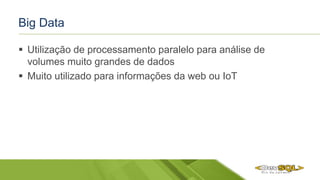

- 39. Big Data Utilizaçãode processamento paralelo para análise de volumes muito grandes de dados Muito utilizado para informações da web ou IoT
- 40.
- 41. Data Cleansing Componentes de umaSolução de Data Warehouse Data Warehouse Master Data Management DataSources ETL Data Models Big Data Machine Learning

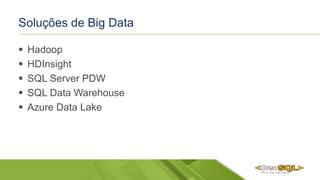

- 42. Soluções de BigData Hadoop HDInsight SQL Server PDW SQL Data Warehouse Azure Data Lake
- 43.

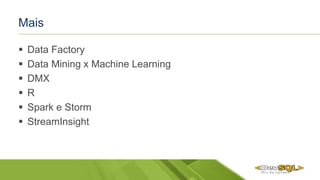

- 46. Mais Data Factory Data Mining x Machine Learning DMX R Spark e Storm StreamInsight

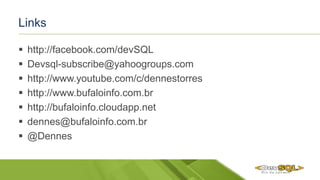

- 47. Links http://facebook.com/devSQL Devsql-subscribe@yahoogroups.com http://www.youtube.com/c/dennestorres http://www.bufaloinfo.com.br http://bufaloinfo.cloudapp.net dennes@bufaloinfo.com.br @Dennes
- 49.
- 50.
Notas do Editor

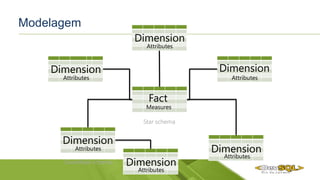

- #10 If students want to better understand how the star join query optimizations in the SQL Server query optimizer work, review the articles referenced in their notes. However, emphasize that the optimizations are automatic and that students do not need to do anything other than use a star schema for the data warehouse tables to benefit from them.
- #16 Note that not all data warehousing solutions include every component shown on the slide. However, each component has an important part to play in the implementation of a data warehousing solution and will be considered in this course.
- #18 Ask students for examples of other types of data source they have encountered. Ask students how they would begin auditing a data source. Typical approaches include: Interactively querying tables in a relational database and examining the results. Reviewing data extracted from systems in text files. Using a tool such as the Data Profiling task in SQL Server Integration Services. Note that students who have previously attended course 20463C: Implementing a Data Warehouse with Microsoft® SQL Server® 2014 have used all of these techniques in the labs in that course.
- #19 Point out that, although ETL is a primary element of a data warehousing solution, it is a subset of EIM. A comprehensive enterprise BI solution may also include data cleansing (either directly in the data sources or as part of the ETL process that loads the data warehouse) and master data management. Point out that the key difference between master data management and data cleansing is that the latter is based on knowledge about valid column values in a dataset. Master data management is based on knowledge about individual instances of business entities. For example, suppose a hypothetical customer has three records, one in each of three different systems. One indicates that the customer lives in “New Yrk”, another indicates that the customer lives in “Paris”, and the third indicates that the customer lives in “London”. A data quality solution might identify that the records all relate to the same customer (based on the fact that the records have the same name and email address) and that “New Yrk” should be corrected to “New York”, but it can’t determine in which of the three cities the customer lives. A master data management solution provides a definitive master record from which the correct data can be determined. Students who have attended course 20463C: Implementing a Data Warehouse with Microsoft® SQL Server® 2014 have used SSIS, DQS, and MDS during the labs in that course.
- #24 Some students may want to debate the comparative merits of the Inmon and Kimball approaches. There are interesting aspects to both designs but, in practice, most solutions built on SQL Server favor a Kimball-style dimensional model in a centralized data warehouse or, in extremely large enterprises, a hub and spoke architecture. Try to avoid getting bogged down in a philosophical debate and steer students toward the pragmatic point that an understanding of dimensional modeling is important regardless of the methodology employed.
- #28 Do not dwell too long on the differences between tabular and multidimensional models, because this is covered in subsequent modules.
- #32 Explain that, although they can be considered as discrete elements of the BI solution, reporting and analysis are closely related and, in practice, are often indistinguishable from one another. For example, a user might employ an Excel PivotTable to analyze data in a cube, and then publish the resulting spreadsheet as a report. Another user might take an OData feed from a SQL Server Reporting Services report as a data source for a personal data model and analyze the report data together with data from other sources. Avoid getting into too much detail about analysis and reporting technologies at this stage. The key point is that reporting and analysis are the end goal of most BI solutions, and the specific reporting and analysis requirements must be identified and documented during the initial planning.
- #42 Note that not all data warehousing solutions include every component shown on the slide. However, each component has an important part to play in the implementation of a data warehousing solution and will be considered in this course.
