Construindo APIs com Amazon API Gateway e AWS Lambda
O documento apresenta o serviço AWS Lambda e Amazon API Gateway. AWS Lambda permite executar código sem servidores enquanto Amazon API Gateway facilita a criação e gestão de APIs RESTful que podem integrar-se com AWS Lambda para processamento sem servidores. O documento demonstra como construir aplicações serverless utilizando esses serviços da AWS.
Mais conteúdo relacionado
Semelhante a Construindo APIs com Amazon API Gateway e AWS Lambda
Mais de Amazon Web Services LATAM
Construindo APIs com Amazon API Gateway e AWS Lambda
- 1. © 2016, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Angelo Carvalho, Arquiteto de Soluções 2016 Construindo APIs com Amazon API Gateway e AWS Lambda

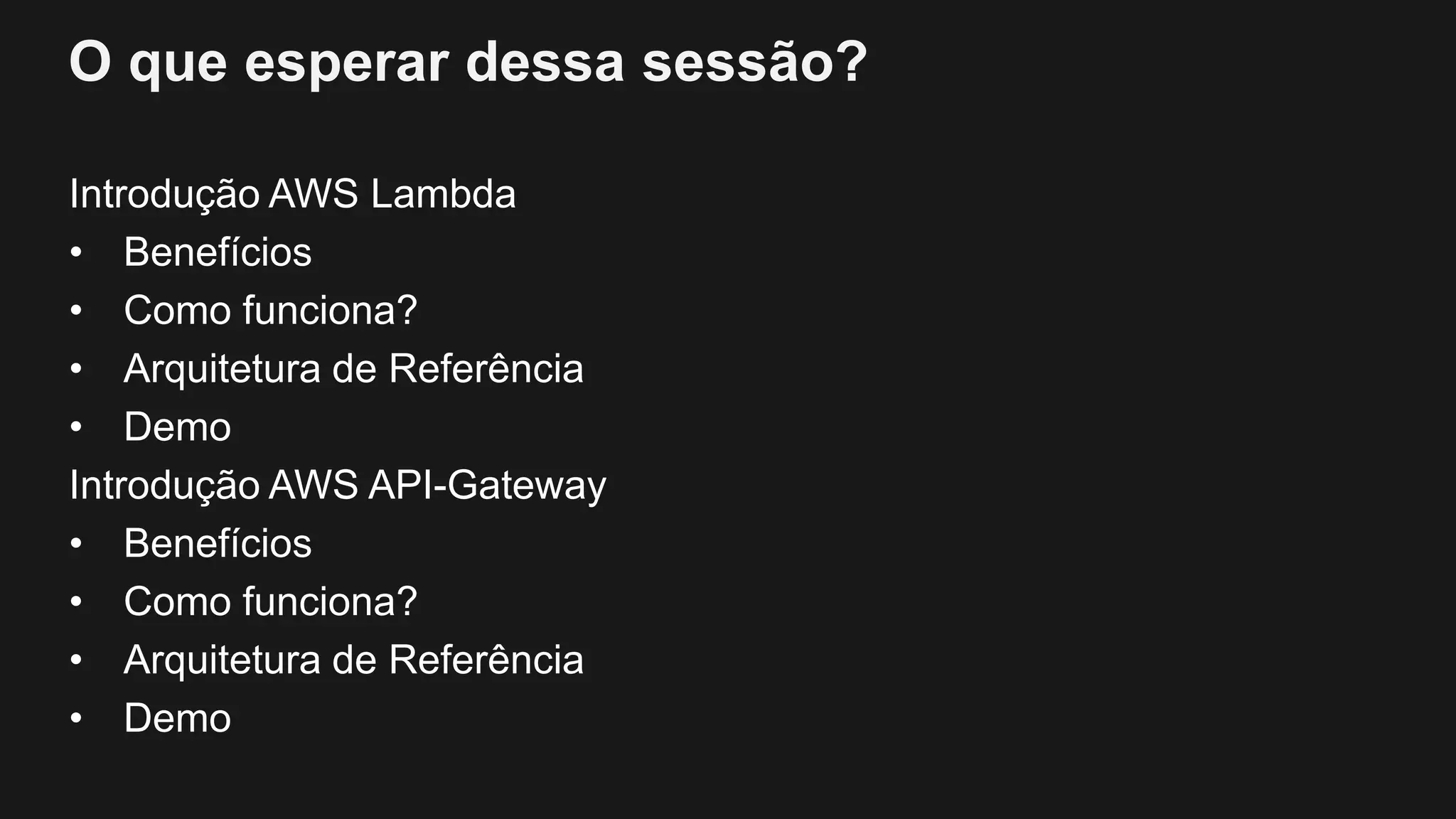

- 2. O que esperardessa sessão? Introdução AWS Lambda • Benefícios • Como funciona? • Arquitetura de Referência • Demo Introdução AWS API-Gateway • Benefícios • Como funciona? • Arquitetura de Referência • Demo
- 3.

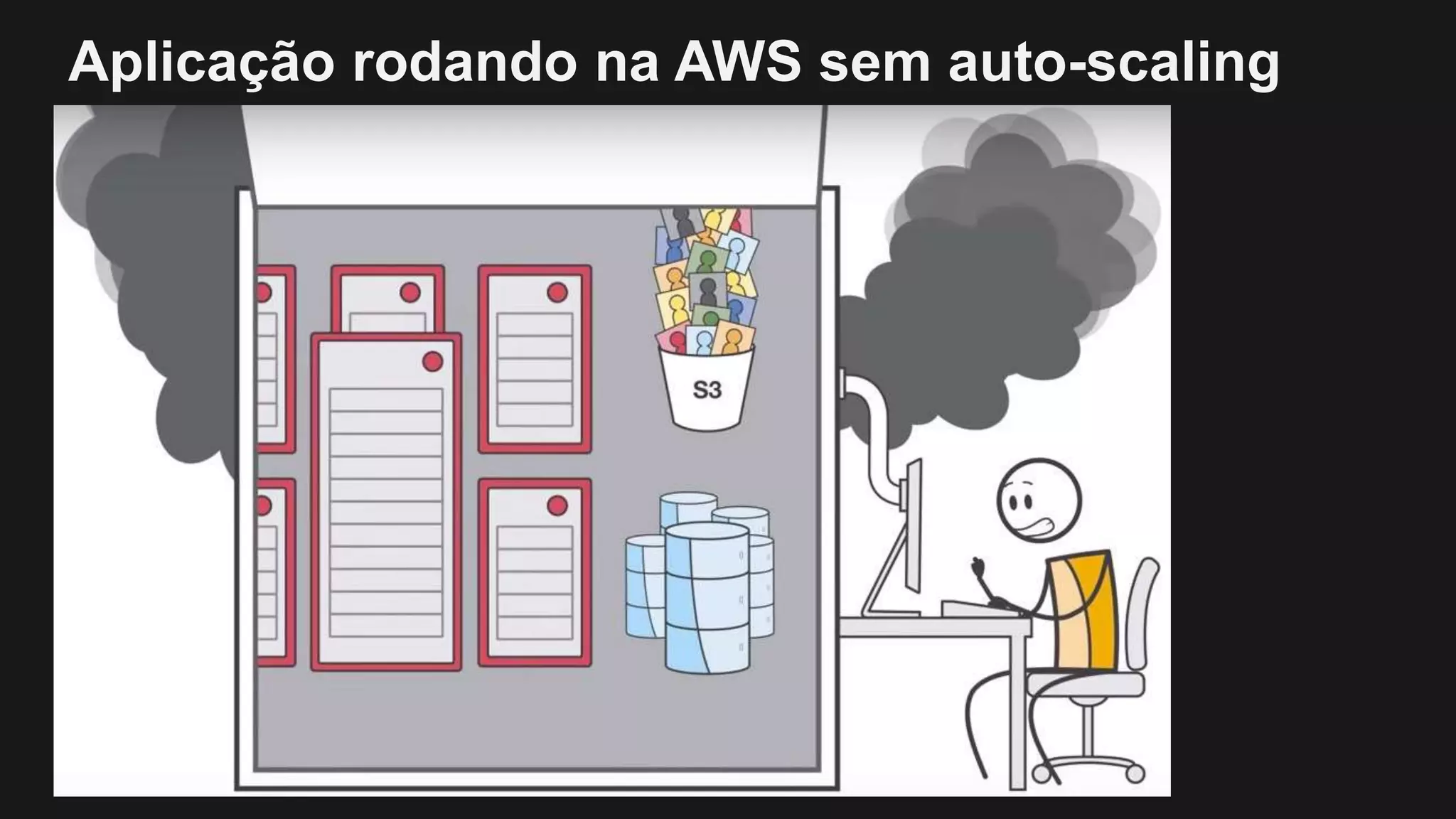

- 4. Aplicação rodando naAWS sem auto-scaling

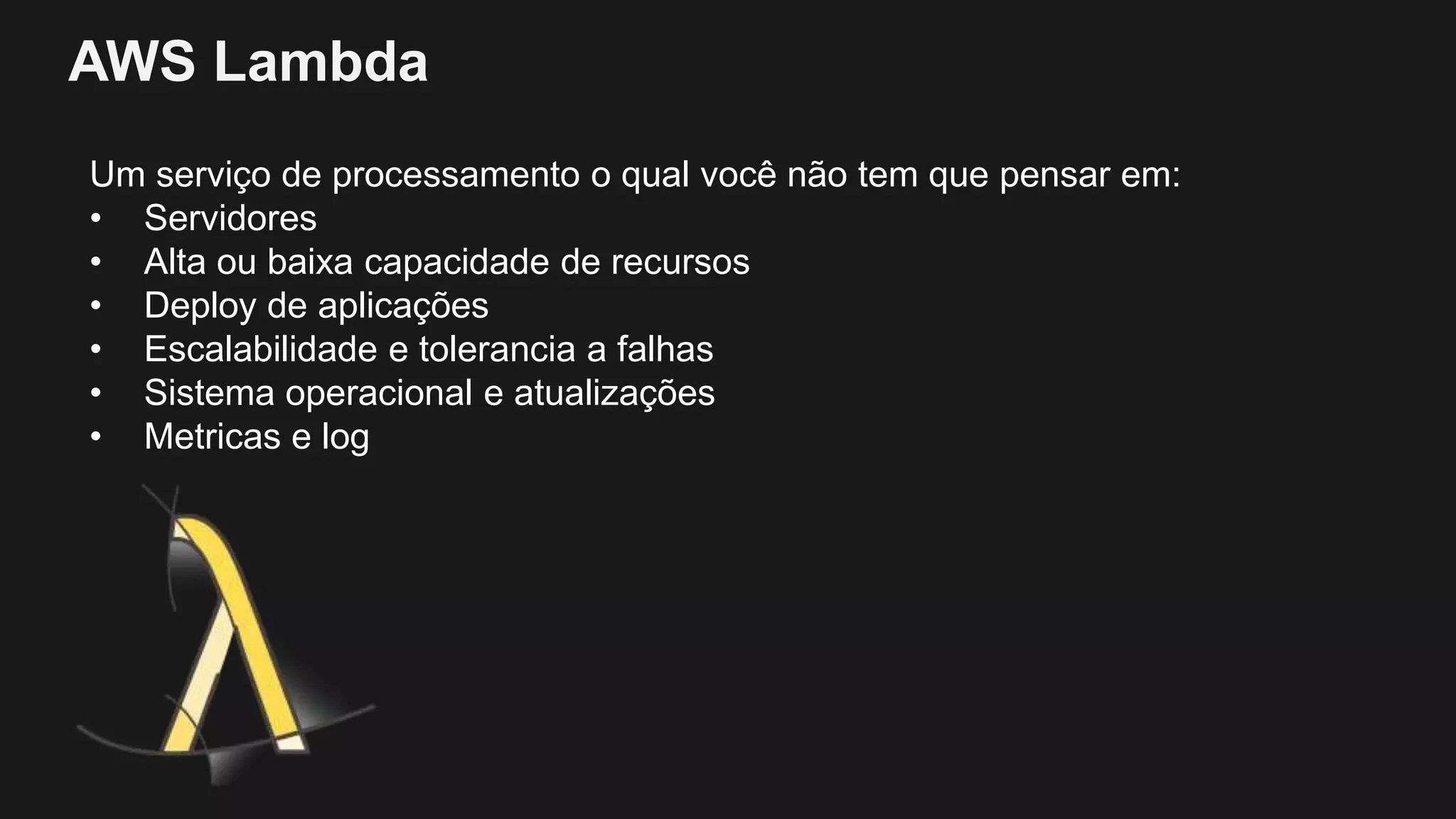

- 5. AWS Lambda Um serviçode processamento o qual você não tem que pensar em: • Servidores • Alta ou baixa capacidade de recursos • Deploy de aplicações • Escalabilidade e tolerancia a falhas • Sistema operacional e atualizações • Metricas e log

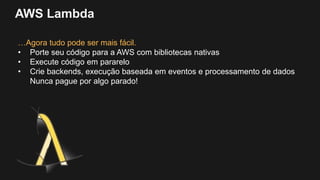

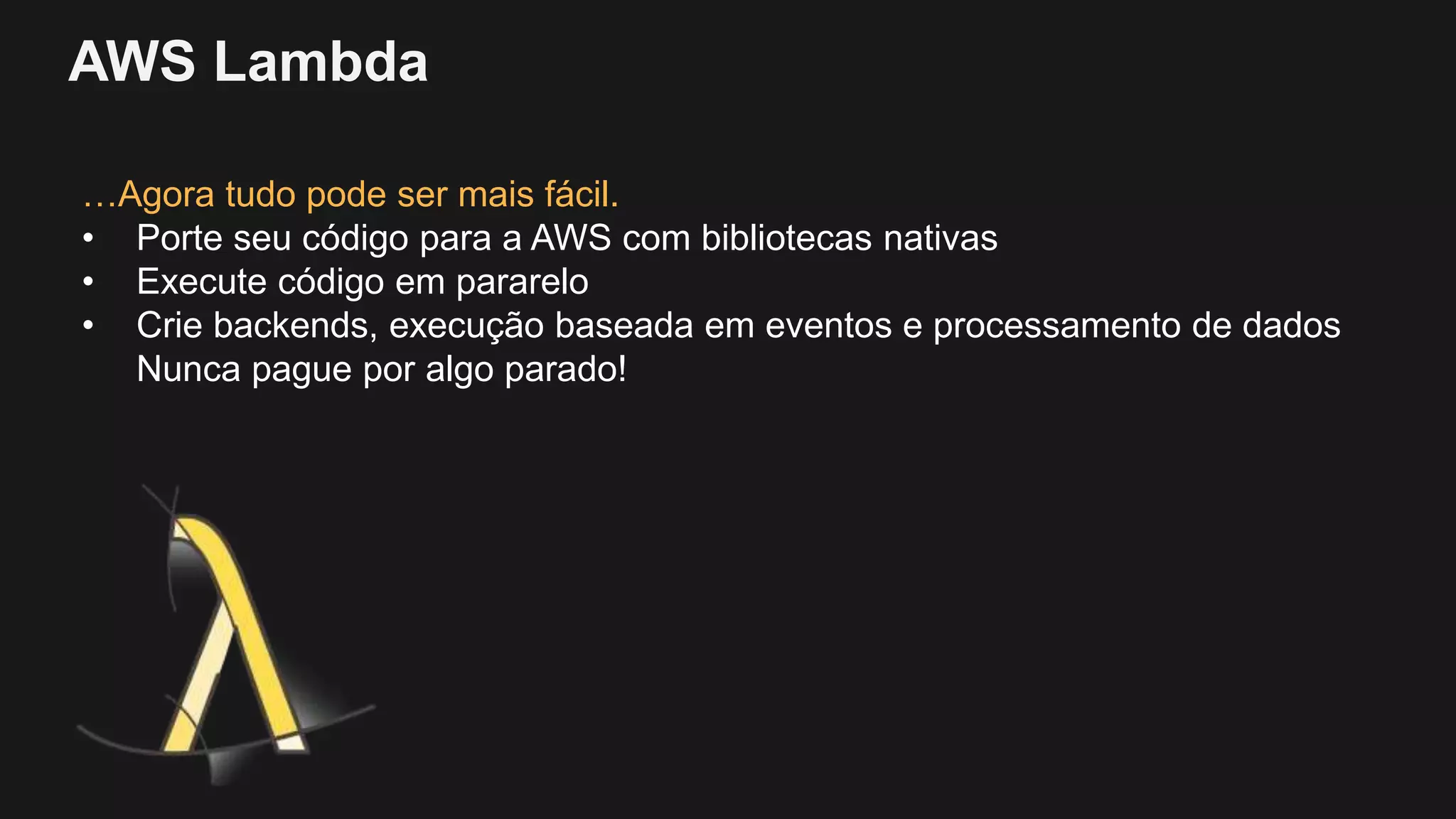

- 6. AWS Lambda …Agora tudopode ser mais fácil. • Porte seu código para a AWS com bibliotecas nativas • Execute código em pararelo • Crie backends, execução baseada em eventos e processamento de dados Nunca pague por algo parado!

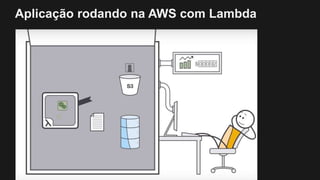

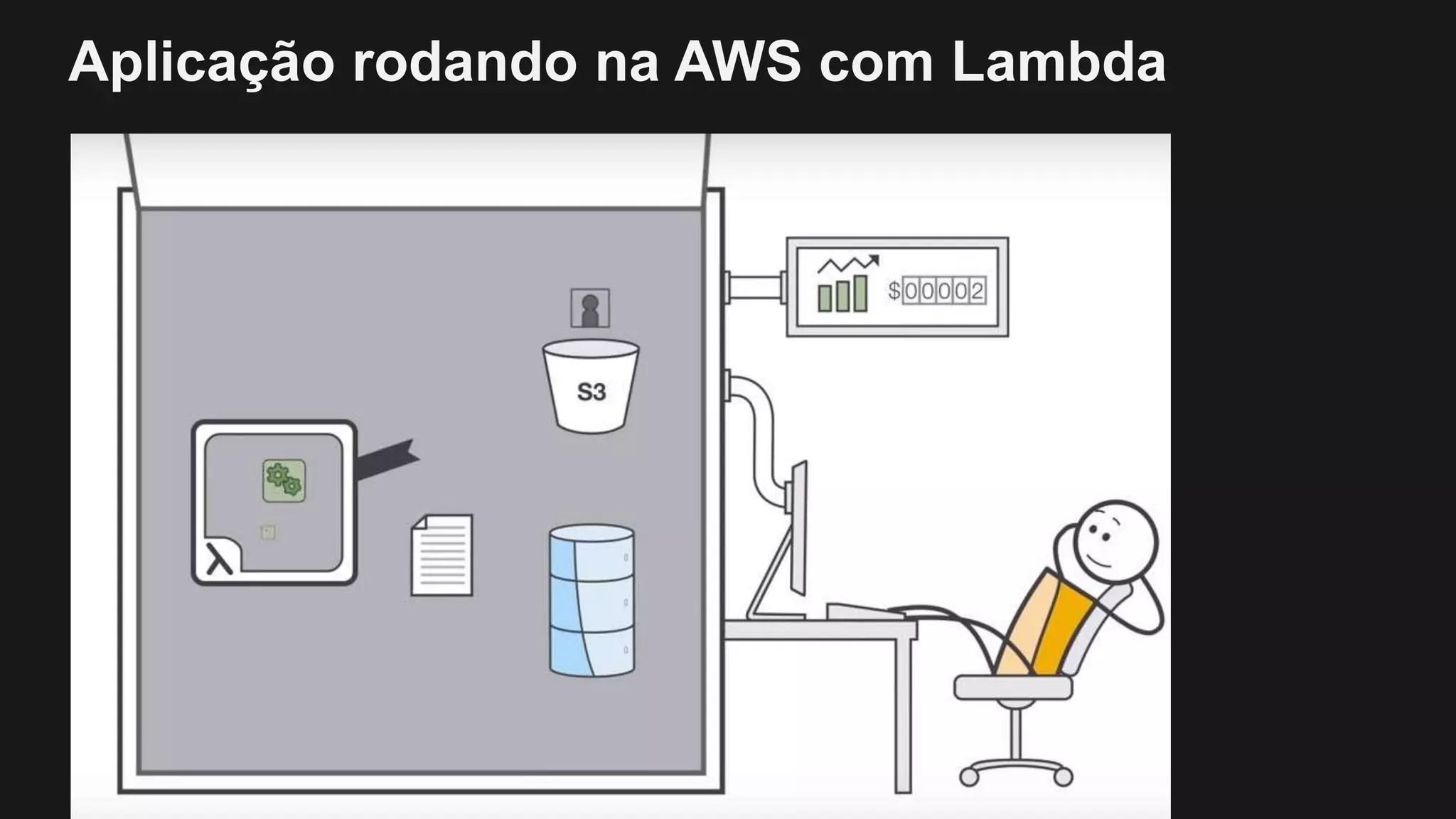

- 7. Aplicação rodando naAWS com Lambda
- 8.
- 9. AWS Lambda Serverless, event-drivencompute service microservice sem servidores

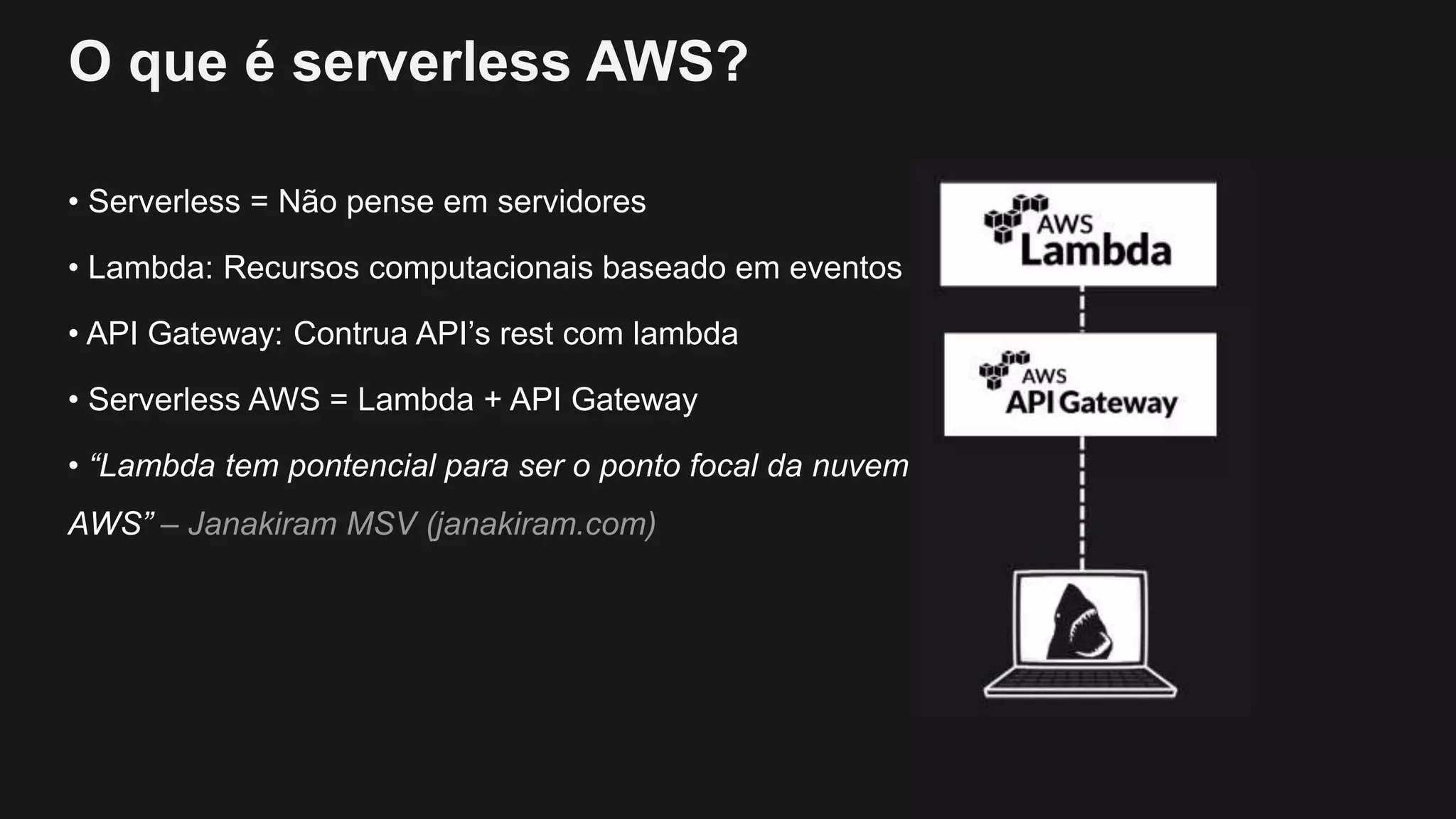

- 10. O que éserverless AWS? • Serverless = Não pense em servidores • Lambda: Recursos computacionais baseado em eventos • API Gateway: Contrua API’s rest com lambda • Serverless AWS = Lambda + API Gateway • “Lambda tem pontencial para ser o ponto focal da nuvem AWS” – Janakiram MSV (janakiram.com)
- 11.

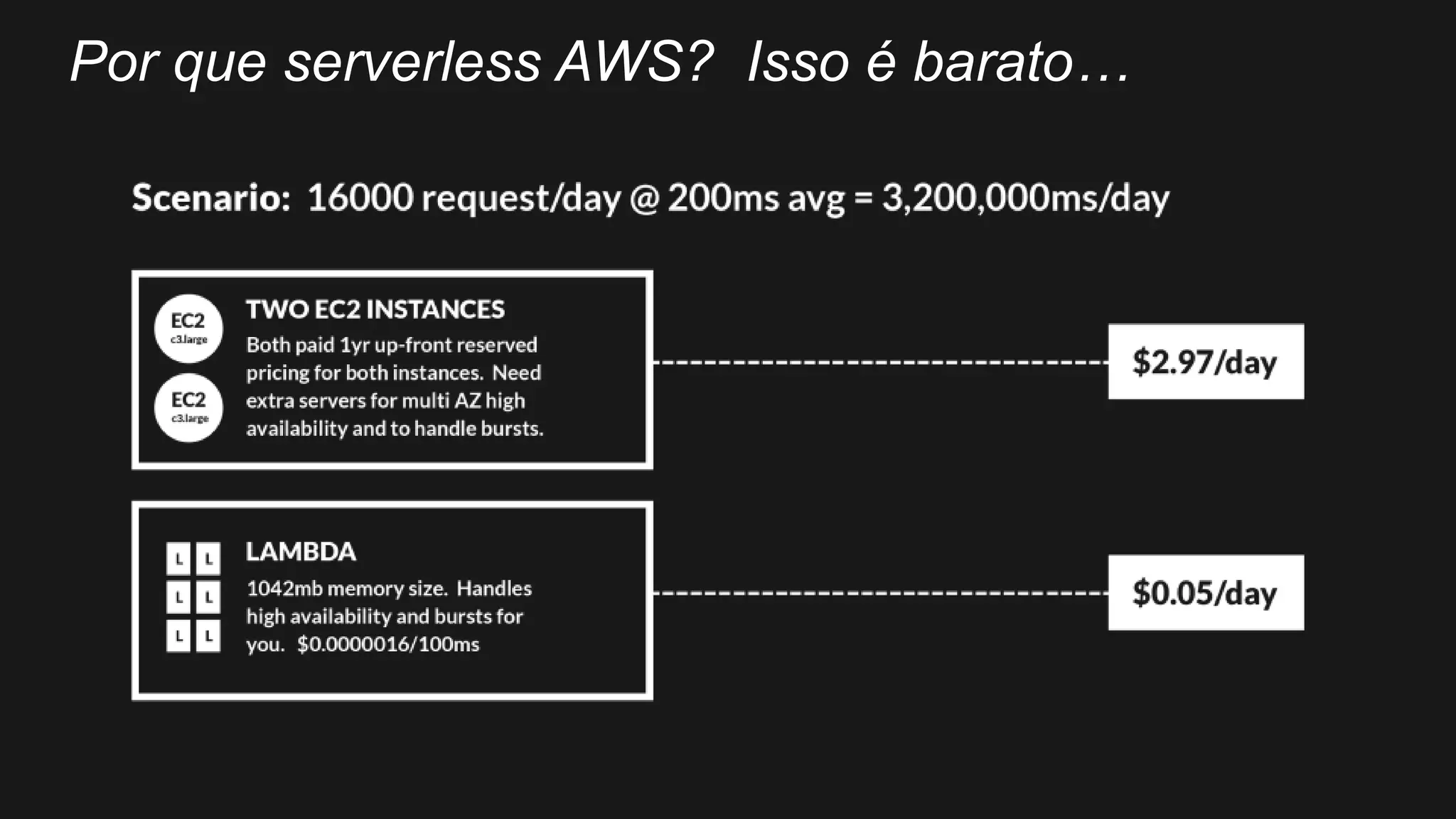

- 12. Por que serverlessAWS? Isso é barato…

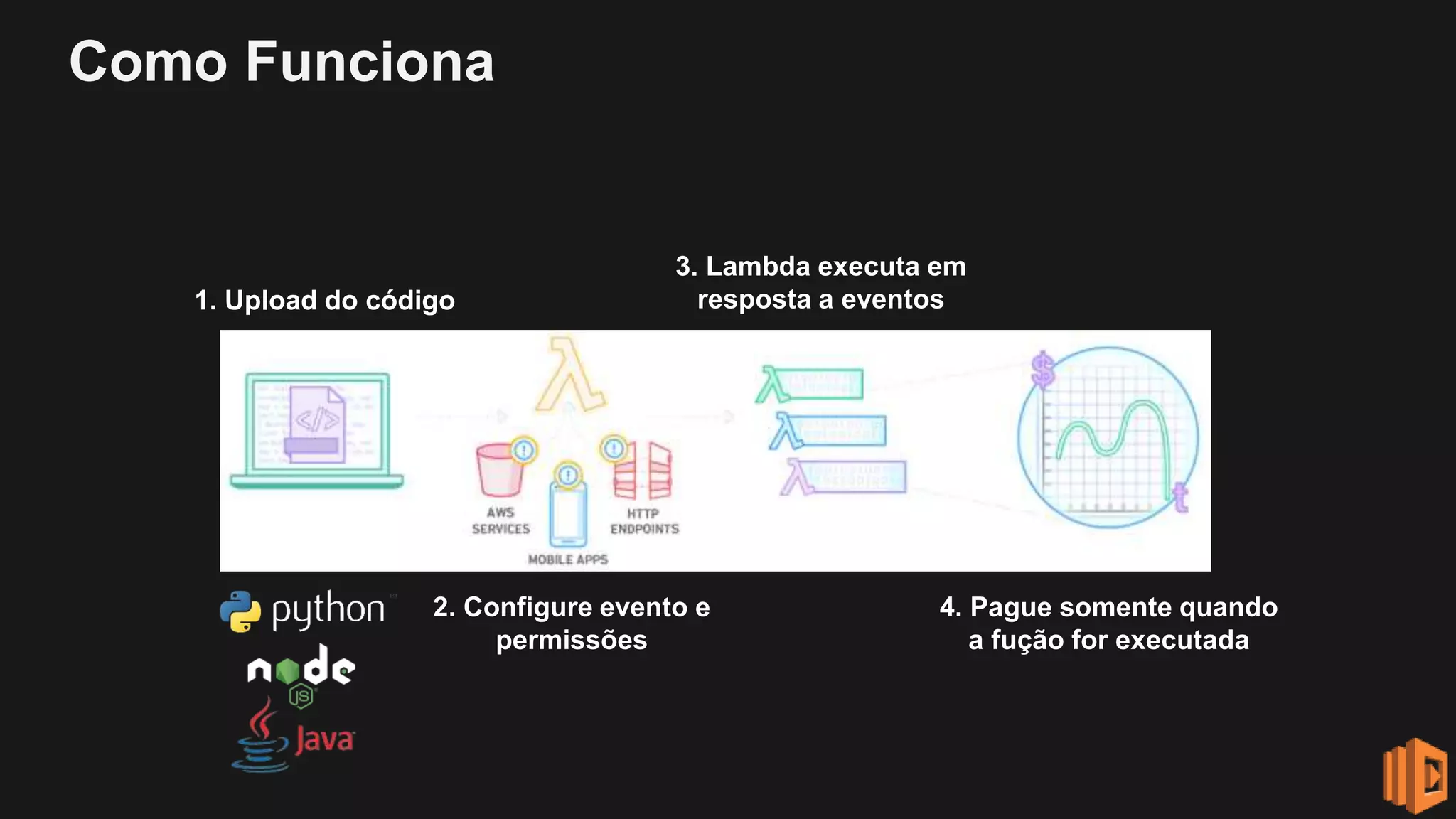

- 13. Como Funciona 1. Uploaddo código 2. Configure evento e permissões 3. Lambda executa em resposta a eventos 4. Pague somente quando a fução for executada
- 14.

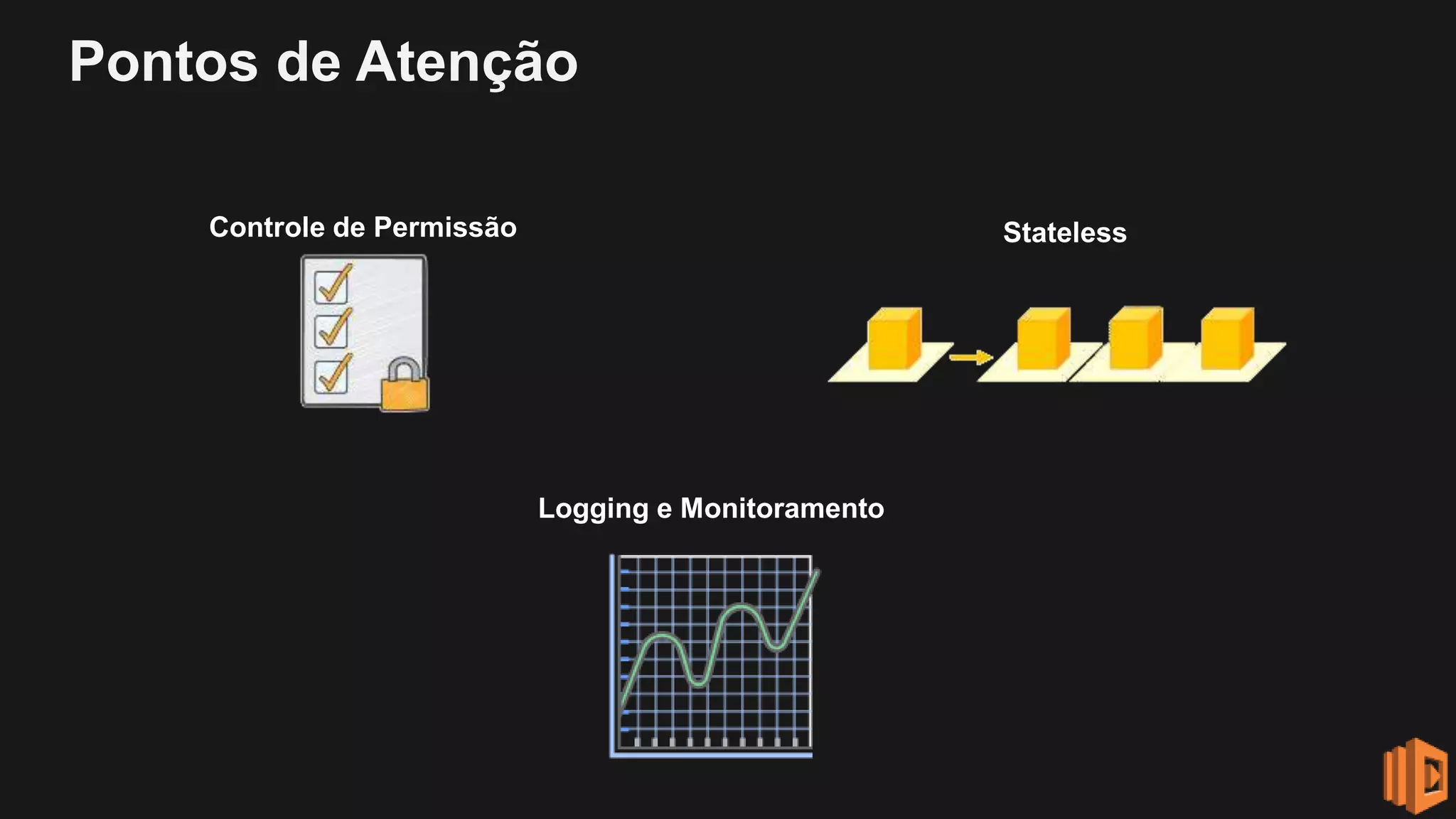

- 15. Pontos de Atenção Controlede Permissão Stateless Logging e Monitoramento

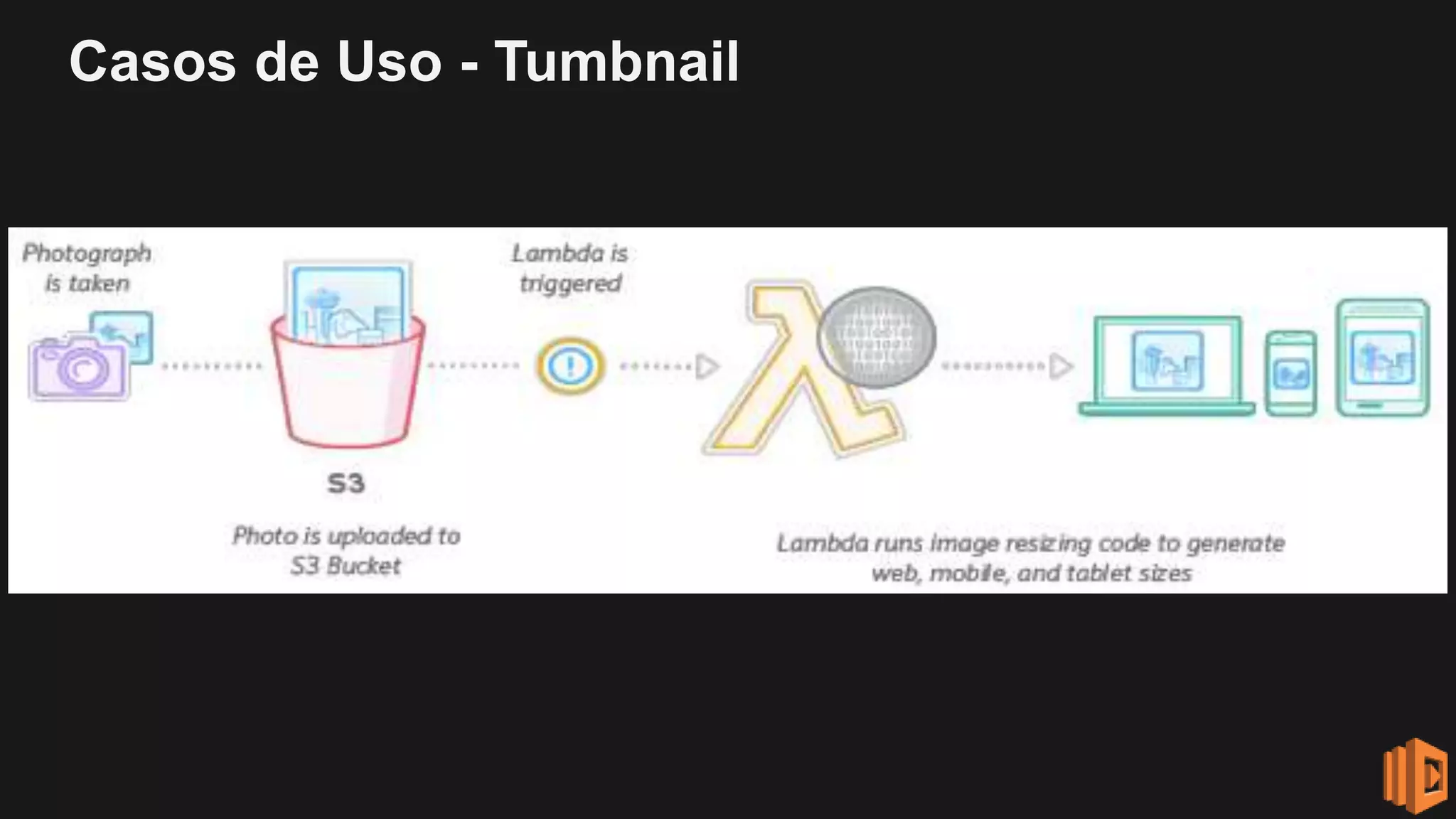

- 16. Casos de Uso- Tumbnail

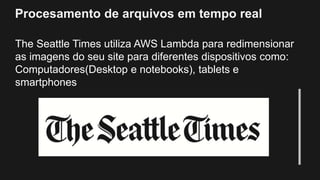

- 17. Procesamento de arquivosem tempo real The Seattle Times utiliza AWS Lambda para redimensionar as imagens do seu site para diferentes dispositivos como: Computadores(Desktop e notebooks), tablets e smartphones

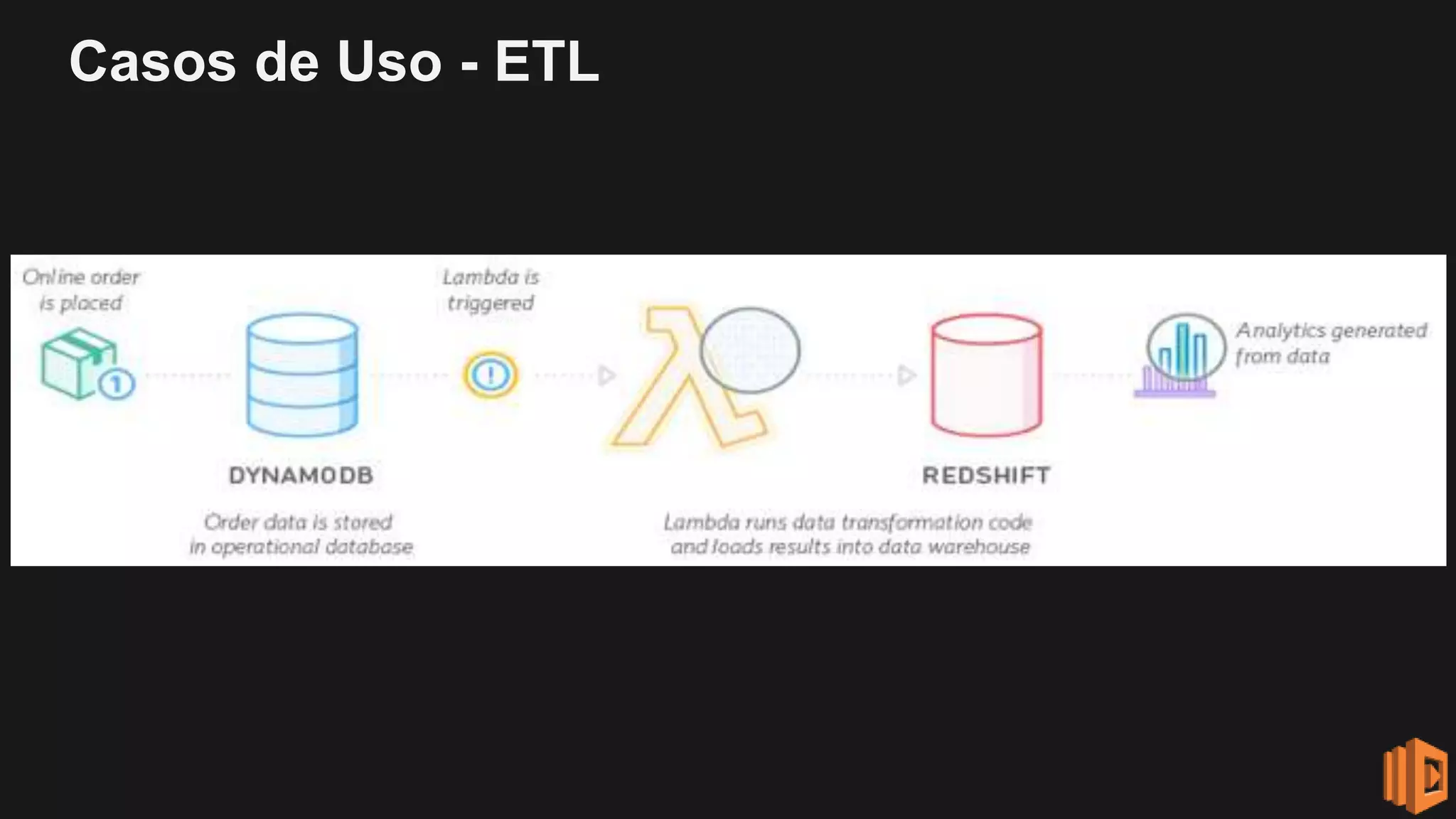

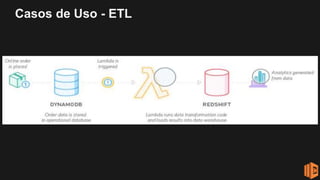

- 18. Casos de Uso- ETL

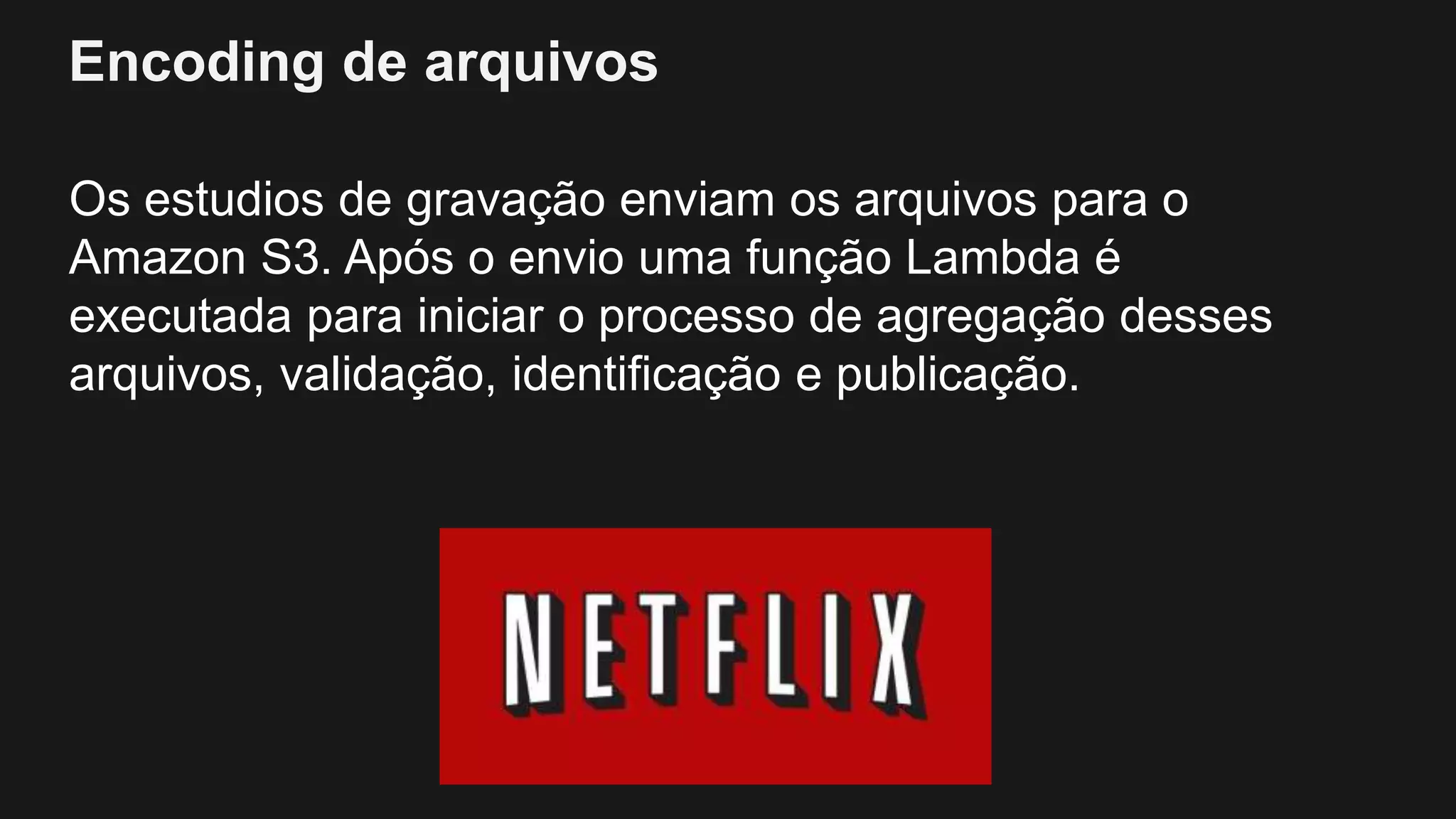

- 19. Encoding de arquivos Osestudios de gravação enviam os arquivos para o Amazon S3. Após o envio uma função Lambda é executada para iniciar o processo de agregação desses arquivos, validação, identificação e publicação.

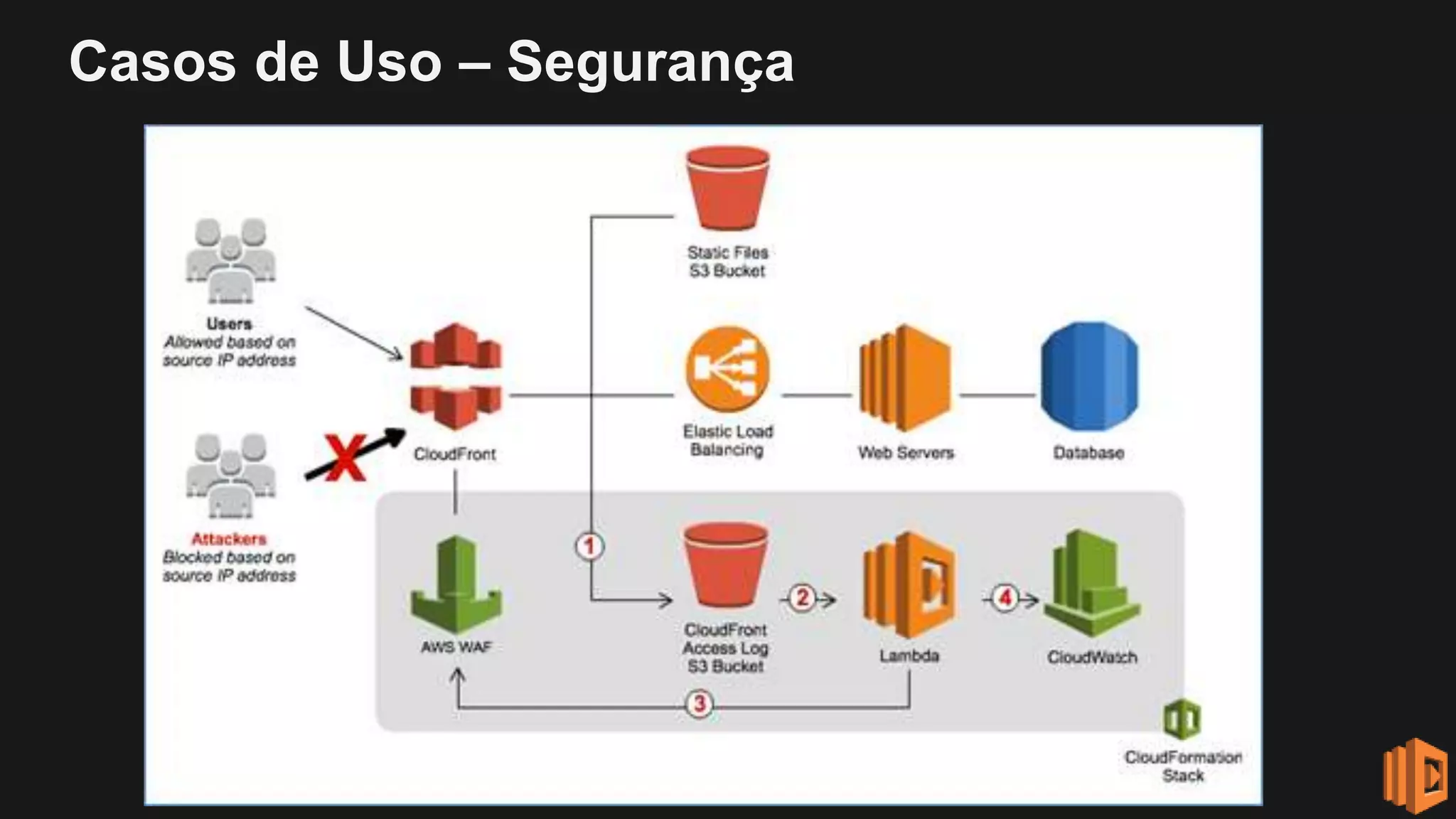

- 20. Casos de Uso– Segurança
- 21.

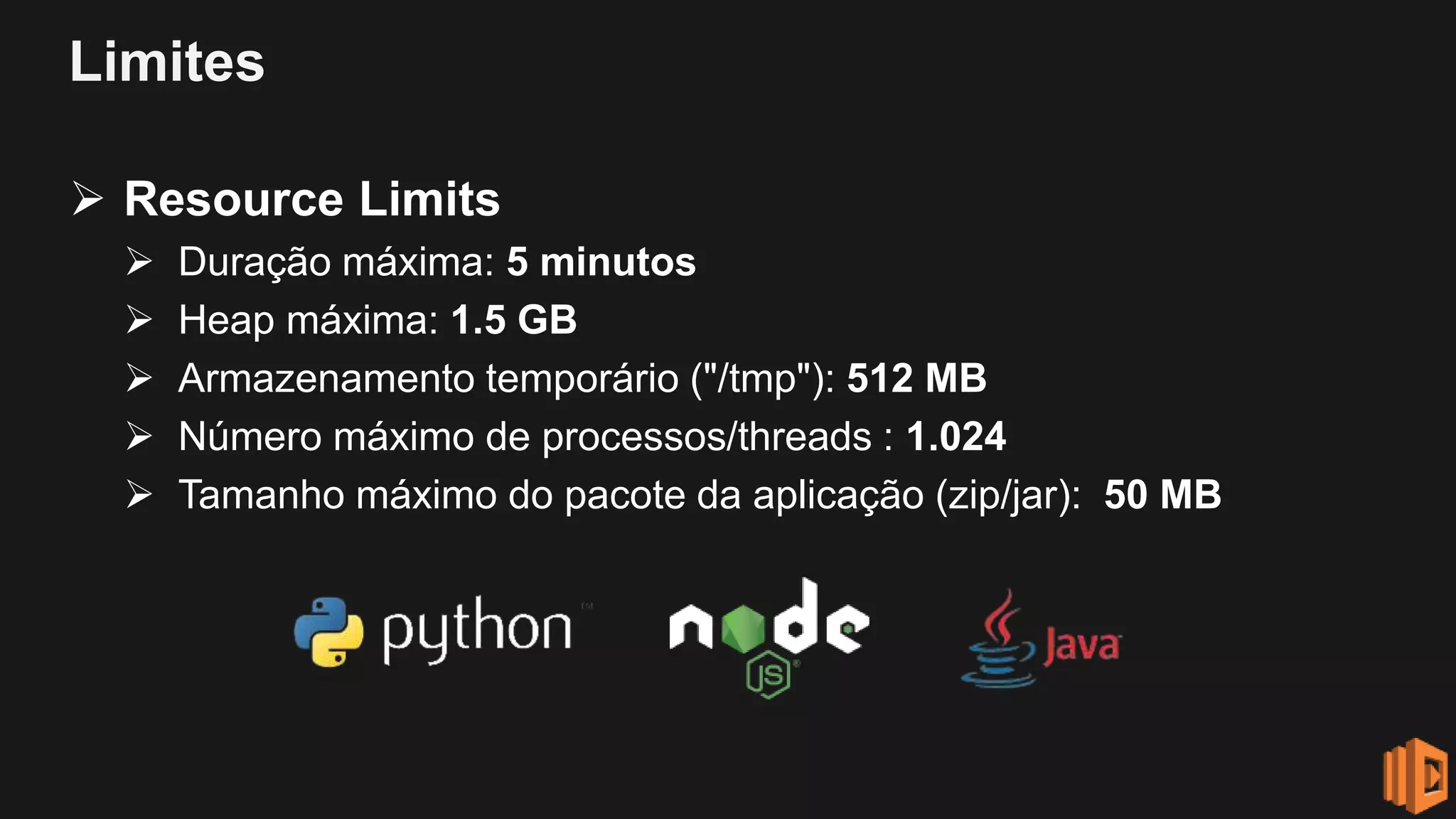

- 22. Limites Resource Limits Duração máxima: 5 minutos Heap máxima: 1.5 GB Armazenamento temporário ("/tmp"): 512 MB Número máximo de processos/threads : 1.024 Tamanho máximo do pacote da aplicação (zip/jar): 50 MB

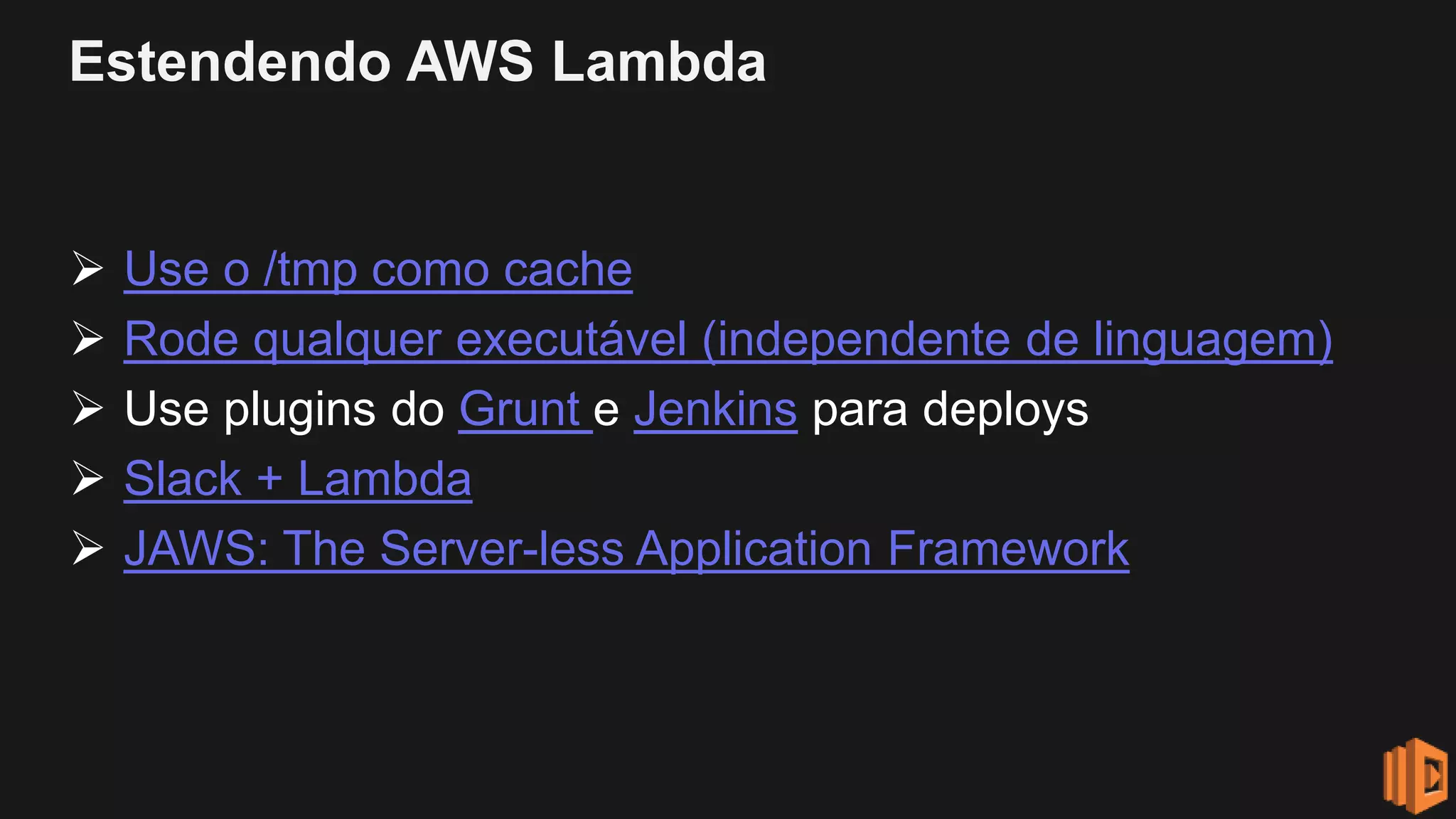

- 23. Estendendo AWS Lambda Use o /tmp como cache Rode qualquer executável (independente de linguagem) Use plugins do Grunt e Jenkins para deploys Slack + Lambda JAWS: The Server-less Application Framework
- 24.

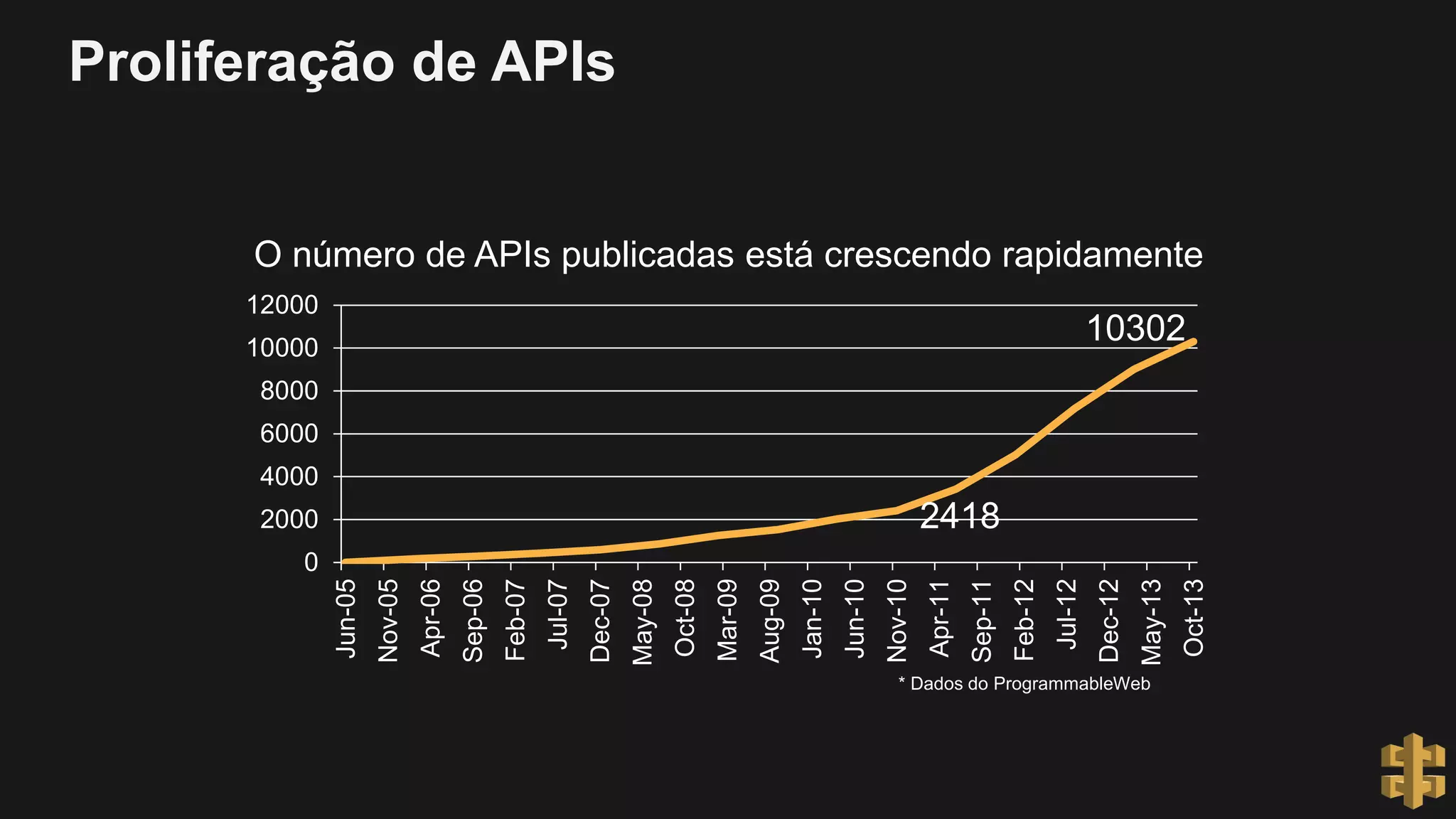

- 25. Proliferação de APIs Onúmero de APIs publicadas está crescendo rapidamente 2418 10302 0 2000 4000 6000 8000 10000 12000 Jun-05 Nov-05 Apr-06 Sep-06 Feb-07 Jul-07 Dec-07 May-08 Oct-08 Mar-09 Aug-09 Jan-10 Jun-10 Nov-10 Apr-11 Sep-11 Feb-12 Jul-12 Dec-12 May-13 Oct-13 * Dados do ProgrammableWeb
- 26. Na AWS, nósrodamos muitas APIs …Com o passar do tempo, nós aprendemos algumas lições

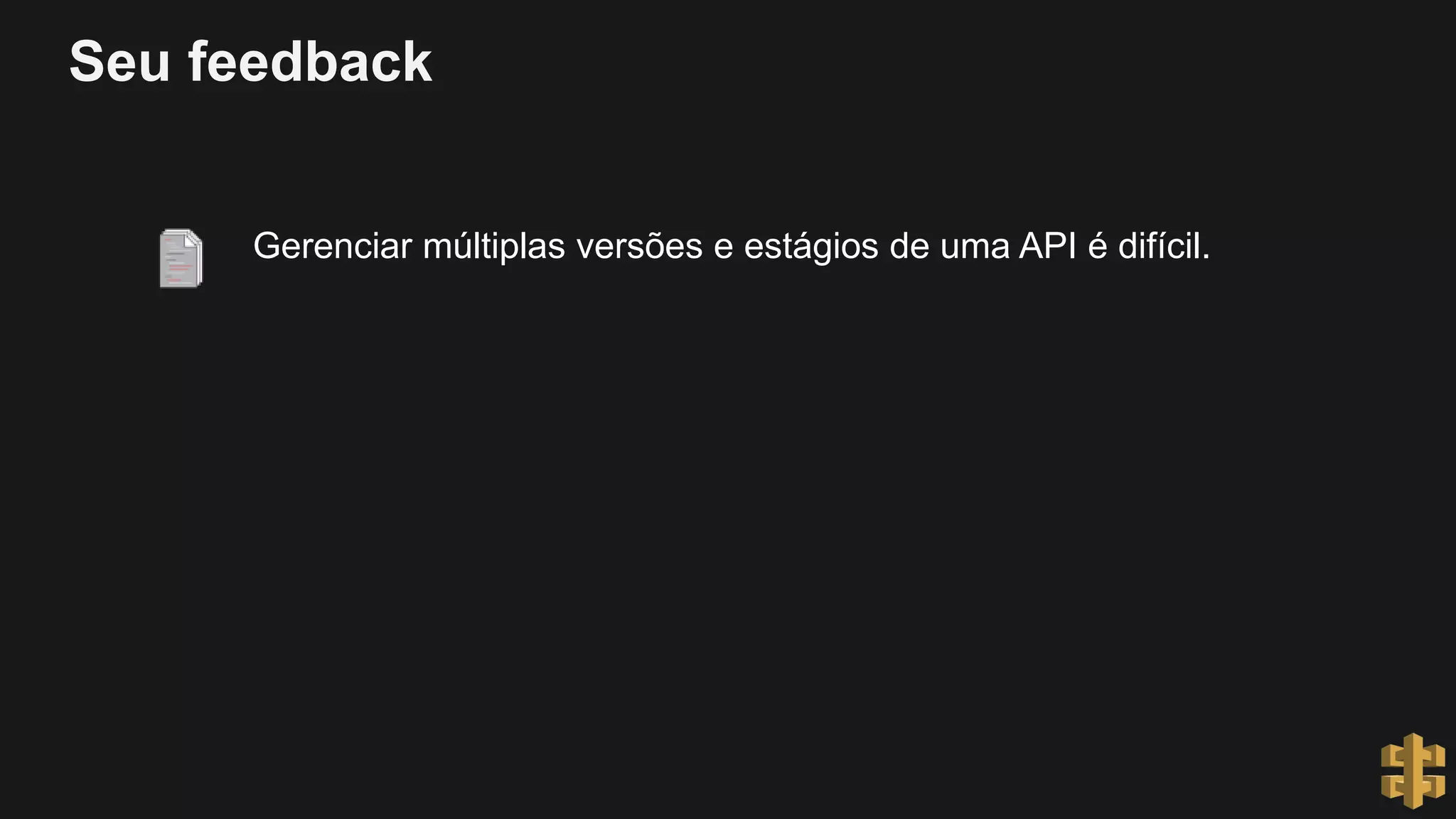

- 27. Seu feedback Gerenciar múltiplasversões e estágios de uma API é difícil.

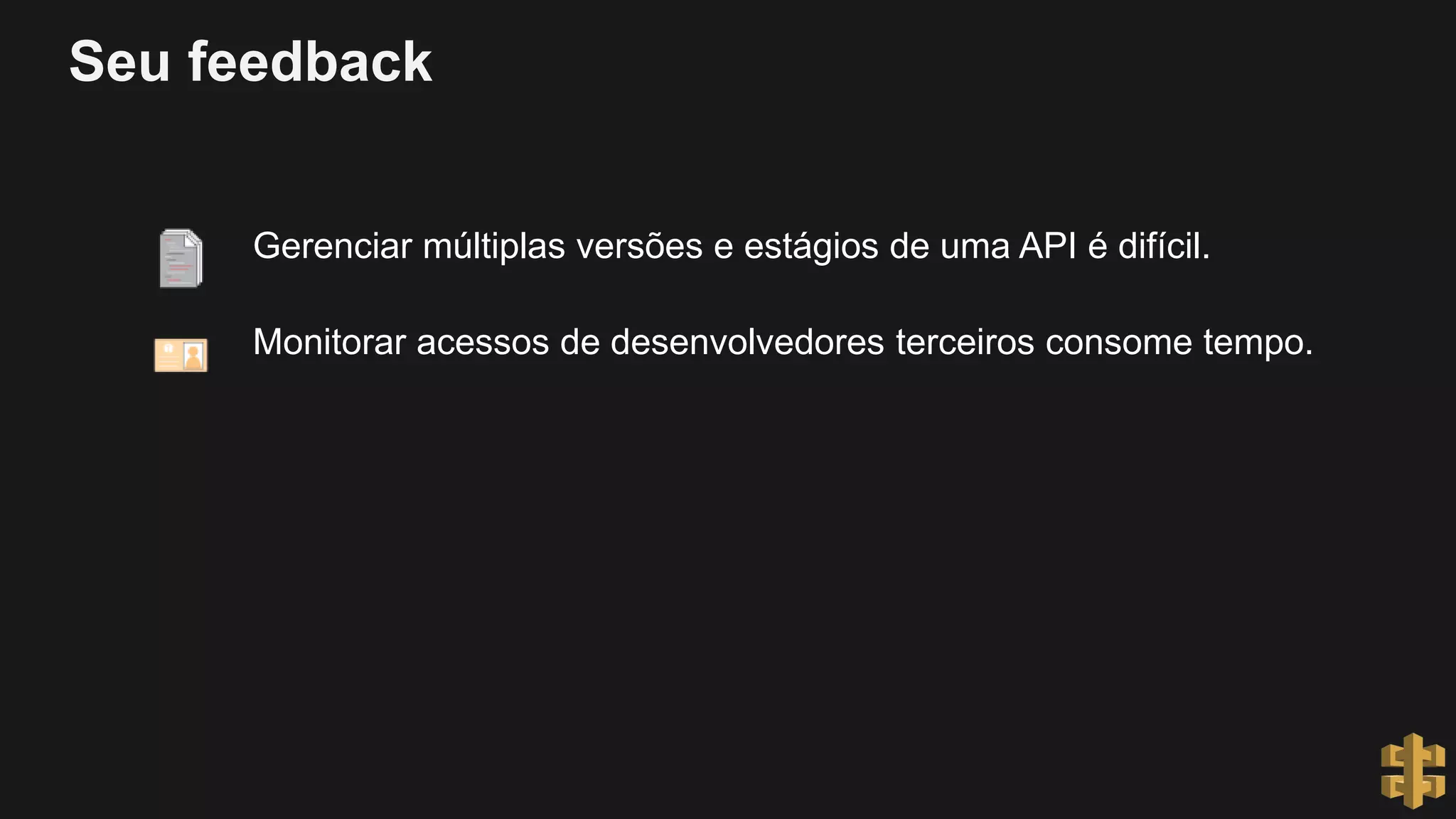

- 28. Seu feedback Gerenciar múltiplasversões e estágios de uma API é difícil. Monitorar acessos de desenvolvedores terceiros consome tempo.

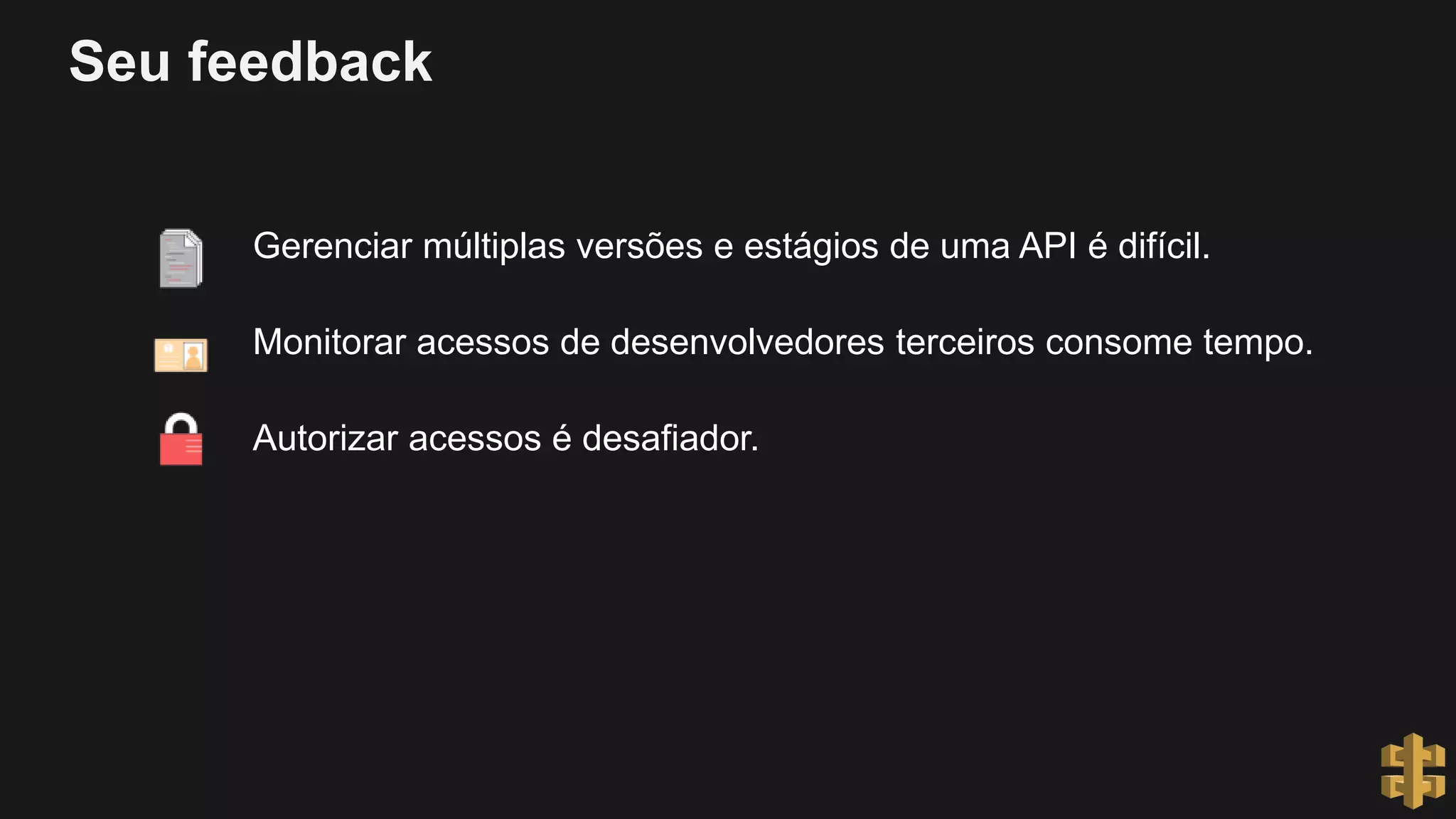

- 29. Seu feedback Gerenciar múltiplasversões e estágios de uma API é difícil. Monitorar acessos de desenvolvedores terceiros consome tempo. Autorizar acessos é desafiador.

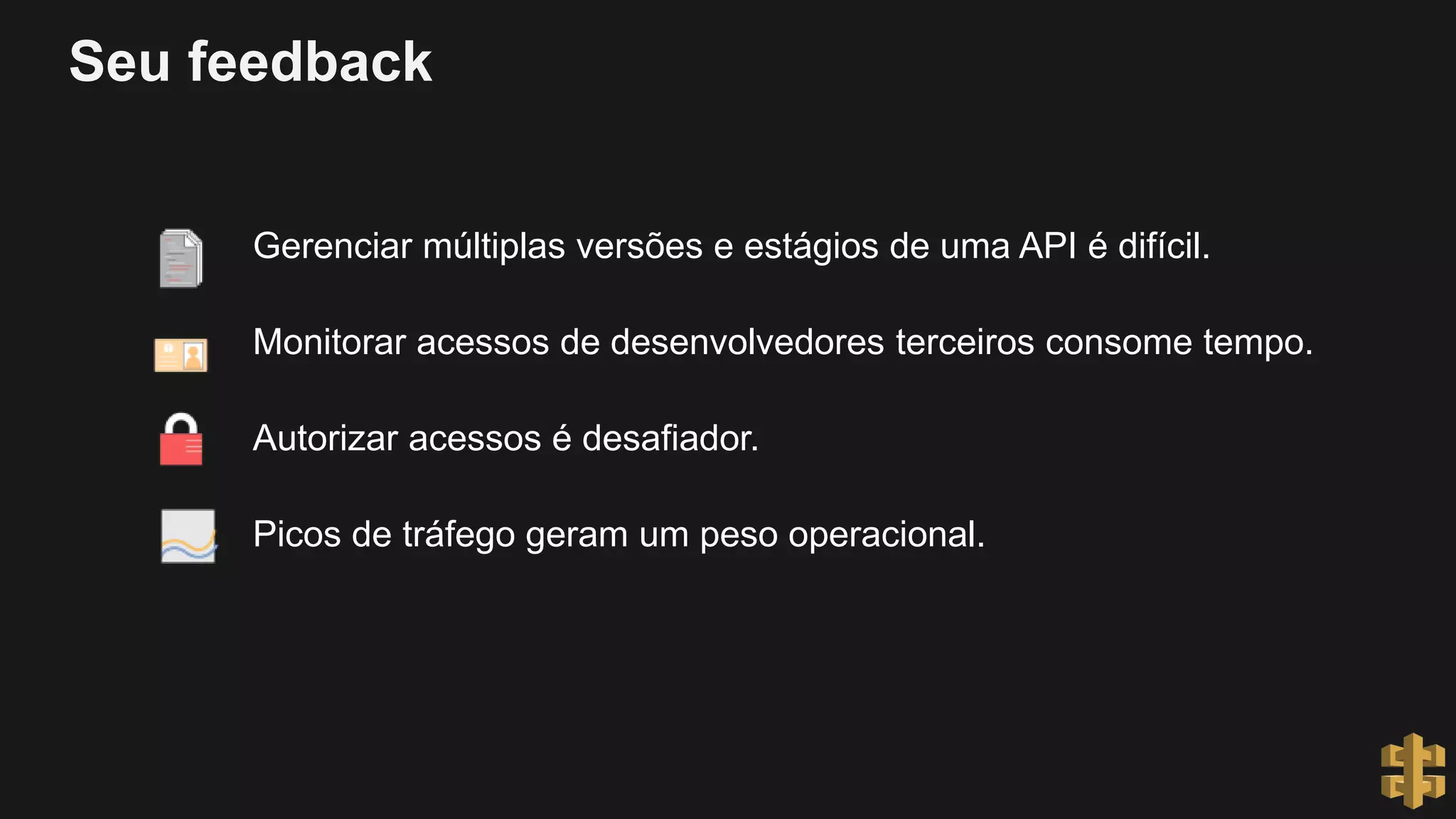

- 30. Seu feedback Gerenciar múltiplasversões e estágios de uma API é difícil. Monitorar acessos de desenvolvedores terceiros consome tempo. Autorizar acessos é desafiador. Picos de tráfego geram um peso operacional.

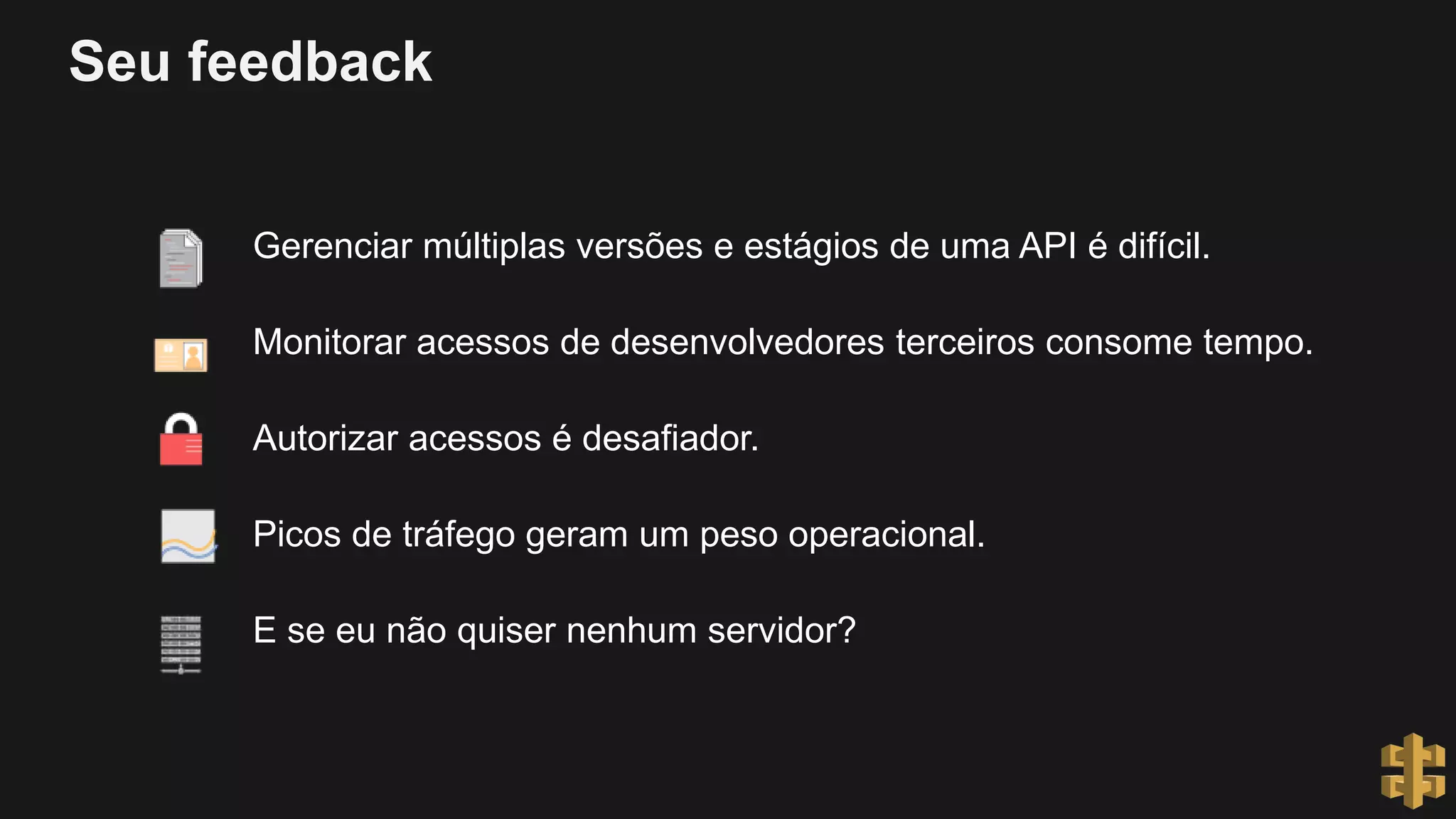

- 31. Seu feedback Gerenciar múltiplasversões e estágios de uma API é difícil. Monitorar acessos de desenvolvedores terceiros consome tempo. Autorizar acessos é desafiador. Picos de tráfego geram um peso operacional. E se eu não quiser nenhum servidor?

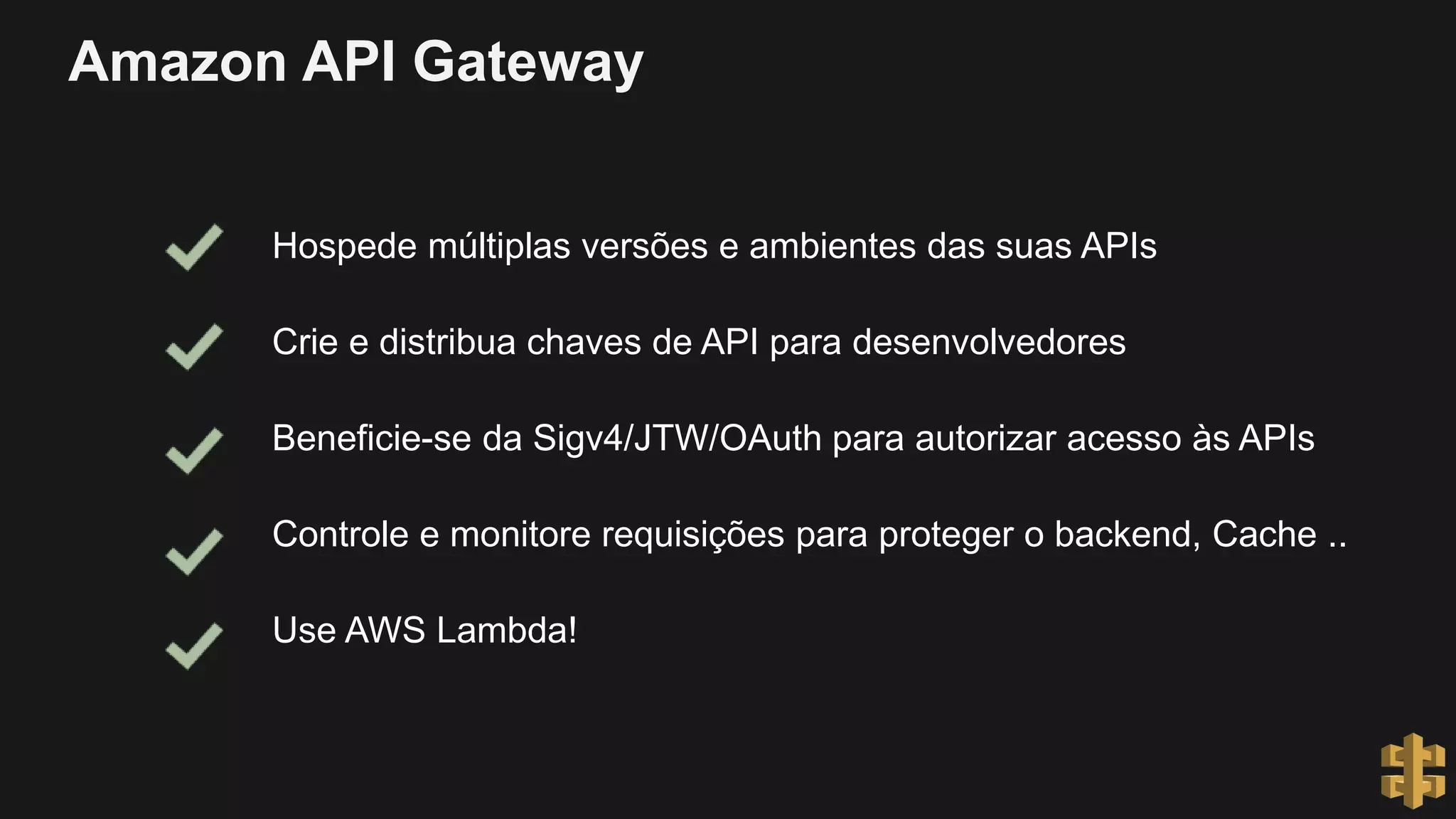

- 32. Amazon API Gateway Hospedemúltiplas versões e ambientes das suas APIs Crie e distribua chaves de API para desenvolvedores Beneficie-se da Sigv4/JTW/OAuth para autorizar acesso às APIs Controle e monitore requisições para proteger o backend, Cache .. Use AWS Lambda!

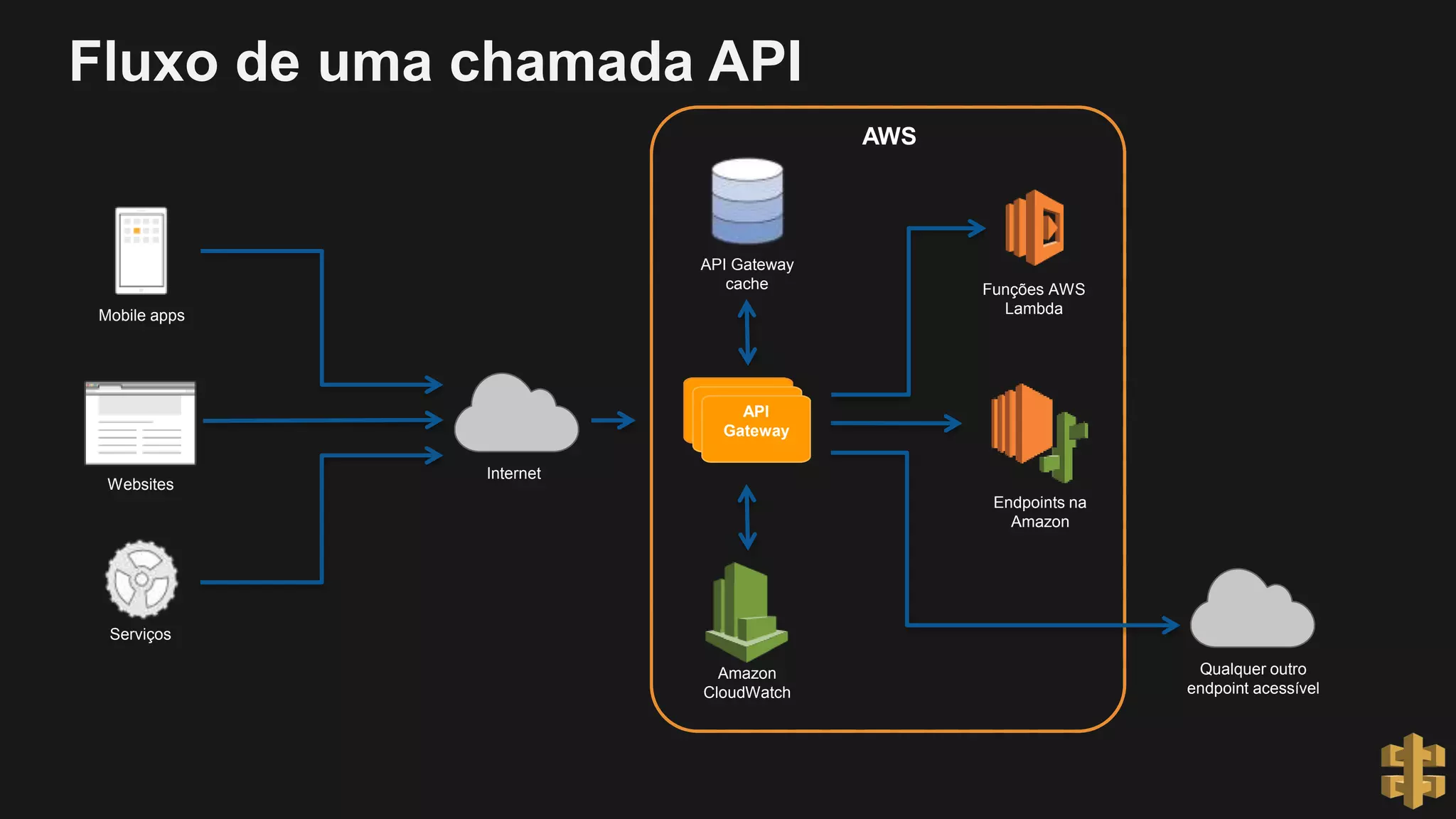

- 33. Fluxo de umachamada API Internet Mobile apps Websites Serviços API Gateway Funções AWS Lambda AWS API Gateway cache Endpoints na Amazon Qualquer outro endpoint acessível Amazon CloudWatch

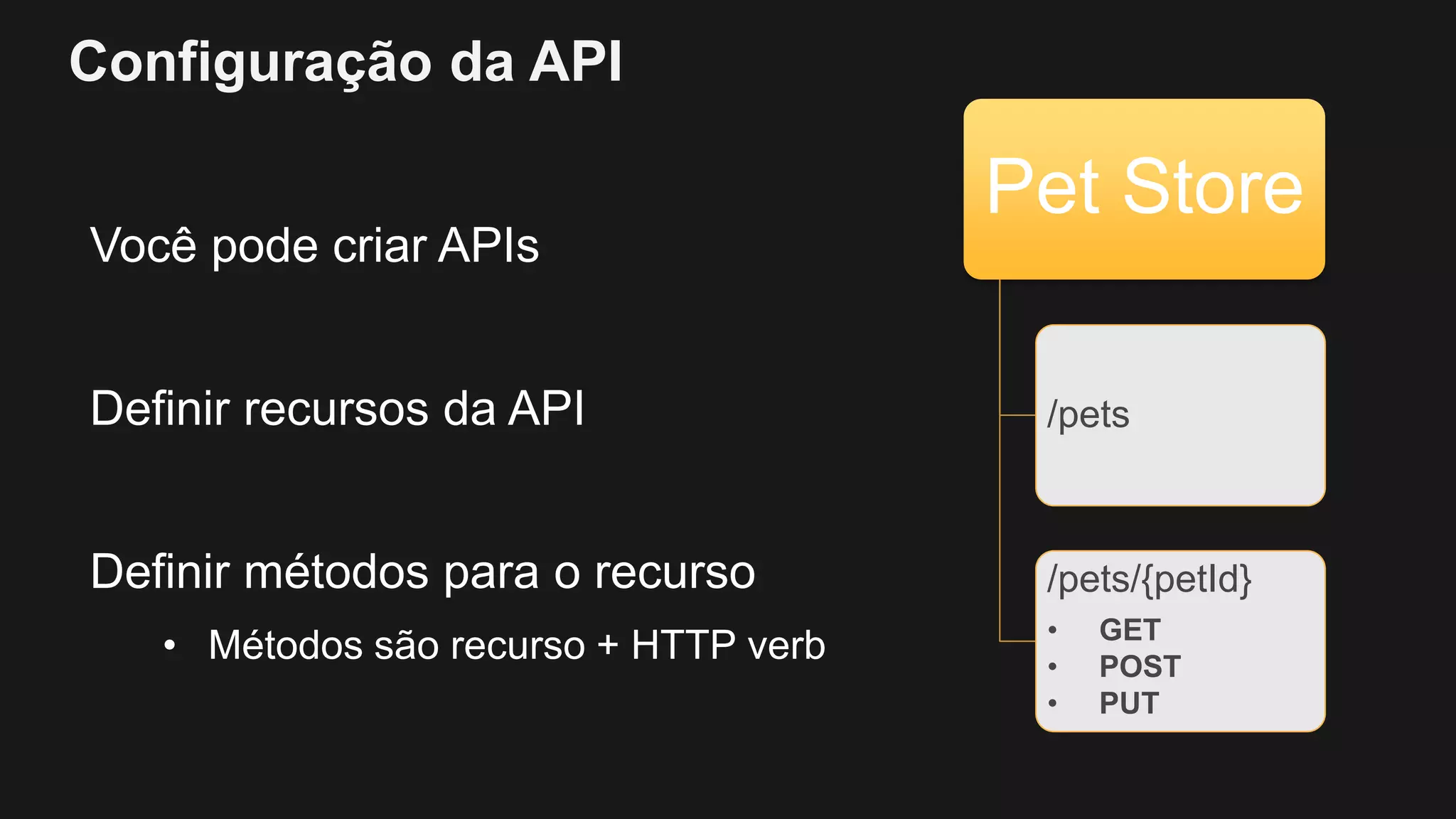

- 34. Configuração da API Vocêpode criar APIs Definir recursos da API Definir métodos para o recurso • Métodos são recurso + HTTP verb Pet Store /pets /pets/{petId} • GET • POST • PUT

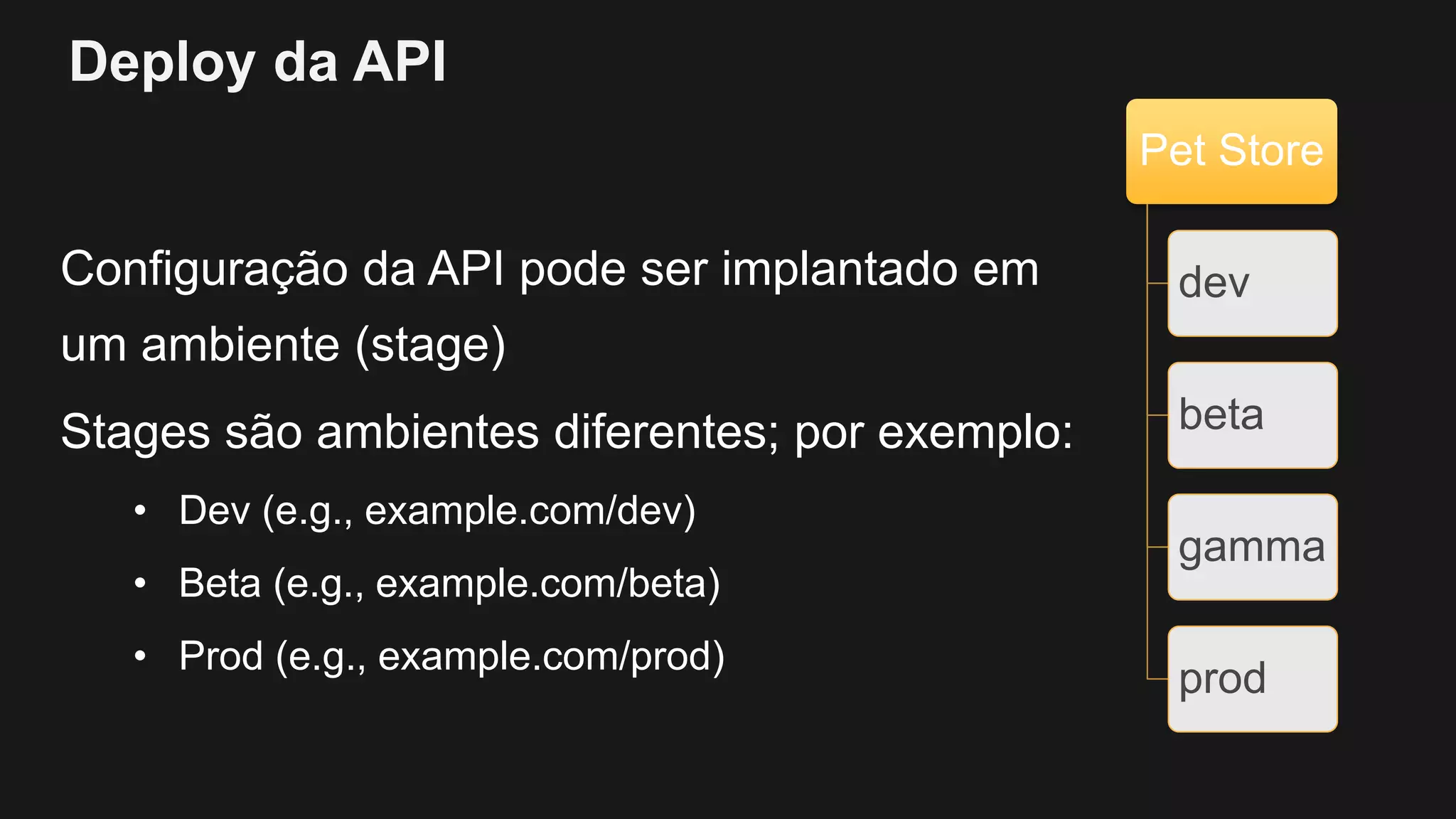

- 35. Deploy da API Configuraçãoda API pode ser implantado em um ambiente (stage) Stages são ambientes diferentes; por exemplo: • Dev (e.g., example.com/dev) • Beta (e.g., example.com/beta) • Prod (e.g., example.com/prod) Pet Store dev beta gamma prod

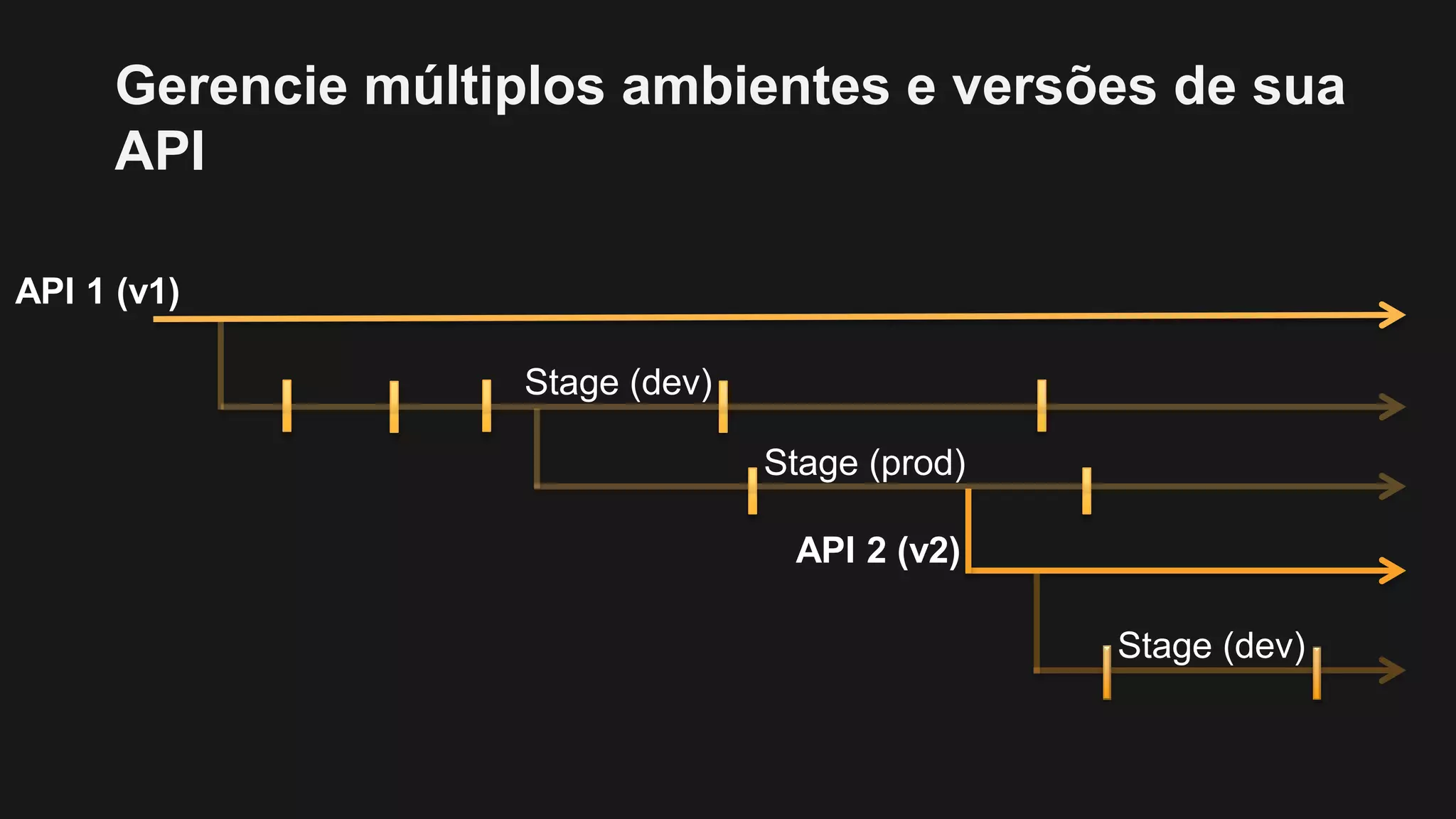

- 36. Gerencie múltiplos ambientese versões de sua API API 1 (v1) Stage (dev) Stage (prod) API 2 (v2) Stage (dev)

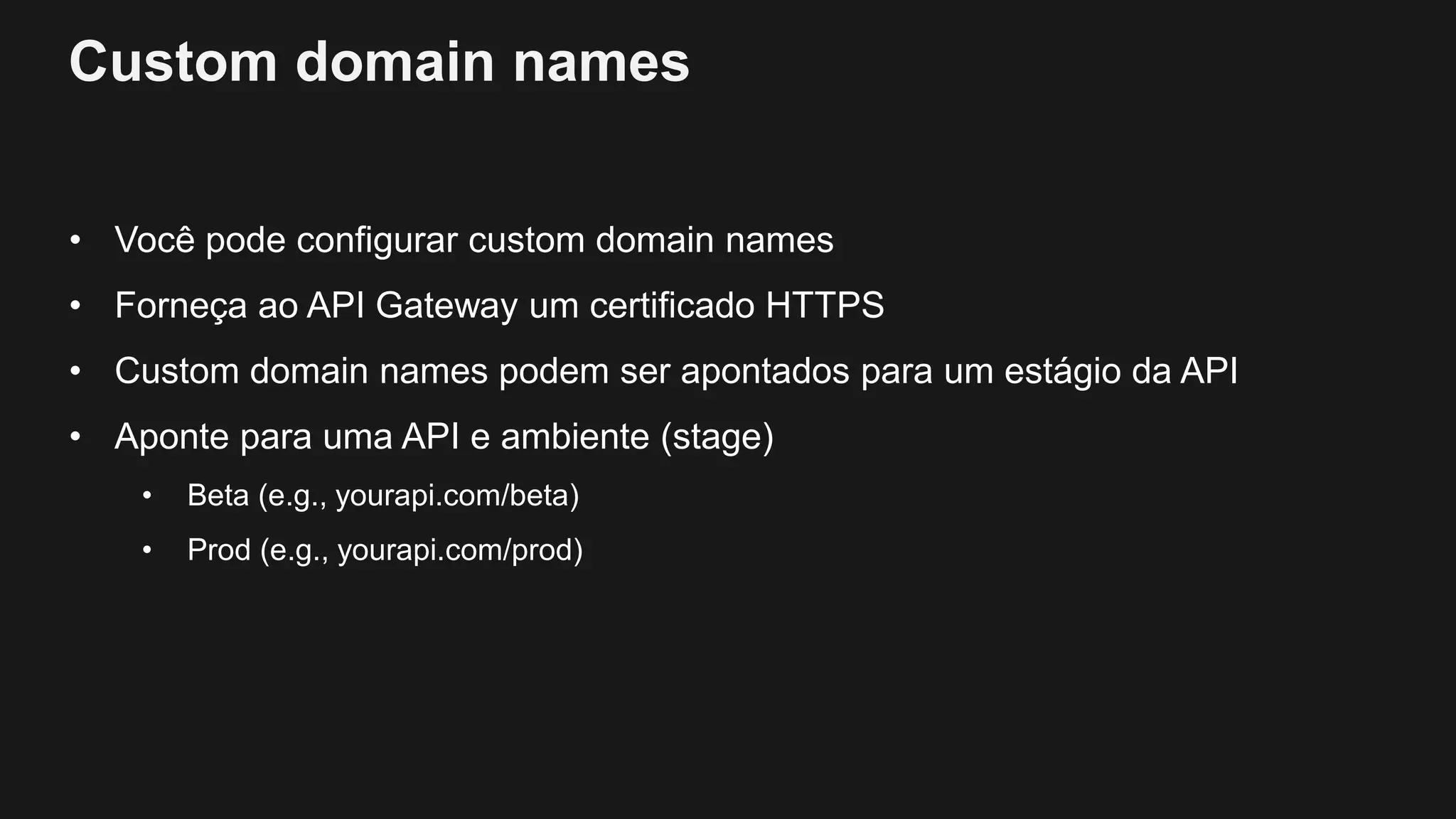

- 37. Custom domain names •Você pode configurar custom domain names • Forneça ao API Gateway um certificado HTTPS • Custom domain names podem ser apontados para um estágio da API • Aponte para uma API e ambiente (stage) • Beta (e.g., yourapi.com/beta) • Prod (e.g., yourapi.com/prod)

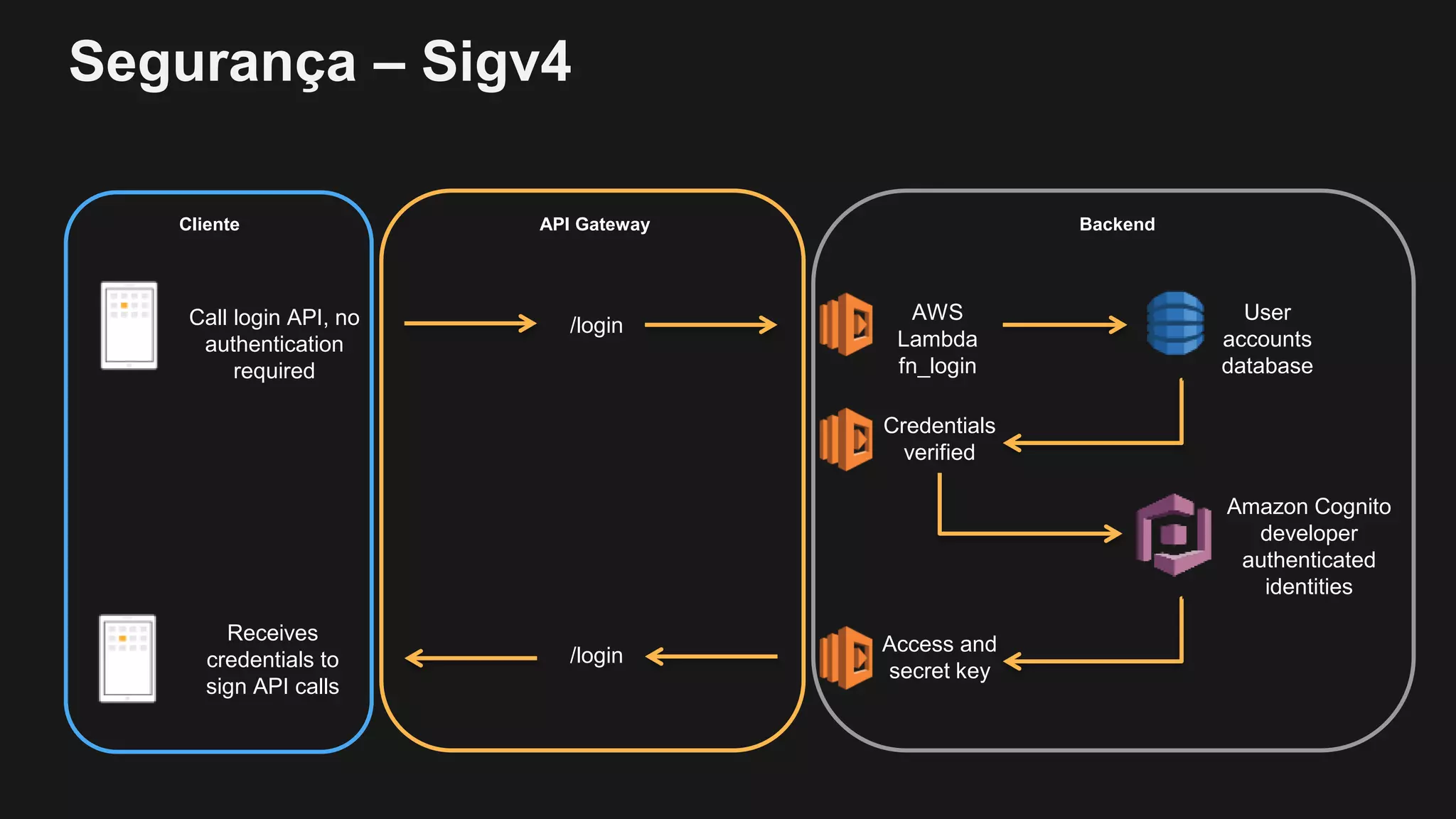

- 38. Segurança – Sigv4 Calllogin API, no authentication required Cliente API Gateway Backend /login AWS Lambda fn_login User accounts database Credentials verified Amazon Cognito developer authenticated identities Access and secret key /login Receives credentials to sign API calls

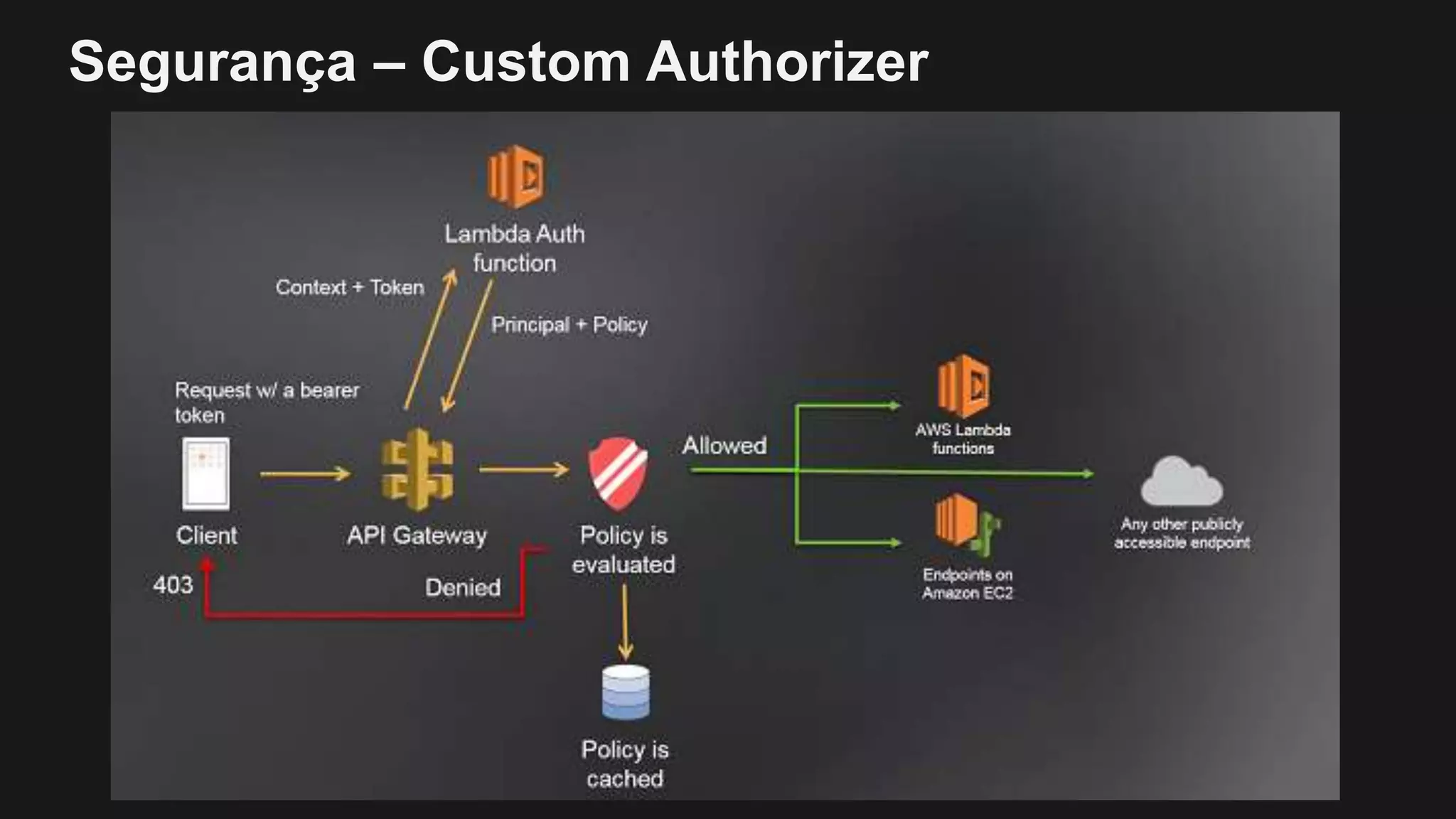

- 39. Segurança – CustomAuthorizer
- 40.

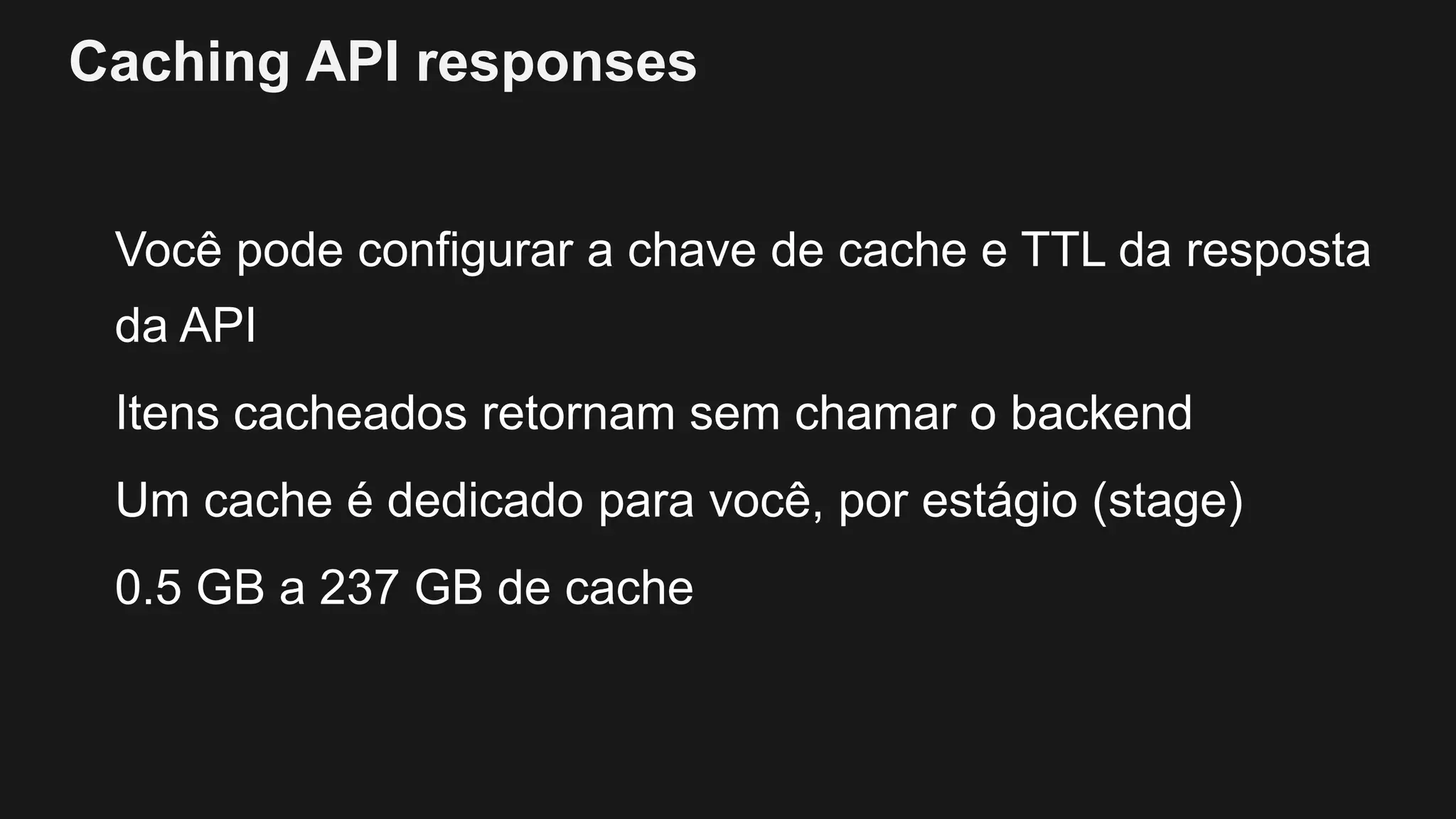

- 41. Caching API responses Vocêpode configurar a chave de cache e TTL da resposta da API Itens cacheados retornam sem chamar o backend Um cache é dedicado para você, por estágio (stage) 0.5 GB a 237 GB de cache

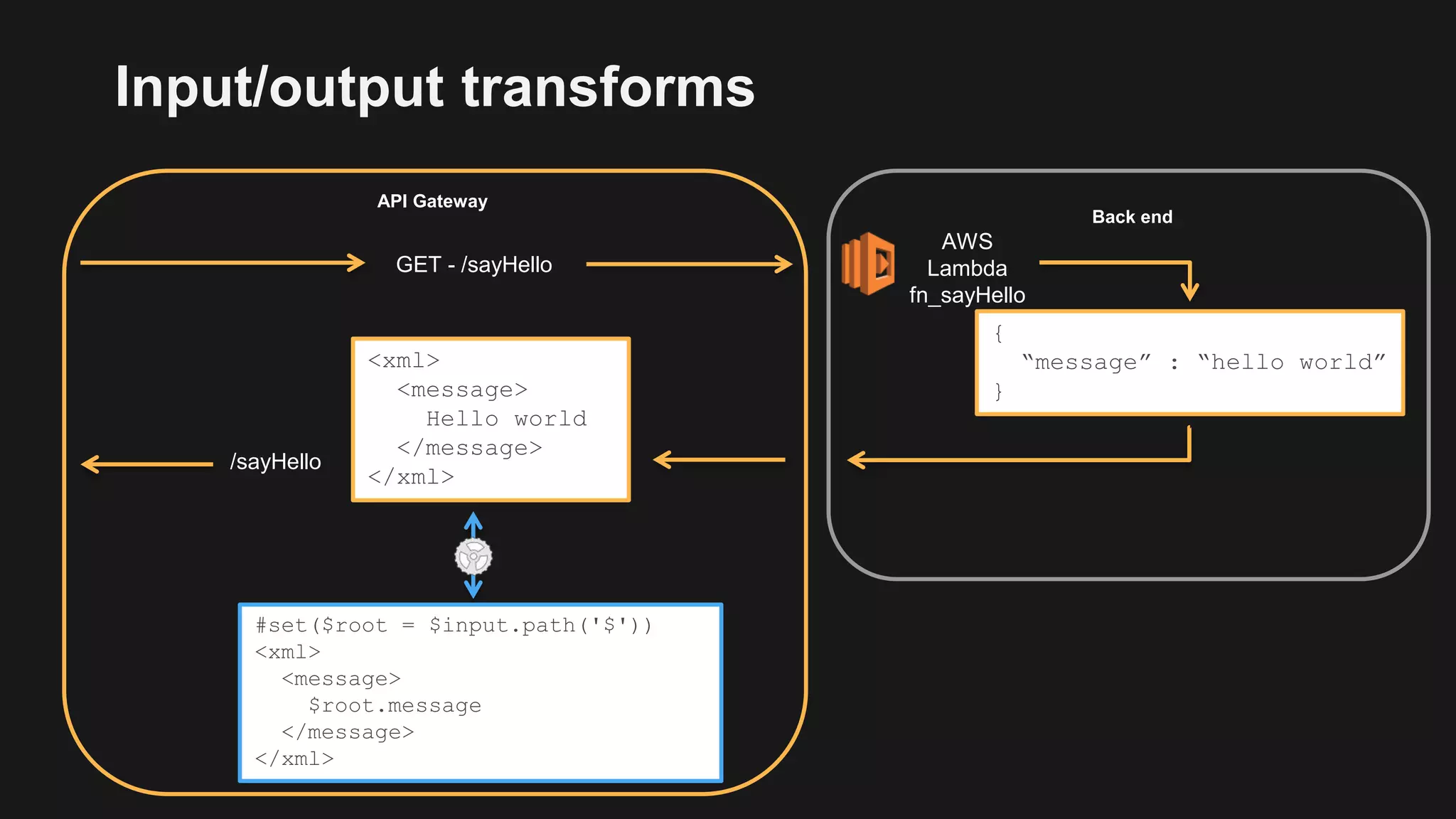

- 42. API Gateway Back end GET- /sayHello AWS Lambda fn_sayHello /sayHello { “message” : “hello world” } <xml> <message> Hello world </message> </xml> #set($root = $input.path('$')) <xml> <message> $root.message </message> </xml> Input/output transforms

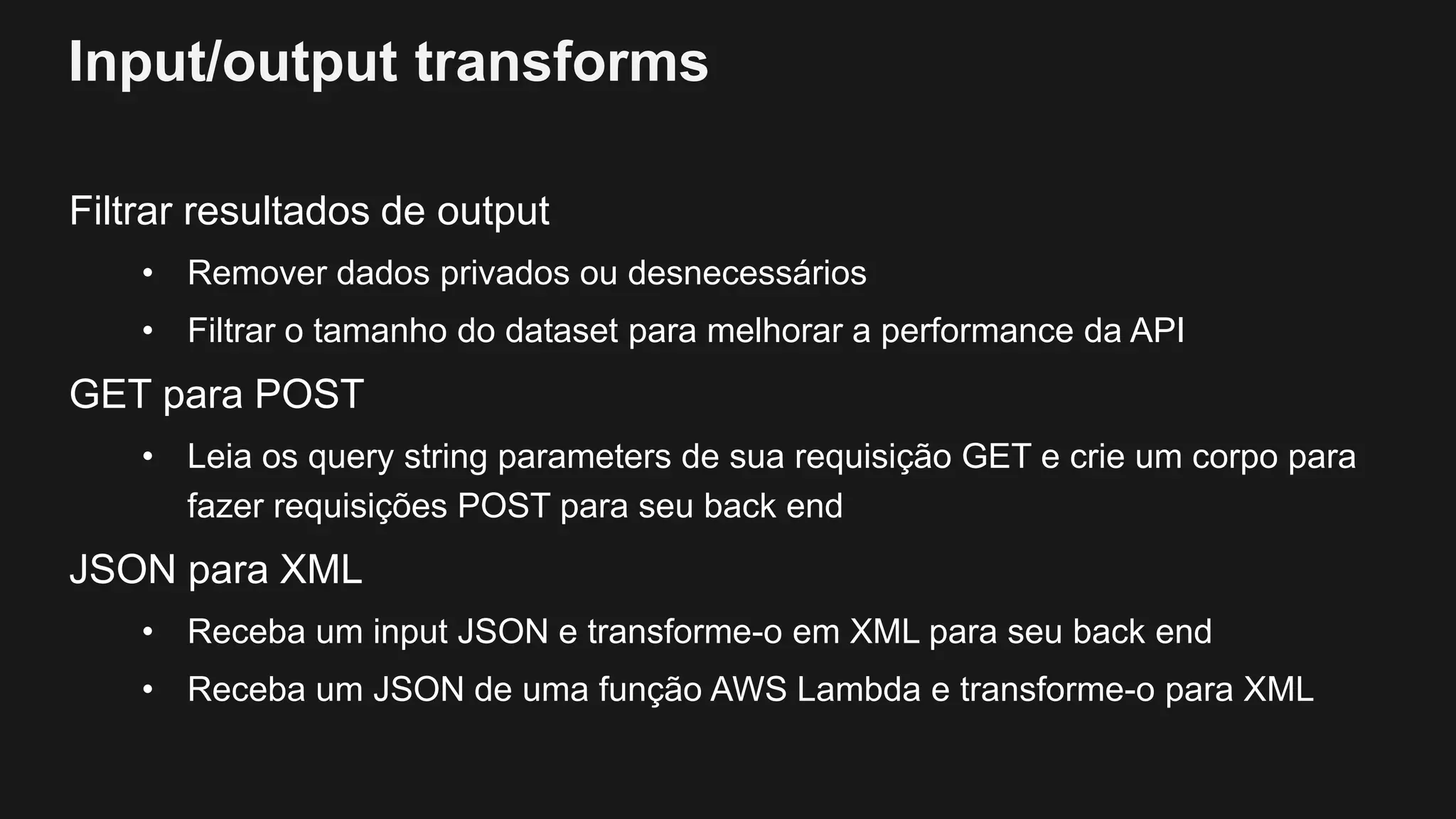

- 43. Input/output transforms Filtrar resultadosde output • Remover dados privados ou desnecessários • Filtrar o tamanho do dataset para melhorar a performance da API GET para POST • Leia os query string parameters de sua requisição GET e crie um corpo para fazer requisições POST para seu back end JSON para XML • Receba um input JSON e transforme-o em XML para seu back end • Receba um JSON de uma função AWS Lambda e transforme-o para XML

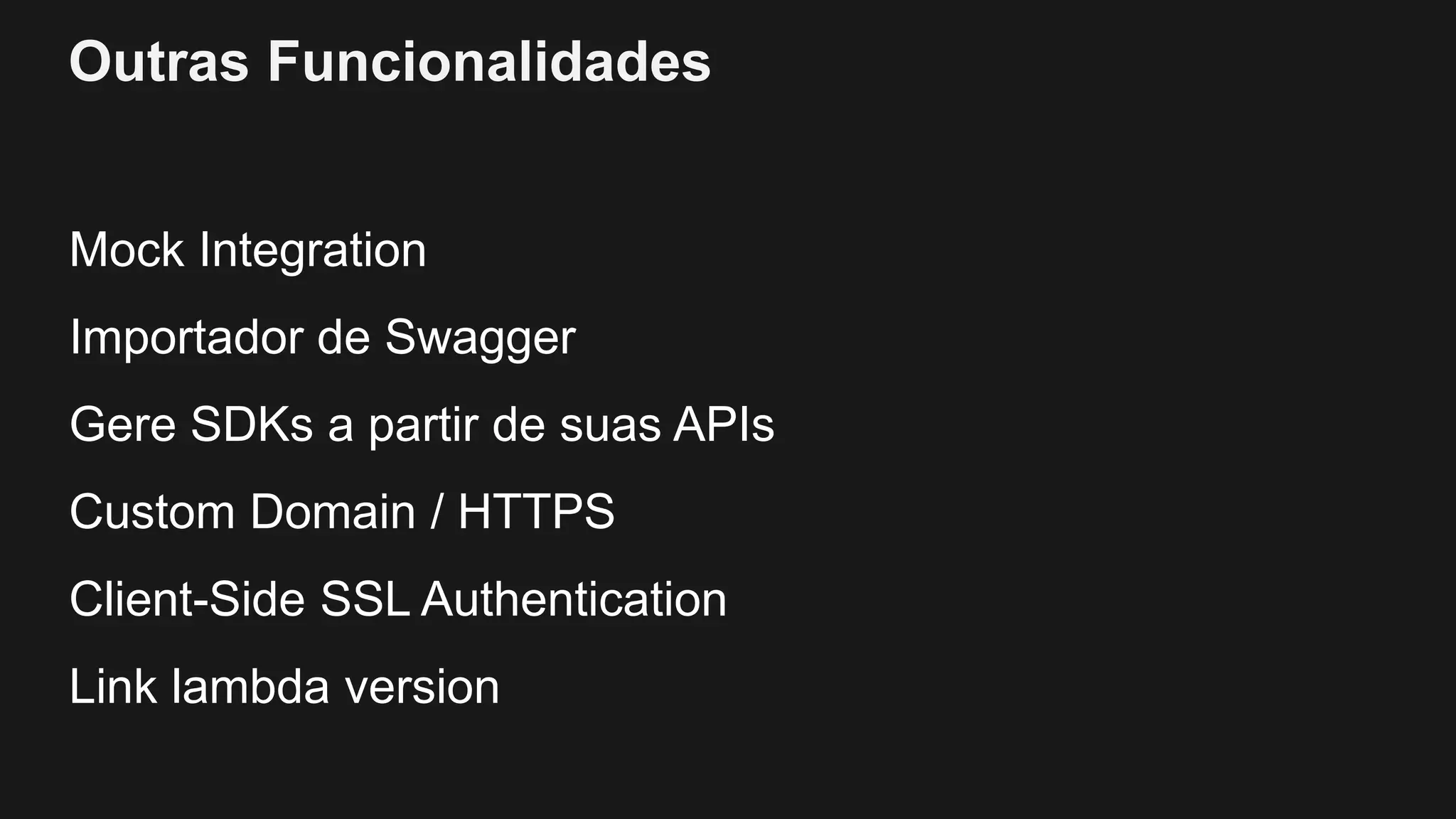

- 44. Outras Funcionalidades Mock Integration Importadorde Swagger Gere SDKs a partir de suas APIs Custom Domain / HTTPS Client-Side SSL Authentication Link lambda version
- 45.

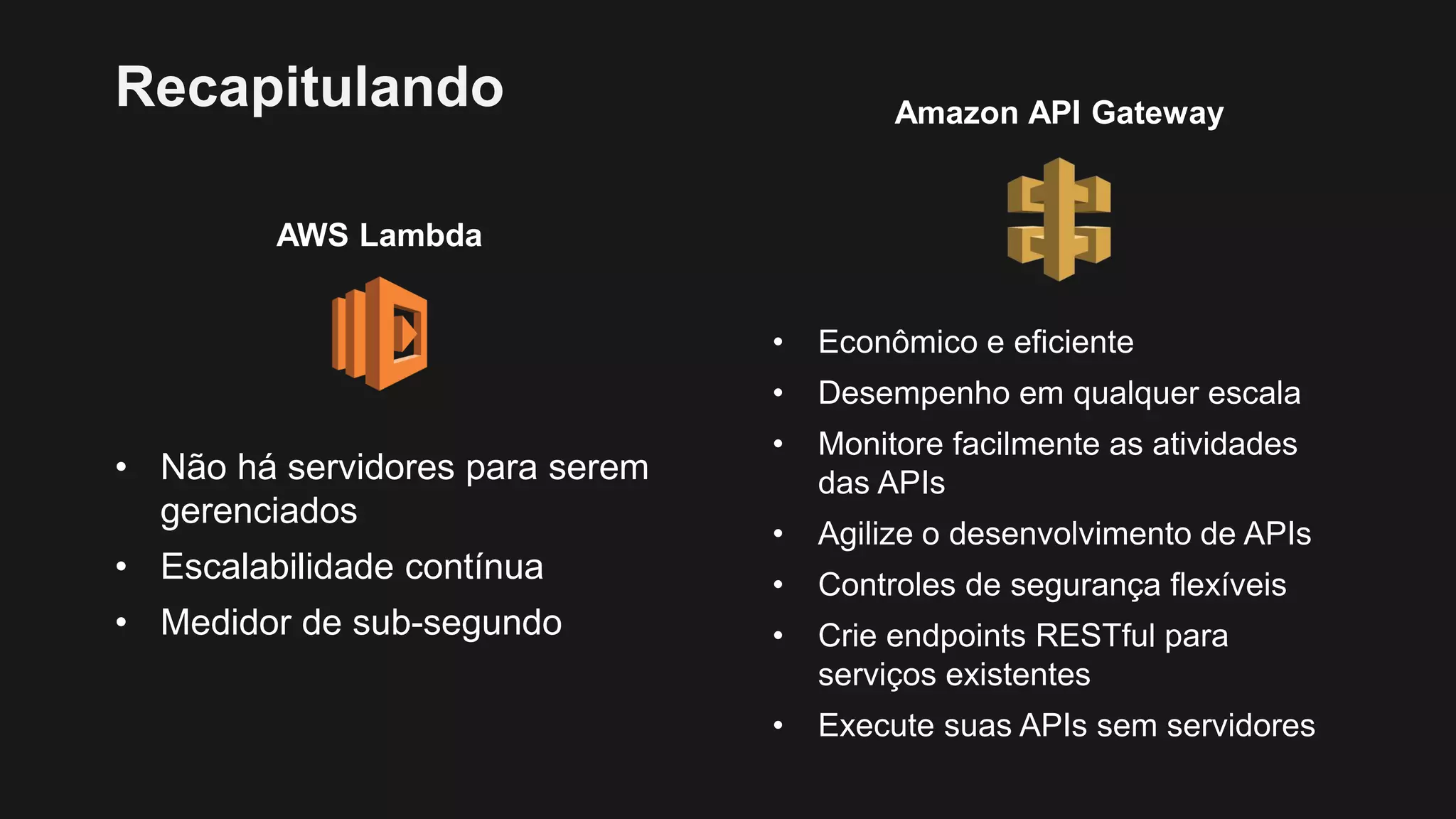

- 46. Amazon API Gateway Recapitulando AWSLambda • Não há servidores para serem gerenciados • Escalabilidade contínua • Medidor de sub-segundo • Econômico e eficiente • Desempenho em qualquer escala • Monitore facilmente as atividades das APIs • Agilize o desenvolvimento de APIs • Controles de segurança flexíveis • Crie endpoints RESTful para serviços existentes • Execute suas APIs sem servidores
Notas do Editor
- #11 Janakiram MSV, analista de mercado, escreve pra revista forbes…
- #12 1 - AWS Lambda automatically runs your code without requiring you to provision or manage servers. Just write the code and upload it to Lambda. 2 - AWS Lambda automatically scales your application by running code in response to each trigger. Your code runs in parallel and processes each trigger individually, scaling precisely with the size of the workload. 3 - With AWS Lambda, you are charged for every 100ms your code executes and the number of times your code is triggered. You don't pay anything when your code isn't running.
- #15 verify data formats, audit out-of-range values, filter and copy data to other tables - Add in API Gateway here as that is a huge use case. You may want to ensure you have the complete list of integrated services. - You may want to talk a bit about the push versus pull model of invocation, as well as the request response
- #17 verify data formats, audit out-of-range values, filter and copy data to other tables - Add in API Gateway here as that is a huge use case. You may want to ensure you have the complete list of integrated services. - You may want to talk a bit about the push versus pull model of invocation, as well as the request response
- #19 verify data formats, audit out-of-range values, filter and copy data to other tables - Add in API Gateway here as that is a huge use case. You may want to ensure you have the complete list of integrated services. - You may want to talk a bit about the push versus pull model of invocation, as well as the request response
- #21 verify data formats, audit out-of-range values, filter and copy data to other tables - Add in API Gateway here as that is a huge use case. You may want to ensure you have the complete list of integrated services. - You may want to talk a bit about the push versus pull model of invocation, as well as the request response
- #35 Let’s look in details at the hierarchical structure of an API The top level element is the API itself, we call it a REST API. A rest API can contain many resources, resources are typed objects that are part of your API’s domain. They also represent the path through which the objects will be accessible You can nest resources, in our example the /pet/{petId} represents an individual pet and is a nested resource of the /pets/ resource. Each resource can declare methods. Methods are the combination of a resource + an HTTP Verb. We support 7 standard HTTP Verbs, For example, a method is the POST to the /pets/{petId} resources – this would be used to create a new pet
- #36 Now that we have declared an API with its resources and methods, we can deploy it to make it accessible to 3rd party developers APIs are deployed to a Stage Stages represent environments, for example development of production In API Gateway Stages are like tags, and developers can create as many stages as they want. A stage is just an alphanumeric string Stages are part of the path that will be used to reach sources and methods, for example the prod stage will be available at execute-api.apigateway.com/stage/resource
- #37 This is a visual representation of how versions and stages are managed by the API Gateway, and how customers can leverage these features for their APIs The first thing we’ll do is declared a V1 API and start configuring its resources and methods The next step is to deploy the API to a development stage, we’ll keep deploying to development as we evolve our API At a certain point, when we are ready for 3rd party developers to access this API, we will publish it to a production stage and distribute API Keys and generated SDKs All along we will keep deploying APIs to both dev and prod including new features and bug fixed Eventually we’ll want to make some breaking changes, and work on a much improved v2 API. However, we cannot make breaking changes to the API in production because we have thousands of developers using it. To manage this situation we’ll simply clone the current state of the v1 API into a new API called v2, and begin development of the new version By cloning we can keep publishing bug fixes to the first release and supporting users that are calling it with a gentle, gradual deprecation “… developers feel like they can deliver what they want, when they want to – and that makes for an extremely valuable tool …”
- #38 Customers can configure the API Gateway to use a custom domain name they provide instead of the standard AWS domain. We expect customers to bring their own signed certificate for the HTTPS endpoints Domain names can be configured to point to an API, our top level item, or directly to a specific stage within an API. Pointing a custom domain name to an API requires the stage to be included in the path If the domain name is pointed directly at a stage there is no need for the path variable, resources can be accessed directly form the API root “/”
- #39 API Gateway uses throttling to help protect customer backends and send only request that they can handle To implement throttling we use the token bucket algorithm Customers can set the number of RPS calls they know their backend can handle, and a rate at which the bucket is refilled
- #40 API Gateway uses throttling to help protect customer backends and send only request that they can handle To implement throttling we use the token bucket algorithm Customers can set the number of RPS calls they know their backend can handle, and a rate at which the bucket is refilled
- #41 Let’s put the two together and look at the execution path of an API call First, when we receive a request, we will check the dedicated cache (if it’s been configured) If we have an item in the cache then we can handle the request regardless of the throttling configuration, it will have no effect on our customer’s backend Next, if we don’t have a cache, we check the throttling configuration and the current throttling state (our bucket) If we are above the limit we will return a 429 response Otherwise we will execute the backend call and return the result As we mentioned our generated SDKs automatically know how to handle throttling responses, and they will perform an exponential backoff while retrying the call
- #42 To limit the number of requests their backend can receive, and further bring down latency customers can configure a dedicated cache for each stage of their API For each method in their APIs customers can configure which parameters between path, query string and headers form the item key in the cache, and assign each item a time to live API Gateway automatically caches responses where configured and avoids calling the customer’s backend if the cached item is available and valid Customers have access to APIs to manage their cache in the API Gateway When a stage is configured with a dedicated cache, and an item is found to be in cache and valid for a request that would otherwise be throttled, the API Gateway will handle the request and return the cached response Customers can pick for a range of possible cache sizes to provision a dedicated cache from their stage, from 0.5GB all the way up to 237GB
- #43 Example of a simple transformation flow API Gateway + Lambda = Server-less backend Use AWS Lambda to run business logic Use API Gateway to expose the AWS Lambda functions as endpoints Transforms Lambda’s JSON output to XML for their APIs
- #44 Let’s look at how request and response data can be transformed in-flight. We use Apache Velocity as the standard to create, save and execute templates We have been working with our customers on this and during development we have seen the following use-cases from them Filter API responses. In many cases legacy APIs tended to return verbose responses with too many objects. Large payloads are a struggle for mobile applications, so customers are using the templates to traverse the response schema and filter the output to return only the necessary fields RPC to REST. Customers have RPC-style APIs that they wanted to expose to the world in the form of RESTful APIs. RPC often only accept POST calls. Customers used the transform templates to accept a GET call in the API Gateway, then generate the POST body for their backend call reading parameters from the path, query string and headers Customers who want to leverage Lambda but only run XML APIs have been using the transform templates to receive the JSON output from Lambda, and turn it into an XML before sending it back to the end user. This has allowed them to completely switch their backend technology while causing no disruption for 3rd party developers utilizing their APIs, very neat tablecloth trick. Example: Twilio
- #45 API Gateway can generate client SDKs based on a customer’s API definition. Simply select the deployment the SDK should target, the platform, and setup a couple of parameters and the API Gateway generates an SDK and makes it available to download through an API or the management console SDK are model-aware and also come with the built-in AWS core that allows them to handle throttling responses and sign requests using AWS Credentials
- #47 30 segundos para apresentar a empresa, rapidamente
- #48 Os 4 (máximo) maiores desafios do projeto, que foram resolvidos pela utilização da nuvem da AWS
- #49 Diagrama de solução, e explicar a solução, vantagens, etc
