Switching - Nível Básico / Intermediário
1. Professor Jefferson Costa
www.jeffersoncosta.com.brSwitchingNível Básico -IntermediárioProf. Jefferson Costa
2. Professor Jefferson Costa
www.jeffersoncosta.com.br

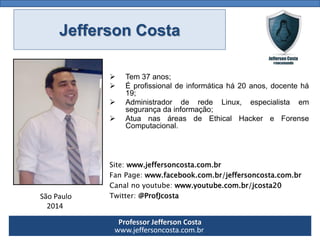

Tem37anos;
Éprofissionaldeinformáticahá20anos,docentehá19;
AdministradorderedeLinux,especialistaemsegurançadainformação;
AtuanasáreasdeEthicalHackereForenseComputacional.
Site:www.jeffersoncosta.com.br
FanPage:www.facebook.com.br/jeffersoncosta.com.br
Canalnoyoutube:www.youtube.com.br/jcosta20
Twitter:@ProfJcosta
São Paulo
2014 Jefferson Costa
3. Professor Jefferson Costa
www.jeffersoncosta.com.br

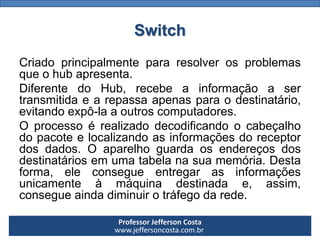

Criadoprincipalmentepararesolverosproblemasqueohubapresenta.
DiferentedoHub,recebeainformaçãoasertransmitidaearepassaapenasparaodestinatário, evitandoexpô-laaoutroscomputadores.
Oprocessoérealizadodecodificandoocabeçalhodopacoteelocalizandoasinformaçõesdoreceptordosdados.Oaparelhoguardaosendereçosdosdestinatáriosemumatabelanasuamemória.Destaforma,eleconsegueentregarasinformaçõesunicamenteàmáquinadestinadae,assim, consegueaindadiminuirotráfegodarede. Switch
4. Professor Jefferson Costa
www.jeffersoncosta.com.br

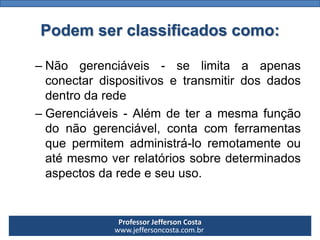

–Nãogerenciáveis-selimitaaapenasconectardispositivosetransmitirdosdadosdentrodarede
–Gerenciáveis-Alémdeteramesmafunçãodonãogerenciável,contacomferramentasquepermitemadministrá-loremotamenteouatémesmoverrelatóriossobredeterminadosaspectosdaredeeseuuso. Podem ser classificados como:
5. Professor Jefferson Costa

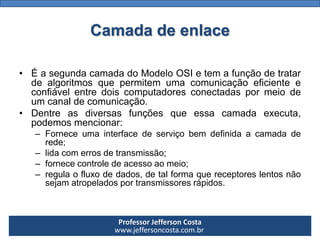

www.jeffersoncosta.com.brCamada de enlace
•ÉasegundacamadadoModeloOSIetemafunçãodetratardealgoritmosquepermitemumacomunicaçãoeficienteeconfiávelentredoiscomputadoresconectadaspormeiodeumcanaldecomunicação.
•Dentreasdiversasfunçõesqueessacamadaexecuta, podemosmencionar:
–Forneceumainterfacedeserviçobemdefinidaacamadaderede;
–lidacomerrosdetransmissão;
–fornececontroledeacessoaomeio;
–regulaofluxodedados,detalformaquereceptoreslentosnãosejamatropeladosportransmissoresrápidos.
6. Professor Jefferson Costa
www.jeffersoncosta.com.br
LLC - Controle de ligação lógica
MAC - Controle de acesso ao meio físico
Camadas OSI
Camadas IEEE 802
Protocolos da camada de enlace
(link de dados)
7. Professor Jefferson Costa
www.jeffersoncosta.com.br

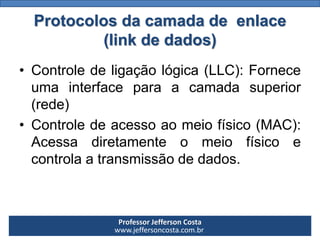

•Controledeligaçãológica(LLC):Forneceumainterfaceparaacamadasuperior(rede)
•Controledeacessoaomeiofísico(MAC): Acessadiretamenteomeiofísicoecontrolaatransmissãodedados. Protocolos da camada de enlace (link de dados)
8. Professor Jefferson Costa
www.jeffersoncosta.com.brProtocolos da camada de enlace (link de dados)
Camada 2 –Enlaceou link de dados
Subcamadas:
Ethernet,802.11WiFi,IEEE802.1Q,802.11g,HDLC,Tokenring,FDDI,PPP,Switch,Framerelay,ATM,dentreoutros.
•Subcamada LLC
•Subcamada MAC
9. Professor Jefferson Costa

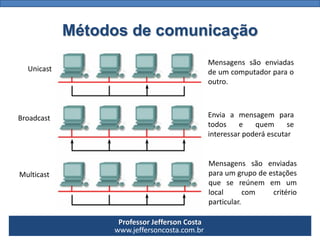

www.jeffersoncosta.com.brMétodos de comunicação
Unicast
Broadcast
Multicast
Enviaamensagemparatodosequemseinteressarpoderáescutar
Mensagenssãoenviadasdeumcomputadorparaooutro.
Mensagenssãoenviadasparaumgrupodeestaçõesquesereúnememumlocalcomcritérioparticular.
10. Professor Jefferson Costa

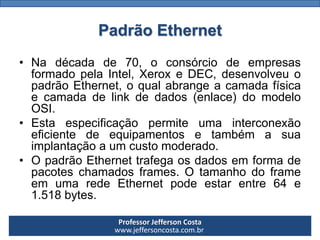

www.jeffersoncosta.com.brPadrão Ethernet
•Nadécadade70,oconsórciodeempresasformadopelaIntel,XeroxeDEC,desenvolveuopadrãoEthernet,oqualabrangeacamadafísicaecamadadelinkdedados(enlace)domodeloOSI.
•Estaespecificaçãopermiteumainterconexãoeficientedeequipamentosetambémasuaimplantaçãoaumcustomoderado.
•OpadrãoEthernettrafegaosdadosemformadepacoteschamadosframes.OtamanhodoframeemumaredeEthernetpodeestarentre64e1.518bytes.
11. Professor Jefferson Costa
www.jeffersoncosta.com.br
Quadro Ethernet
Enquadramento é o processo de encapsulamento da camada enlace.
Um quadro é uma unidade de dados de protocolo da camada
• Ethernet
• IEEE 802.3
7 bytes 1 byte 6 bytes 6 bytes 2 bytes 46 - 1500 bytes 4 bytes
Preâmbulo Endereço de destino Endereço de origem Tipo Dados
FCS (Frame Check
Sequence)
SOF
8 bytes 6 bytes 6 bytes 2 bytes 46 - 1500 bytes 4 bytes
Preâmbulo Endereço de destino Endereço de origem Tipo Dados
FCS (Frame Check
Sequence)
12. Professor Jefferson Costa
www.jeffersoncosta.com.br

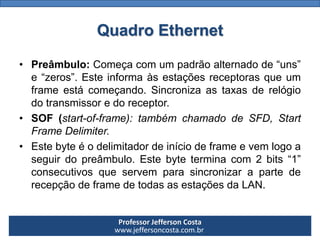

•Preâmbulo:Começacomumpadrãoalternadode“uns” e“zeros”.Esteinformaàsestaçõesreceptorasqueumframeestácomeçando.Sincronizaastaxasderelógiodotransmissoredoreceptor.
•SOF(start-of-frame):tambémchamadodeSFD,StartFrameDelimiter.
•Estebyteéodelimitadordeiníciodeframeevemlogoaseguirdopreâmbulo.Estebyteterminacom2bits“1” consecutivosqueservemparasincronizarapartederecepçãodeframedetodasasestaçõesdaLAN. Quadro Ethernet
13. Professor Jefferson Costa
www.jeffersoncosta.com.br

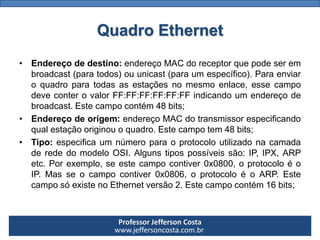

•Endereçodedestino:endereçoMACdoreceptorquepodeserembroadcast(paratodos)ouunicast(paraumespecífico).Paraenviaroquadroparatodasasestaçõesnomesmoenlace,essecampodeveconterovalorFF:FF:FF:FF:FF:FFindicandoumendereçodebroadcast.Estecampocontém48bits;
•Endereçodeorigem:endereçoMACdotransmissorespecificandoqualestaçãooriginouoquadro.Estecampotem48bits;
•Tipo:especificaumnúmeroparaoprotocoloutilizadonacamadaderededomodeloOSI.Algunstipospossíveissão:IP,IPX,ARPetc.Porexemplo,seestecampocontiver0x0800,oprotocoloéoIP.Masseocampocontiver0x0806,oprotocoloéoARP.EstecamposóexistenoEthernetversão2.Estecampocontém16bits; Quadro Ethernet
14. Professor Jefferson Costa
www.jeffersoncosta.com.br
•Dados:osdadospropriamenteditos,podendoincluirumdatagrama.Segundoaespecificaçãodoprotocoloaquantidademínimadedadosdesseprotocoloéde46bytesemaximode1500bytes;
•FCS(FrameCheckSequence):tambémconhecidocomoCRC(CyclicRedundancyCheck),provêdetecçãodeerrosaofazercomparaçõesentreoFCSenviadonatransmissão,comoqueécalculadonarecepção.Senessacomparaçãooresultadofordiferente,oquadroédescartadosemindicaraotransmissorqueissoaconteceu.Achecagemécomputadaapartirdocampoendereçodedestino.Estecampocontém32bits;
•Éusadoparagarantirqueamensagemnãofoicorrompidaaolongodocaminho. Quadro Ethernet
15. Professor Jefferson Costa
www.jeffersoncosta.com.br

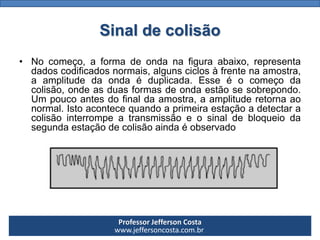

•Nocomeço,aformadeondanafiguraabaixo,representadadoscodificadosnormais,algunsciclosàfrentenaamostra, aamplitudedaondaéduplicada.Esseéocomeçodacolisão,ondeasduasformasdeondaestãosesobrepondo. Umpoucoantesdofinaldaamostra,aamplituderetornaaonormal.IstoacontecequandoaprimeiraestaçãoadetectaracolisãointerrompeatransmissãoeosinaldebloqueiodasegundaestaçãodecolisãoaindaéobservadoSinal de colisão
16. Professor Jefferson Costa
www.jeffersoncosta.com.br

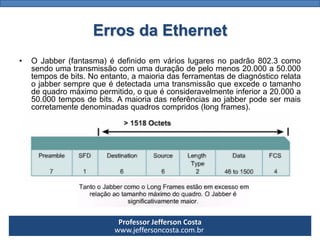

•OJabber(fantasma)édefinidoemvárioslugaresnopadrão802.3comosendoumatransmissãocomumaduraçãodepelomenos20.000a50.000temposdebits.Noentanto,amaioriadasferramentasdediagnósticorelataojabbersemprequeédetectadaumatransmissãoqueexcedeotamanhodequadromáximopermitido,oqueéconsideravelmenteinferiora20.000a50.000temposdebits.Amaioriadasreferênciasaojabberpodesermaiscorretamentedenominadasquadroscompridos(longframes). Erros da Ethernet
17. Professor Jefferson Costa
www.jeffersoncosta.com.br
•Umquadropequenoéumquadrodetamanhoinferioraomáximopermitidode64octetos,comumaboasequênciadeverificaçãodequadro(FCS).Algunsanalisadoresdeprotocolosemonitoresderedeschamamtaisquadrosde"runts"(cotocos).Emgeral,apresençadequadrospequenos(shortframes)nãoénenhumagarantiadequearedeestáfalhandoErros da Ethernet
18. Professor Jefferson Costa
www.jeffersoncosta.com.br

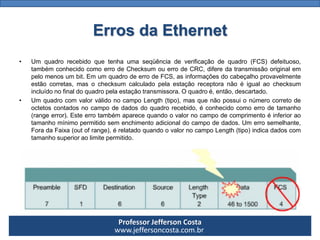

•Umquadrorecebidoquetenhaumaseqüênciadeverificaçãodequadro(FCS)defeituoso, tambémconhecidocomoerrodeChecksumouerrodeCRC,diferedatransmissãooriginalempelomenosumbit.EmumquadrodeerrodeFCS,asinformaçõesdocabeçalhoprovavelmenteestãocorretas,masochecksumcalculadopelaestaçãoreceptoranãoéigualaochecksumincluídonofinaldoquadropelaestaçãotransmissora.Oquadroé,então,descartado.
•UmquadrocomvalorválidonocampoLength(tipo),masquenãopossuionúmerocorretodeoctetoscontadosnocampodedadosdoquadrorecebido,éconhecidocomoerrodetamanho(rangeerror).Esteerrotambémaparecequandoovalornocampodecomprimentoéinferioraotamanhomínimopermitidosemenchimentoadicionaldocampodedados.Umerrosemelhante, ForadaFaixa(outofrange),érelatadoquandoovalornocampoLength(tipo)indicadadoscomtamanhosuperioraolimitepermitido. Erros da Ethernet
19. Professor Jefferson Costa
www.jeffersoncosta.com.br

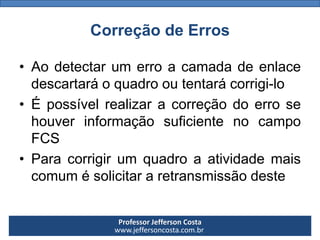

Correção de Erros
•Aodetectarumerroacamadadeenlacedescartaráoquadrooutentarácorrigi-lo
•ÉpossívelrealizaracorreçãodoerrosehouverinformaçãosuficientenocampoFCS
•Paracorrigirumquadroaatividademaiscomumésolicitararetransmissãodeste
20. Professor Jefferson Costa
www.jeffersoncosta.com.brDomínio de colisão

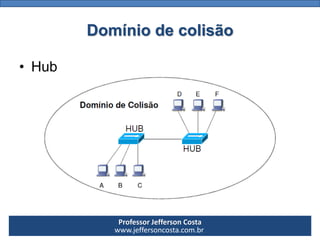

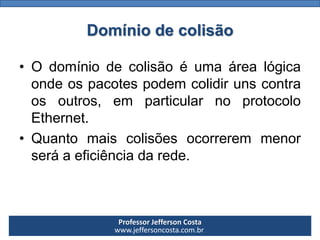

•Odomíniodecolisãoéumaárealógicaondeospacotespodemcolidirunscontraosoutros,emparticularnoprotocoloEthernet.
•Quantomaiscolisõesocorreremmenorseráaeficiênciadarede.
22. Professor Jefferson Costa

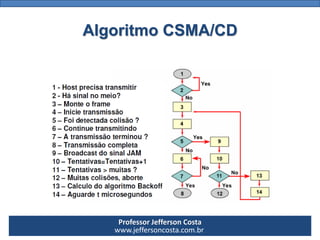

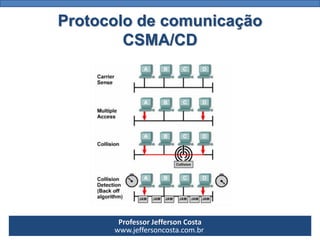

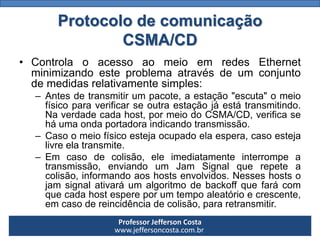

www.jeffersoncosta.com.brProtocolo de comunicação CSMA/CD
•ControlaoacessoaomeioemredesEthernetminimizandoesteproblemaatravésdeumconjuntodemedidasrelativamentesimples:
–Antesdetransmitirumpacote,aestação"escuta"omeiofísicoparaverificarseoutraestaçãojáestátransmitindo. Naverdadecadahost,pormeiodoCSMA/CD,verificaseháumaondaportadoraindicandotransmissão.
–Casoomeiofísicoestejaocupadoelaespera,casoestejalivreelatransmite.
–Emcasodecolisão,eleimediatamenteinterrompeatransmissão,enviandoumJamSignalquerepeteacolisão,informandoaoshostsenvolvidos.Nesseshostsojamsignalativaráumalgoritmodebackoffquefarácomquecadahostespereporumtempoaleatórioecrescente, emcasodereincidênciadecolisão,pararetransmitir.
25. Professor Jefferson Costa
www.jeffersoncosta.com.brDomínio de broadcast

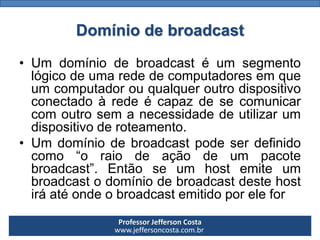

•Umdomíniodebroadcastéumsegmentológicodeumarededecomputadoresemqueumcomputadorouqualqueroutrodispositivoconectadoàredeécapazdesecomunicarcomoutrosemanecessidadedeutilizarumdispositivoderoteamento.
•Umdomíniodebroadcastpodeserdefinidocomo“oraiodeaçãodeumpacotebroadcast”.Entãoseumhostemiteumbroadcastodomíniodebroadcastdestehostiráatéondeobroadcastemitidoporelefor
29. Professor Jefferson Costa

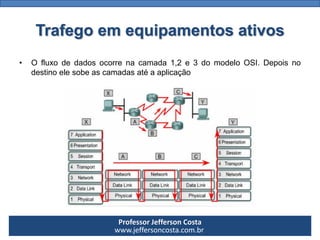

www.jeffersoncosta.com.brTrafego em equipamentos ativos
•Ofluxodedadosocorrenacamada1,2e3domodeloOSI.Depoisnodestinoelesobeascamadasatéaaplicação
31. Professor Jefferson Costa

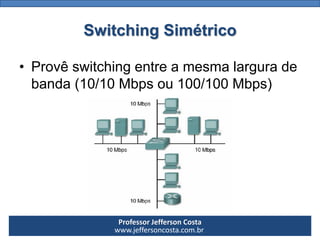

www.jeffersoncosta.com.brSwitchingSimétrico
•Provê switchingentre a mesma largura de banda (10/10 Mbps ou 100/100 Mbps)
32. Professor Jefferson Costa

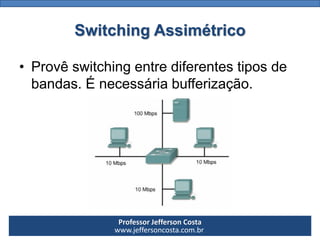

www.jeffersoncosta.com.brSwitchingAssimétrico
•Provê switchingentre diferentes tipos de bandas. É necessária bufferização.
33. Professor Jefferson Costa

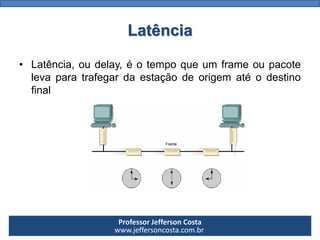

www.jeffersoncosta.com.brLatência
•Latência,oudelay,éotempoqueumframeoupacotelevaparatrafegardaestaçãodeorigematéodestinofinal
35. Professor Jefferson Costa
www.jeffersoncosta.com.brGargalo de rede
•Pontos de menor capacidade (largura de banda)
•Excesso de Trafego
36. Professor Jefferson Costa

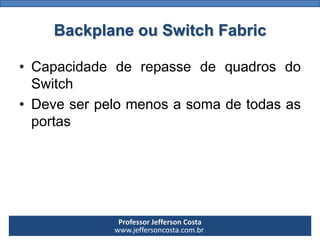

www.jeffersoncosta.com.brBackplaneou Switch Fabric
•CapacidadederepassedequadrosdoSwitch
•Deveserpelomenosasomadetodasasportas
37. Professor Jefferson Costa

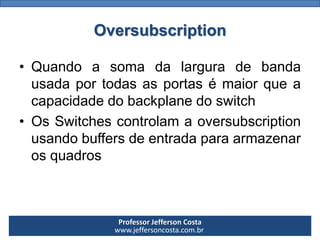

www.jeffersoncosta.com.brOversubscription
•Quandoasomadalarguradebandausadaportodasasportasémaiorqueacapacidadedobackplanedoswitch
•OsSwitchescontrolamaoversubscriptionusandobuffersdeentradaparaarmazenarosquadros
38. Professor Jefferson Costa

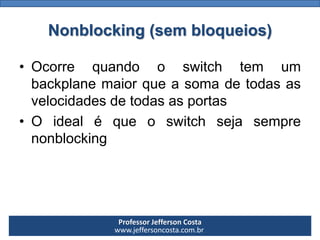

www.jeffersoncosta.com.brNonblocking(sem bloqueios)
•Ocorrequandooswitchtemumbackplanemaiorqueasomadetodasasvelocidadesdetodasasportas
•Oidealéqueoswitchsejasemprenonblocking
39. Professor Jefferson Costa

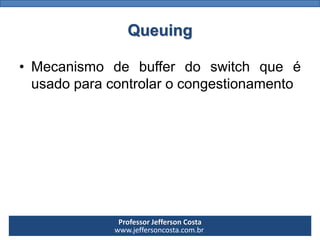

www.jeffersoncosta.com.brQueuing
•Mecanismodebufferdoswitchqueéusadoparacontrolarocongestionamento
40. Professor Jefferson Costa

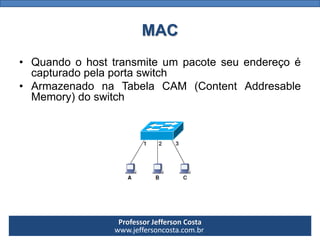

www.jeffersoncosta.com.brMAC
•Quandoohosttransmiteumpacoteseuendereçoécapturadopelaportaswitch
•ArmazenadonaTabelaCAM(ContentAddresableMemory)doswitch
41. Professor Jefferson Costa

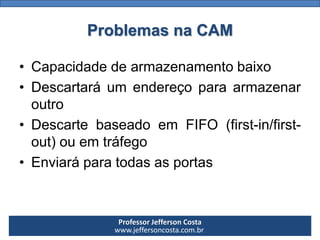

www.jeffersoncosta.com.brProblemas na CAM
•Capacidadedearmazenamentobaixo
•Descartaráumendereçoparaarmazenaroutro
•DescartebaseadoemFIFO(first-in/first- out)ouemtráfego
•Enviaráparatodasasportas
43. Professor Jefferson Costa
www.jeffersoncosta.com.brCamada de acesso
•Ofereceaousuárioumacessoasegmentoslocaisderede.EssacamadaécaracterizadaporLANscomlargurasdebandacompartilhadasecomswitchesemumaambientedecampus.
•Amicrosegmentação,usando-seswitchesdeLAN, oferecemaiorlarguradebandaagruposdetrabalho, dividindoosdomíniosdecolisãonossegmentosEthernet.
44. Professor Jefferson Costa
www.jeffersoncosta.com.brCamada de distribuição

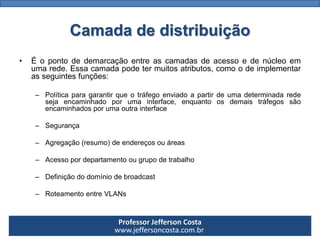

•Éopontodedemarcaçãoentreascamadasdeacessoedenúcleoemumarede.Essacamadapodetermuitosatributos,comoodeimplementarasseguintesfunções:
–Políticaparagarantirqueotráfegoenviadoapartirdeumadeterminadaredesejaencaminhadoporumainterface,enquantoosdemaistráfegossãoencaminhadosporumaoutrainterface
–Segurança
–Agregação(resumo)deendereçosouáreas
–Acessopordepartamentoougrupodetrabalho
–Definiçãododomíniodebroadcast
–RoteamentoentreVLANs
45. Professor Jefferson Costa

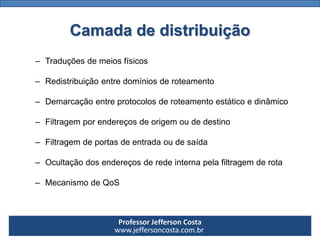

www.jeffersoncosta.com.brCamada de distribuição
–Traduçõesdemeiosfísicos
–Redistribuiçãoentredomíniosderoteamento
–Demarcaçãoentreprotocolosderoteamentoestáticoedinâmico
–Filtragemporendereçosdeorigemoudedestino
–Filtragemdeportasdeentradaoudesaída
–Ocultaçãodosendereçosderedeinternapelafiltragemderota
–MecanismodeQoS
46. Professor Jefferson Costa
www.jeffersoncosta.com.brCamada de core (Núcleo)
•Éobackbonedeswitchingmaisrápidodarede,oqueéimprescindívelparacomunicaçõesdealtavelocidadeedisponibilidade.Essacamadaapresentaasseguintescaracterísticas:
–Oferecegrandeconfiabilidade
–Ofereceredundância
–Oferecetolerânciaafalhas
–Adaptaseaalteraçõescomfacilidade
–Oferecebaixalatênciaeboagerenciabilidade
–Evitaamanipulaçãolentadospacotescausadaporfiltrosououtrosprocessos
–Possuiumdiâmetrolimitadoeconsistente
47. Professor Jefferson Costa
www.jeffersoncosta.com.brBackbone de rede

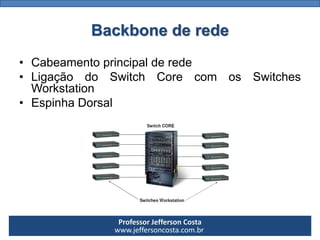

•Cabeamentoprincipalderede
•LigaçãodoSwitchCorecomosSwitchesWorkstation
•EspinhaDorsal
48. Professor Jefferson Costa

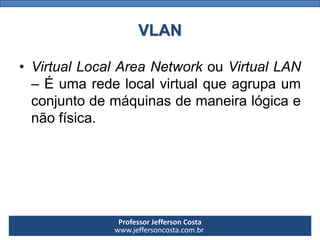

www.jeffersoncosta.com.brVLAN
•VirtualLocalAreaNetworkouVirtualLAN–Éumaredelocalvirtualqueagrupaumconjuntodemáquinasdemaneiralógicaenãofísica.
49. Professor Jefferson Costa

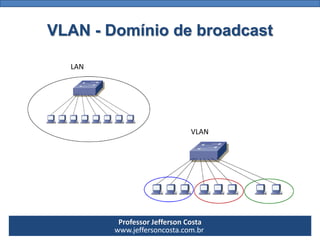

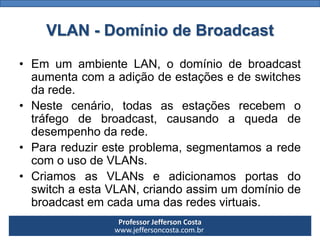

www.jeffersoncosta.com.brVLAN -Domínio de Broadcast
•EmumambienteLAN,odomíniodebroadcastaumentacomaadiçãodeestaçõesedeswitchesdarede.
•Nestecenário,todasasestaçõesrecebemotráfegodebroadcast,causandoaquedadedesempenhodarede.
•Parareduziresteproblema,segmentamosaredecomousodeVLANs.
•CriamosasVLANseadicionamosportasdoswitchaestaVLAN,criandoassimumdomíniodebroadcastemcadaumadasredesvirtuais.
51. Professor Jefferson Costa
www.jeffersoncosta.com.brLayout sem VLAN

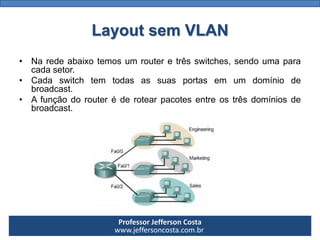

•Naredeabaixotemosumrouteretrêsswitches,sendoumaparacadasetor.
•Cadaswitchtemtodasassuasportasemumdomíniodebroadcast.
•Afunçãodorouteréderotearpacotesentreostrêsdomíniosdebroadcast.
52. Professor Jefferson Costa

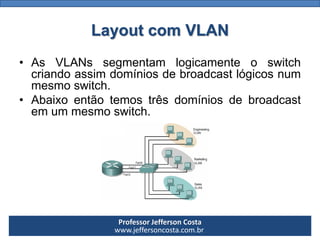

www.jeffersoncosta.com.brLayout com VLAN
•AsVLANssegmentamlogicamenteoswitchcriandoassimdomíniosdebroadcastlógicosnummesmoswitch.
•Abaixoentãotemostrêsdomíniosdebroadcastemummesmoswitch.
53. Professor Jefferson Costa

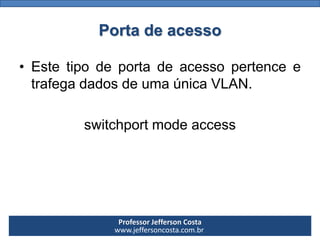

www.jeffersoncosta.com.brPorta de acesso
•EstetipodeportadeacessopertenceetrafegadadosdeumaúnicaVLAN.
switchportmodeaccess
54. Professor Jefferson Costa

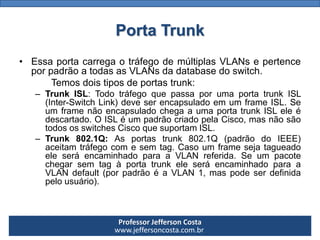

www.jeffersoncosta.com.brPorta Trunk
•EssaportacarregaotráfegodemúltiplasVLANsepertenceporpadrãoatodasasVLANsdadatabasedoswitch.
Temosdoistiposdeportastrunk:
–TrunkISL:TodotráfegoquepassaporumaportatrunkISL(Inter-SwitchLink)deveserencapsuladoemumframeISL.SeumframenãoencapsuladochegaaumaportatrunkISLeleédescartado.OISLéumpadrãocriadopelaCisco,masnãosãotodososswitchesCiscoquesuportamISL.
–Trunk802.1Q:Asportastrunk802.1Q(padrãodoIEEE) aceitamtráfegocomesemtag.CasoumframesejatagueadoeleseráencaminhadoparaaVLANreferida.SeumpacotechegarsemtagàportatrunkeleseráencaminhadoparaaVLANdefault(porpadrãoéaVLAN1,maspodeserdefinidapelousuário).
55. Professor Jefferson Costa

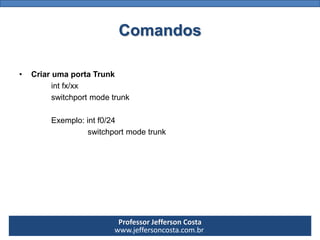

www.jeffersoncosta.com.brComandos
•Criar uma porta Trunk
int fx/xx
switchport mode trunk
Exemplo: int f0/24
switchport mode trunk
56. Professor Jefferson Costa
www.jeffersoncosta.com.brPorta dinâmica
DynamicAuto:todasasportasdosswichesCiscovemconfiguradasdestaforma,porpadrão.ElasetornaráumaportatrunkautomaticamenteseforconectadaaoutraportatrunkouaumaportaDynamicDesirable. SeconectadaaumaportadeacessoaportaDynamicAutotorna-seumaportadeacessotambém.
switchportmodedynamicauto
57. Professor Jefferson Costa
www.jeffersoncosta.com.brPorta dinâmica

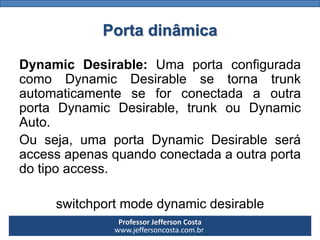

DynamicDesirable:UmaportaconfiguradacomoDynamicDesirablesetornatrunkautomaticamenteseforconectadaaoutraportaDynamicDesirable,trunkouDynamicAuto.
Ouseja,umaportaDynamicDesirableseráaccessapenasquandoconectadaaoutraportadotipoaccess.
switchportmodedynamicdesirable
61. Professor Jefferson Costa
www.jeffersoncosta.com.brComandos
•Para entrar no Modo Administrador
enable
ou, ena
•Para entrar no Terminal de configuração (Configuração global)
(Primeiro tem que estar no Modo Administrador)
configure terminal
ou, conft
•Acessar uma Vlan(tem que estar em Configuração global)
vlanx
Exemplo:vlan2
•Dar nome a Vlan(tem que estar em Configuração global)
nameNomedaVLan
Exemplo: nameteste
•Finalizar o terminal
end
62. Professor Jefferson Costa
www.jeffersoncosta.com.brComandos
•Verificar Vlans(em Modo Administrador)
show vlanbrief
shvlanbrief
•Inserir uma porta a Vlan(tem que estar em Configuração global)
intNúmerodaPorta
switchportaccessVlanx
Exemplo: intf0/9
switchportaccessvlan2
•Inserir um range de portas em uma vlan(tem que estar em Configuração global)
intrange fastEthernetx/x -x
switchportaccess vlanx
Exemplo: intrange fastEthernet0/1 -12
switchportaccess vlan2
Exemplo: intrange f0/1 -12
switchportaccess vlan2
63. Professor Jefferson Costa
www.jeffersoncosta.com.brComandos
•Remover Vlan(tem que estar em Configuração global)
no vlanx
onde x é o número da vlan.
•Salvar (em Modo Administrador)
wr
•Verificar portas (em Modo Administrador)
show run
•Nomear o Switch (tem que estar em Configuração global)
hostnameswitch
•Sair do modo Administrador ou do último comando
exit
66. Professor Jefferson Costa

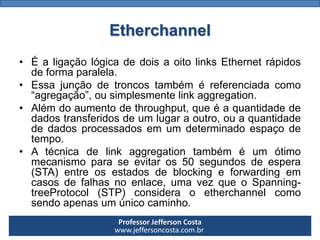

www.jeffersoncosta.com.brEtherchannel
•ÉaligaçãológicadedoisaoitolinksEthernetrápidosdeformaparalela.
•Essajunçãodetroncostambéméreferenciadacomo“agregação”,ousimplesmentelinkaggregation.
•Alémdoaumentodethroughput,queéaquantidadededadostransferidosdeumlugaraoutro,ouaquantidadededadosprocessadosemumdeterminadoespaçodetempo.
•Atécnicadelinkaggregationtambéméumótimomecanismoparaseevitaros50segundosdeespera(STA)entreosestadosdeblockingeforwardingemcasosdefalhasnoenlace,umavezqueoSpanning- treeProtocol(STP)consideraoetherchannelcomosendoapenasumúnicocaminho.
67. Professor Jefferson Costa

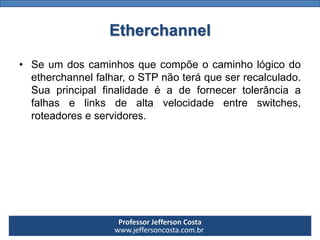

www.jeffersoncosta.com.brEtherchannel
•Seumdoscaminhosquecompõeocaminhológicodoetherchannelfalhar,oSTPnãoteráqueserrecalculado. Suaprincipalfinalidadeéadefornecertolerânciaafalhaselinksdealtavelocidadeentreswitches, roteadoreseservidores.
68. Professor Jefferson Costa

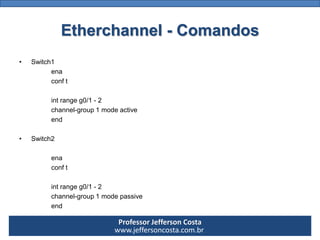

www.jeffersoncosta.com.brEtherchannel-Comandos
•Switch1
ena
conft
intrangeg0/1-2
channel-group1modeactive
end
•Switch2
ena
conft
intrangeg0/1-2
channel-group1modepassive
end
69. Professor Jefferson Costa

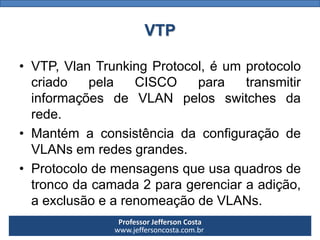

www.jeffersoncosta.com.brVTP
•VTP,VlanTrunkingProtocol,éumprotocolocriadopelaCISCOparatransmitirinformaçõesdeVLANpelosswitchesdarede.
•MantémaconsistênciadaconfiguraçãodeVLANsemredesgrandes.
•Protocolodemensagensqueusaquadrosdetroncodacamada2paragerenciaraadição, aexclusãoearenomeaçãodeVLANs.
70. Professor Jefferson Costa
www.jeffersoncosta.com.brVTP

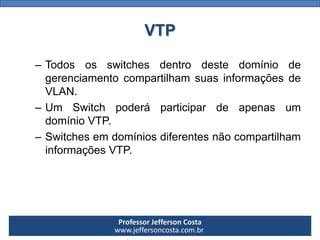

–TodososswitchesdentrodestedomíniodegerenciamentocompartilhamsuasinformaçõesdeVLAN.
–UmSwitchpoderáparticipardeapenasumdomínioVTP.
–SwitchesemdomíniosdiferentesnãocompartilhaminformaçõesVTP.
71. Professor Jefferson Costa
www.jeffersoncosta.com.brModos da VTP
ÉpossívelconfigurarumswitchparaoperaremumdestesmodosdoVTP:
•Servidor—NomododeservidorVTP,vocêpodecriar, modificareexcluirVLANs,bemcomoespecificaroutrosparâmetrosdeconfiguração,comoversãoeremoçãodoVTP, paratodoodomínioVTP.OsservidoresVTPanunciamsuaconfiguraçãodeVLANparaoutrosswitchesdomesmodomínioVTPesincronizamessaconfiguraçãocomoutrosswitchescombasenosanúnciosrecebidosatravésdelinksdetronco.ServidorVTPéomodopadrão.
•Cliente—OsclientesVTPcomportam-sedamesmamaneiraqueosservidoresVTP,masnãoépossívelcriar,alterarnemexcluirVLANsnessesclientes.
72. Professor Jefferson Costa
www.jeffersoncosta.com.brModos da VTP
•Transparente—switchesVTPtransparentesnãoparticipamnoVTP.OsswitchesVTPtransparentesnãoanunciamsuaconfiguraçãodeVLANnemsincronizamessaconfiguraçãocombasenosanúnciosrecebidos.Contudo,elesencaminhamosanúnciosVTPrecebidosatravésdesuasportasdetronconoVTPVersão2.
73. Professor Jefferson Costa

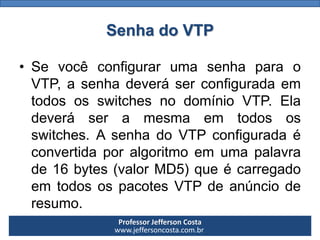

www.jeffersoncosta.com.brSenha do VTP
•SevocêconfigurarumasenhaparaoVTP,asenhadeveráserconfiguradaemtodososswitchesnodomínioVTP.Eladeveráseramesmaemtodososswitches.AsenhadoVTPconfiguradaéconvertidaporalgoritmoemumapalavrade16bytes(valorMD5)queécarregadoemtodosospacotesVTPdeanúncioderesumo.
74. Professor Jefferson Costa

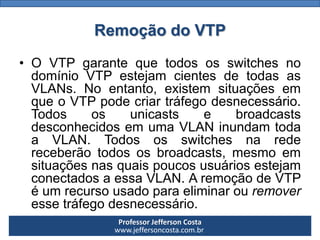

www.jeffersoncosta.com.brRemoção do VTP
•OVTPgarantequetodososswitchesnodomínioVTPestejamcientesdetodasasVLANs.Noentanto,existemsituaçõesemqueoVTPpodecriartráfegodesnecessário. TodososunicastsebroadcastsdesconhecidosemumaVLANinundamtodaaVLAN.Todososswitchesnaredereceberãotodososbroadcasts,mesmoemsituaçõesnasquaispoucosusuáriosestejamconectadosaessaVLAN.AremoçãodeVTPéumrecursousadoparaeliminarouremoveressetráfegodesnecessário.
75. Professor Jefferson Costa

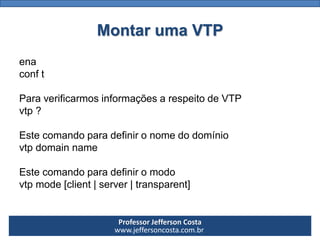

www.jeffersoncosta.com.brMontar uma VTP
ena
conft
ParaverificarmosinformaçõesarespeitodeVTP
vtp?
Estecomandoparadefinironomedodomínio
vtpdomainname
Estecomandoparadefiniromodo
vtpmode[client|server|transparent]
76. Professor Jefferson Costa
www.jeffersoncosta.com.brMontar uma VTP
ExecuteestescomandosparamonitoraraoperaçãoeostatusdoVTP:
showvtpstatus
showvtpcounters
77. Professor Jefferson Costa

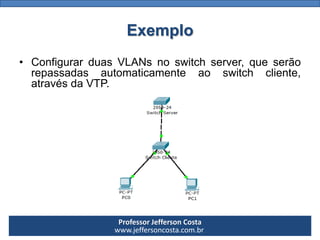

www.jeffersoncosta.com.brExemplo
•ConfigurarduasVLANsnoswitchserver,queserãorepassadasautomaticamenteaoswitchcliente, atravésdaVTP.
78. Professor Jefferson Costa

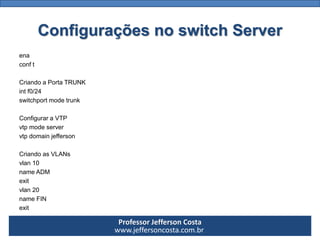

www.jeffersoncosta.com.brConfigurações no switch Server
ena
conft
CriandoaPortaTRUNK
intf0/24
switchportmodetrunk
ConfiguraraVTP
vtpmodeserver
vtpdomainjefferson
CriandoasVLANs
vlan10
nameADM
exit
vlan20
nameFIN
exit
79. Professor Jefferson Costa

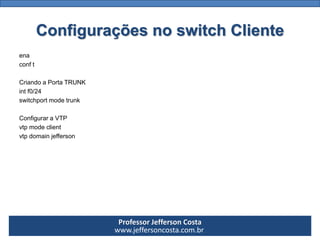

www.jeffersoncosta.com.brConfigurações no switch Cliente
ena
conft
CriandoaPortaTRUNK
intf0/24
switchportmodetrunk
ConfiguraraVTP
vtpmodeclient
vtpdomainjefferson
80. Professor Jefferson Costa

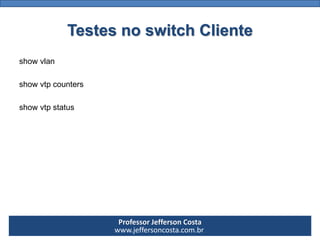

www.jeffersoncosta.com.brTestes no switch Cliente
showvlan
showvtpcounters
showvtpstatus
81. Professor Jefferson Costa
www.jeffersoncosta.com.brSTP
•STP,SpanningTreeProtocoléumprotocoloquepermiteresolverproblemasdeloopemredescomutadascujatopologiaintroduzaanéisnasligações,auxiliandonamelhorperformancedarede.
•OprotocoloSTPpossibilitaainclusãodeligaçõesredundantesentreoscomutadores,provendocaminhosalternativosnocasodefalhadeumadessasligações.Nessecontexto,eleserveparaevitaraformaçãodeloopsentreoscomutadoresepermitiraativaçãoedesativaçãoautomáticadoscaminhosalternativos.
82. Professor Jefferson Costa
www.jeffersoncosta.com.brSTP

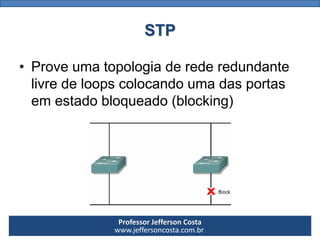

•Prove uma topologia de rede redundante livre de loops colocando uma das portas em estado bloqueado (blocking)
83. Professor Jefferson Costa
www.jeffersoncosta.com.brAlguns comandos
•show spanning-tree
•show spanning-tree active
•show spanning-tree summary
•spanning-tree vlanid priority ?
•spanning-tree vlanid port-priority ?
Dentreoutros,
84. Professor Jefferson Costa

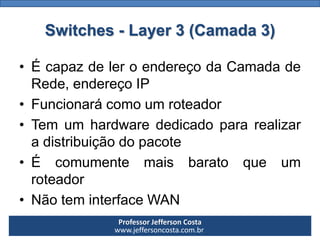

www.jeffersoncosta.com.brSwitches -Layer3 (Camada 3)
•ÉcapazdeleroendereçodaCamadadeRede,endereçoIP
•Funcionarácomoumroteador
•Temumhardwarededicadopararealizaradistribuiçãodopacote
•Écomumentemaisbaratoqueumroteador
•NãoteminterfaceWAN
85. Professor Jefferson Costa

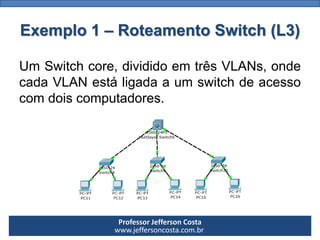

www.jeffersoncosta.com.brExemplo 1 –Roteamento Switch (L3)
UmSwitchcore,divididoemtrêsVLANs,ondecadaVLANestáligadaaumswitchdeacessocomdoiscomputadores.
86. Professor Jefferson Costa
www.jeffersoncosta.com.brExemplo 1 –Roteamento Switch (L3)
•Habilitando ambiente
ena
•Entrando no terminal
conft
•Ativar o roteamento do protocolo IP
iprouting
87. Professor Jefferson Costa
www.jeffersoncosta.com.br
•Adicionando portas as VLANs
intf0/1
switchportaccessvlan100
intf0/2
switchportaccessvlan200
intf0/3
switchportaccessvlan300Exemplo 1 –Roteamento Switch (L3)
88. Professor Jefferson Costa
www.jeffersoncosta.com.br
•Configurar IP em cada VLAN
(você não é obrigado a utilizar classes diferentes)
intVlan100
ipaddress10.0.0.1 255.0.0.0
no shutdown
intVlan200
ipaddress172.16.0.1 255.255.0.0
no shutdown
intVlan300
ipaddress192.168.0.1 255.255.255.0
no shutdownExemplo 1 –Roteamento Switch (L3)
89. Professor Jefferson Costa
www.jeffersoncosta.com.br

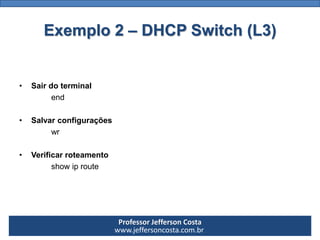

•Sair do terminal
end
•Salvar configurações
wr
•Verificar roteamento
show iprouteExemplo 1 –Roteamento Switch (L3)
90. Professor Jefferson Costa
www.jeffersoncosta.com.br

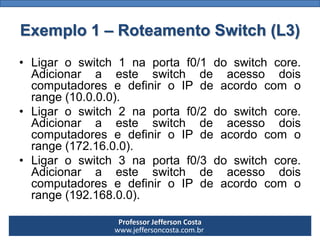

•Ligaroswitch1naportaf0/1doswitchcore. AdicionaraesteswitchdeacessodoiscomputadoresedefiniroIPdeacordocomorange(10.0.0.0).
•Ligaroswitch2naportaf0/2doswitchcore. AdicionaraesteswitchdeacessodoiscomputadoresedefiniroIPdeacordocomorange(172.16.0.0).
•Ligaroswitch3naportaf0/3doswitchcore. AdicionaraesteswitchdeacessodoiscomputadoresedefiniroIPdeacordocomorange(192.168.0.0). Exemplo 1 –Roteamento Switch (L3)
91. Professor Jefferson Costa
www.jeffersoncosta.com.brExemplo 2 –DHCP Switch (L3)
Umswitchcore,divididoemtrêsVLANs,ondedistribuiIP(viaDHCP)paracadaumadelas.
Cadaswitchdeacesso,queestáligadoaoswitchcore, distribuiestesIPsentresoscomputadoresconectados.
92. Professor Jefferson Costa
www.jeffersoncosta.com.br

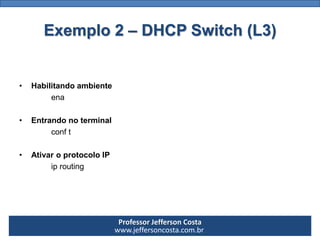

•Habilitando ambiente
ena
•Entrando no terminal
conft
•Ativar o roteamento do protocolo IP
iprouting
Neste “Exemplo 2”, caso não queira que as VLANsdiferentes se comuniquem, não utilize esse comando.
Caso já tenha utilizado o comando, desative o roteamento:
no iproutingExemplo 2 –DHCP Switch (L3)
93. Professor Jefferson Costa
www.jeffersoncosta.com.br

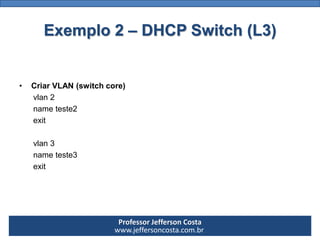

•Criar VLAN (switch core)
vlan100
nameteste1
Exit
vlan200
nameteste2
exit
vlan300
nameteste3
exitExemplo 2 –DHCP Switch (L3)
94. Professor Jefferson Costa
www.jeffersoncosta.com.br

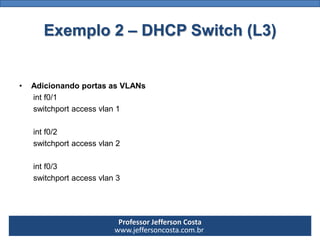

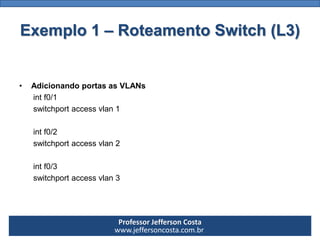

•Adicionando portas as VLANs
intf0/1
switchportaccessvlan100
intf0/2
switchportaccessvlan200
intf0/3
switchportaccessvlan300Exemplo 2 –DHCP Switch (L3)
95. Professor Jefferson Costa
www.jeffersoncosta.com.br

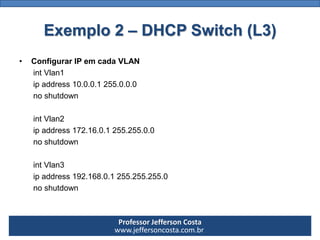

•Configurar IP em cada VLAN
(você não é obrigado a utilizar classes diferentes)
intVlan100
ipaddress10.0.0.1 255.0.0.0
no shutdown
intVlan200
ipaddress172.16.0.1 255.255.0.0
no shutdown
intVlan300
ipaddress192.168.0.1 255.255.255.0
no shutdownExemplo 2 –DHCP Switch (L3)
96. Professor Jefferson Costa
www.jeffersoncosta.com.br
•Configurando o DHCP 1
ipdhcppool dhcp1
network 10.0.0.0 255.0.0.0
default-router10.0.0.1
dns-server 10.0.0.100
ipdhcpexcluded-address10.0.0.1 10.0.0.100
•Configurando o DHCP 2
ipdhcppool dhcp2
network 172.16.0.0 255.255.0.0
default-router172.16.0.1
dns-server 172.16.0.100
ipdhcpexcluded-address172.16.0.1 172.16.0.100
•Configurando o DHCP 3
ipdhcppool dhcp3
network 192.168.0.0 255.255.255.0
default-router192.168.0.1
dns-server 192.168.0.100
ipdhcpexcluded-address192.168.0.1 192.168.0.100Exemplo 2 –DHCP Switch (L3)
97. Professor Jefferson Costa
www.jeffersoncosta.com.br
•Sair do terminal
end
•Salvar configurações
wr
•Verificar roteamento
show iprouteExemplo 2 –DHCP Switch (L3)
98. Professor Jefferson Costa
www.jeffersoncosta.com.brVídeo aulas
•Professor Ramos
https://www.youtube.com/playlist?list=PL00BB47ED11D946BC
•Jefferson Costa
https://www.youtube.com/playlist?list=PLmdpRwEuGm7Wa5ASjzKa_EkCbul2lVRFN
99. Professor Jefferson Costa

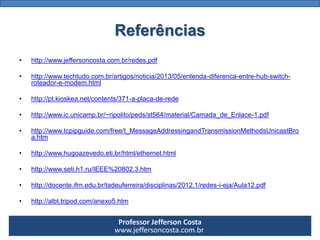

www.jeffersoncosta.com.brReferências
•http://www.jeffersoncosta.com.br/redes.pdf
•http://www.techtudo.com.br/artigos/noticia/2013/05/entenda-diferenca-entre-hub-switch- roteador-e-modem.html
•http://pt.kioskea.net/contents/371-a-placa-de-rede
•http://www.ic.unicamp.br/~ripolito/peds/st564/material/Camada_de_Enlace-1.pdf
•http://www.tcpipguide.com/free/t_MessageAddressingandTransmissionMethodsUnicastBroa.htm
•http://www.hugoazevedo.eti.br/html/ethernet.html
•http://www.seti.h1.ru/IEEE%20802.3.htm
•http://docente.ifrn.edu.br/tadeuferreira/disciplinas/2012.1/redes-i-eja/Aula12.pdf
•http://albt.tripod.com/anexo5.htm
100. Professor Jefferson Costa

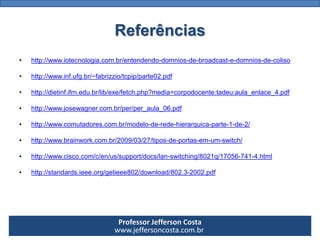

www.jeffersoncosta.com.brReferências
•http://www.iotecnologia.com.br/entendendo-domnios-de-broadcast-e-domnios-de-coliso
•http://www.inf.ufg.br/~fabrizzio/tcpip/parte02.pdf
•http://dietinf.ifrn.edu.br/lib/exe/fetch.php?media=corpodocente:tadeu:aula_enlace_4.pdf
•http://www.josewagner.com.br/per/per_aula_06.pdf
•http://www.comutadores.com.br/modelo-de-rede-hierarquica-parte-1-de-2/
•http://www.brainwork.com.br/2009/03/27/tipos-de-portas-em-um-switch/
•http://www.cisco.com/c/en/us/support/docs/lan-switching/8021q/17056-741-4.html
•http://standards.ieee.org/getieee802/download/802.3-2002.pdf
101. Professor Jefferson Costa
www.jeffersoncosta.com.brLinks para estudo
•http://blog.ccna.com.br/2011/01/04/usando-o-roteador-switch-cisco-como-um-servidor- dhcp/
•http://edvanbarros.wordpress.com/2012/10/08/roteador-cisco-como-servidor-dhcp/
•http://www.ti-redes.com/switching/configura%C3%A7%C3%B5es%20basicas/comandos- basicos-de-switches-cisco/
•http://ptconfigs.blogspot.com.br/2011/06/roteamento-com-switch-layer-3.html
•http://slideplayer.com.br/slide/345284/
•http://www.dltec.com.br/blog/cisco/ccna/configurando-roteamento-entre-vlans-em-um- switch-layer-3-cisco/
•http://edvanbarros.wordpress.com/2013/03/19/roteando-vlans-com-switch-layer-3-cisco/
•http://www.cisco.com/cisco/web/support/BR/8/83/83259_21.html
102. Professor Jefferson Costa

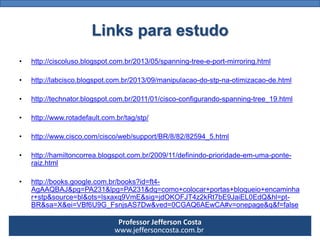

www.jeffersoncosta.com.brLinks para estudo
•http://ciscoluso.blogspot.com.br/2013/05/spanning-tree-e-port-mirroring.html
•http://labcisco.blogspot.com.br/2013/09/manipulacao-do-stp-na-otimizacao-de.html
•http://technator.blogspot.com.br/2011/01/cisco-configurando-spanning-tree_19.html
•http://www.rotadefault.com.br/tag/stp/
•http://www.cisco.com/cisco/web/support/BR/8/82/82594_5.html
•http://hamiltoncorrea.blogspot.com.br/2009/11/definindo-prioridade-em-uma-ponte- raiz.html
•http://books.google.com.br/books?id=ft4- AgAAQBAJ&pg=PA231&lpg=PA231&dq=como+colocar+portas+bloqueio+encaminhar+stp&source=bl&ots=lsxaxq9VmE&sig=jdOKOFJT4z2kRt7bE9JaiEL0EdQ&hl=pt- BR&sa=X&ei=VBf6U9G_FsnjsAS7Dw&ved=0CGAQ6AEwCA#v=onepage&q&f=false
