Km16+888.575(EVA)
Km17+190.957(EVA)
Km17+302.407(EVA)
840006
840005
850021
Km17+513.476(EVA)
SECÇÃO
Km17+159.907(EVA)
ESTAÇÃO
CAMPOLIDE
SECÇÃO C1.005.D EMP.
613/02
POSTO
TRACÇÃO
C1.OO5.D
PV 199
840001
Km16+934.705(EVA)
Km16+952.534(EVA)
C1.005.D
Km17+295.957(EVA)
ALTERAÇÕES
PROLONGAMENTO DA LINHA VERMELHA
SÃO SEBASTIÃO - CAMPOLIDE
DATA DES. VERIF.
Aprov.
Verif.
Proj.
Des.
Alter.
Substitui
Substituido
Nº SAP Versão
Folha
Des. nºEscalas F
ESTRUTURAS
84º E 85ºTROÇOS (PARCIAIS) S.SEBASTIÃO II-TÉRMINO
Aprovado/Pronto Execução
Data
As
indicated
DEZEMBRO 2008
ESTAÇÃO CAMPOLIDE

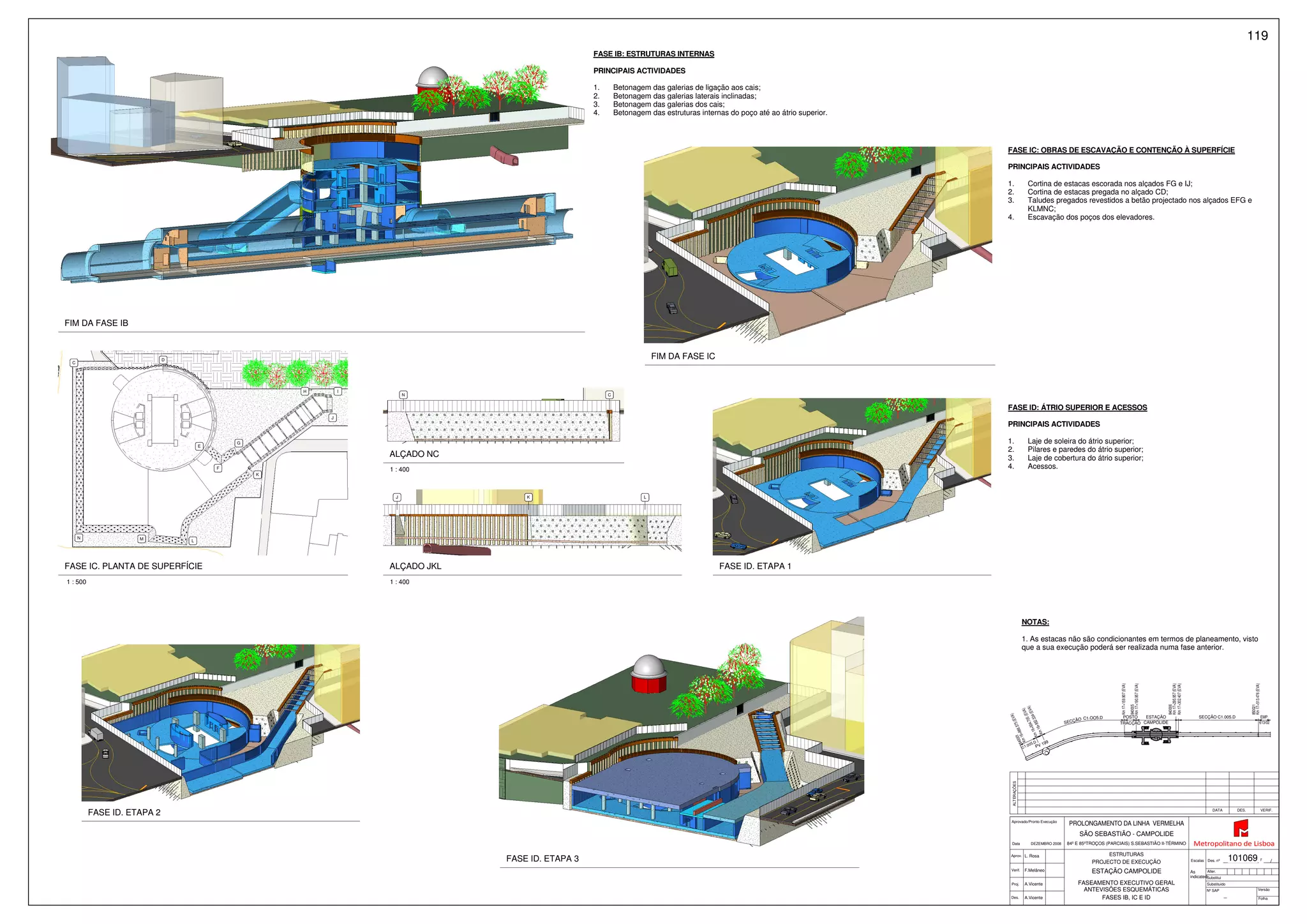

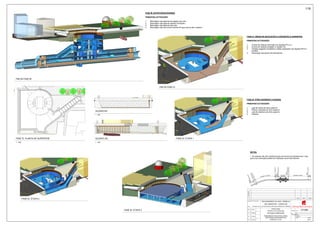

FASEAMENTO EXECUTIVO GERAL
ANTEVISÕES ESQUEMÁTICAS
101069PROJECTO DE EXECUÇÃO
F.Melâneo
A.Vicente
A.Vicente
L. Rosa
119
FASES IB, IC E ID
FASE IC: OBRAS DE ESCAVAÇÃO E CONTENÇÃO À SUPERFÍCIE
PRINCIPAIS ACTIVIDADES
1. Cortina de estacas escorada nos alçados FG e IJ;
2. Cortina de estacas pregada no alçado CD;
3. Taludes pregados revestidos a betão projectado nos alçados EFG e
KLMNC;
4. Escavação dos poços dos elevadores.
NOTAS:
1. As estacas não são condicionantes em termos de planeamento, visto
que a sua execução poderá ser realizada numa fase anterior.
FIM DA FASE IB
FIM DA FASE IC
FASE IB: ESTRUTURAS INTERNAS
PRINCIPAIS ACTIVIDADES
1. Betonagem das galerias de ligação aos cais;
2. Betonagem das galerias laterais inclinadas;
3. Betonagem das galerias dos cais;
4. Betonagem das estruturas internas do poço até ao átrio superior.
FASE ID. ETAPA 1
FASE ID. ETAPA 3
FASE ID. ETAPA 2
FASE ID: ÁTRIO SUPERIOR E ACESSOS
PRINCIPAIS ACTIVIDADES
1. Laje de soleira do átrio superior;
2. Pilares e paredes do átrio superior;
3. Laje de cobertura do átrio superior;
4. Acessos.
1 : 500
FASE IC. PLANTA DE SUPERFÍCIE
1 : 400
ALÇADO NC
1 : 400
ALÇADO JKL
