- 1. RIGID PAVEMENTS R AV I K U M A R G A R R E
- 2. RIGID PAVEMENT • The pavements which possess flexural strength, are called as rigid pavements. • The rigid pavements are generally made of Portland cement concrete and some times called as ‘CC Pavements’. • The cement concrete used for rigid pavements is called as ‘Pavement Quality Concrete (PQC)’. • The CC pavement slabs made of PQC are generally expected to sustain up to 45kg/𝑐𝑚2 of flexural stresses. • The rigid or CC pavements are designed and constructed for a design life of 30 years.
- 3. WHERE RIGID PAVEMENT NEEDED? • Rigid pavements are usually provided under the circumstances: Very heavy rainfall Poor soil conditions Poor drainage Extreme climatic conditions Combination of some of these conditions which may lead to development of cracks in pavements.
- 4. STRUCTURE OF RIGID PAVEMENT
- 5. COMPONENTS OF RIGID PAVEMENTS • The components of rigid pavement from bottom to top consists of Soil subgrade Granular sub-base course Base course CC/PQC pavement slab
- 6. SUBGRADE SOIL • The subgrade soil of rigid pavements consists of natural or selected soil from identified locations fulfilling specified requirements. • Should contain require density and other engineering properties. • Subgrade ultimately supports all layers of rigid pavement and traffic loads. • The compressive stresses transmitting to subgrade are very low. • No need to consider allowable vertical strains.
- 7. SUBGRADE • The strength of soil subgrade is generally evaluated by adopting plate load test. • Relatively using a large diameter plate. • The load supporting capacity of the subgrade is assessed in terms of modulus of subgrade reaction, K. • Modulus of subgrade reaction, K may be defined as the pressure sustained per unit deformation of subgrade at specified deformation or penetration, using specified plate size (75cm). • But for highway pavements, plate of 30cm is used
- 8. GRANULAR SUB & DRAINAGE LAYER • The granular sub-base course (GSB) serve as drainage layer. • To prevent early failures due to excessive moisture in the subgrade soil. • Crushed stone aggregates are preferred in the granular sub-base course, contains high permeability. • Coarse graded aggregates with low % of fines (<5.0% finer than 0.075mm size) will serve as a good drainage layer.
- 9. DRAINAGE LAYER An effective drainage layer under the CC pavement has the following benefits: Increase in service life and improved performance of the CC pavements Prevention of early failures of the rigid pavement due to pumping and blowing Protection of the subgrade against frost action in frost susceptible areas.

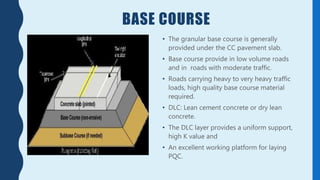

- 10. BASE COURSE • The granular base course is generally provided under the CC pavement slab. • Base course provide in low volume roads and in roads with moderate traffic. • Roads carrying heavy to very heavy traffic loads, high quality base course material required. • DLC: Lean cement concrete or dry lean concrete. • The DLC layer provides a uniform support, high K value and • An excellent working platform for laying PQC.
- 11. PQC PAVEMENT SLAB • M-40 cement concrete mix with a minimum flexural strength of 45 kg/𝑐𝑚2 is to be used. • The CC pavement slab should withstand the flexural stresses caused by 1) Heavy traffic loads 2) Wrapping effects due to temperature • High quality CC mix with high flexural strength is used for the construction of the PQC slab. • Using steel reinforcement is not to bear flexural/ tensile stresses developed.
- 12. RIGID PAVEMENT Subgrade Sub-base Base Separation layer PQC pavement Joints in CC pavements A separation layer consisting of a suitable type of membrane is laid over the DLC base course before laying PQC slab in order to prevent bonding between two.
- 13. COMPONENTS OF RIGID PAVEMENT
- 14. JOINTS IN RIGID PAVEMENT • Joints are important components in CC pavements and they have important functions to perform. • Main purpose of joints is to relieve part of the stresses developed due to the temperature variations in the slabs. • The joints in CC pavements are: a) Longitudinal joints b) Transverse joints
- 15. LONGITUDINAL JOINTS • In pavements of width of 4.5m, there is a need to provide a longitudinal joint. • The need of these longitudinal joints is to prevent the shrinkage cracks, happening during the initial period of curing. • However, as the lane of width is generally 3.5m to 3.75m, longitudinal joints provided between each traffic lane. Note: Shrinkage cracks develop in slabs whose width or length is more than 4.5 to 5m.
- 16. LONGITUDINAL JOINTS • Tie bars are provided along the longitudinal joints, in order to prevent opening up of the longitudinal joints in due course. • These tie bars of specified diameter and length are embedded at the specified spacing, at the mid depth of the pavement slab.
- 17. FUNCTIONS OF LONGITUDINAL JOINTS • The longitudinal joints function as: a) Contraction joints and prevent development of additional shrinkage cracks in the longitudinal directions b) Warping joints and relieve part of warping stresses c) Lane markings in highways with two or more lanes
- 18. TRANSVERSE JOINTS • The transverse joints are subdivided into three categories, based on their purpose: a) Contraction joints b) Expansion joints c) Construction joints
- 19. CONTRACTION JOINTS • Contraction joints are formed by cutting grooves across the pavement slab at regular intervals. • Width of grooves – not less than 3mm • Depth of grooves – 25 to 30% of pavement thickness • Spacing of two contraction joints – 4 to 5m. • The shrinkage cracks formed below the each groove at the weekend section, during the initial period of curing. • Any how, shrinkage cracks formed at regular intervals, to prevent those cracks, contraction joints were provided.
- 20. CONTRACTION JOINTS • Any how, shrinkage cracks developed along these predetermined sections only. • In order to prevent widening of these fine shrinkage cracks, steel reinforcement may be provided across the contraction joints. • If no reinforcement provided across the contraction joints, such a pavement is – ‘pain jointed concrete pavement’. • Closely spaced contraction joints help to relieve part of the warping stresses developed.
- 21. EXPANSION JOINTS • CC pavement slabs, during the summer get expanded & during winter gets contracted. • To accommodate these variations in length, expansion joints are provided in transverse pavement at long intervals. • The expansion joints are formed as through joints across the full depth of the slab with about 20mm gap between the two slabs. • The expansion joints provided after a number of contraction joints
- 22. EXPANSION JOINTS • The CC pavement slab is separated across the expansion joint, therefore there is no load transfer across the expansion joint. • Week cross section of the CC pavement. • In order to strengthen these sections and to provide load transfer across the expansion joint, suitable dowel bars are designed and installed during construction.
- 23. CONSTRUCTION JOINTS • Construction joints formed due to gaps between the continuous construction works. • During the construction of CC pavements when the concreting work is stopped at the end of the day, the concrete paving is suspended, a construction joint is formed. • Construction joints formed across the pavement, about full depth. • It is necessary to provide dowel bars across these joints for load transfer. • It is better to make a construction joint as expansion joint or contraction joint, if possible.
- 24. COMPONENTS OF RIGID PAVEMENT
- 25. FACTORS AFFECTING OF RIGID PAVEMENT • The factors which affect the design and performance of rigid pavement or CC pavements are listed below: a) Wheel load b) Temperature variations at the location of the road c) Types of joints and their spacing d) Sub-grade and other supporting layers
- 26. FACTORS AFFECTING DESIGN • The two major factors primarily to be considered for the design of rigid pavement are: a) Heavy traffic loads b) Temperature variation between top and bottom of the CC pavement slab • The other factors which affect the design and performance of rigid pavements are, a) Temperature stresses due to expansion and contraction of rigid pavement during summer and winter b) Volumetric changes in subgrade due to changes in moisture and temperature c) Loss of subgrade support due to some reasons at some locations
- 27. WHEEL LOAD • The performance of rigid pavement and its service life depends on the actual magnitude of the heaviest wheel loads of vehicles and their number of repetitions during the design life. • The wheel loads of highest magnitude cause, flexural stresses in rigid pavement. • The important factors associated with wheel loads are: a) Magnitude of load/ contact pressure of loaded area b) Location of the loading on the CC pavement slab c) Repetitions of loads of different magnitudes during the design life
- 28. MAGNITUDE OF LOAD • The magnitude of wheel load directly affects the stresses in CC pavement. • Higher the magnitude of wheel load will cause higher stress in pavement. • The wheel load expressed in terms of the following: a) Total load, P (Kg) b) Contact pressure, p (Kg/𝑐𝑚2) c) Contact area, A (𝑐𝑚2 ) = 𝜋𝑎2 𝑝 where, a = radius of equivalent circular area of contact • Assume that the wheel loads acts on circular contact area.
- 29. LOCATION OF LOAD APPLICATION ON SLAB • The load stresses on slab are vary depending upon the location on which the wheel load acts. • Following three locations are considered in the analysis and design of CC pavements: a) Interior load, ‘i’ applied at a location away from the edges of the slab b) Corner load, ‘c’ applied at the corner region of the slab c) Edge load, ‘e’ applied at the edge region of the slab • The magnitude of stress due to a given wheel load applied at the corner region is the highest in comparison to the stresses due to the same load applied at the edge or interior region of a CC pavement. • The load stress applied at the interior region of a CC pavement, away from the edges is found to be the lowest in comparison to the stresses due to same load applied at the edge and corner regions of the pavement.
- 30. REPETITIONS OF LOADS • The repeated application of light loads do not cause any structural deterioration to roads. Therefore it is essential to measure the loads of higher magnitude which could cause significant stress levels in the rigid pavement. • For design of rigid pavement, it is essential to a) Estimate the actual magnitude of heavier groups of axle or wheel loads b) Determine the flexural stresses developed due to these heavy loads c) Estimate the number of repetitions of each load group to use the road during the design life • Repeated application of high magnitudes of stresses are, to cause failures due to fatigue in CC pavement structures. • The plain CC specimens or slabs can withstand against number of repetitions of load to cause stresses, if the magnitude of applied stress is less than 44% of its flexural strength.
- 31. STRESS RATIO • The ratio of flexural stresses due to a load applied on a CC pavement to its flexural strength is called the ‘stress ratio’. • From the fatigue studies on CC pavements, number of repetitions up to fatigue failure, have been determined by using various values stress ratio between 0.45 to 0.90. • While designing a CC pavement, if stress ratio is less than 0.44, there is no possibility of fatigue failure.
- 32. STRESS RATIO IMPORTANCE OF DESIGN LOAD • The repeated application of any loads of magnitude less than design load would cause, lower stress ratios. • Hence, there will be no structural deterioration of the pavement due to these loads. • The design wheel load should be carefully decided taking into account wheel load distribution studies and the expected no. of repetition of loads of different magnitudes during the design life of • The movement of even a small number excessively over loaded vehicles with higher magnitude of loads than the design load, can develop tensile cracks at some locations of the CC slab. • It is suggested that, axle load studies should be conducted on heavy vehicles in order to arrive at the design axle load. • It is necessary to estimate the possible movement of over loaded vehicles with loads exceeding the
- 33. AXLE LOAD DISTRIBUTION STUDIES • Axle load or wheel load distribution studies are carried out on the selected heavy vehicles, that actually moving on the existing roads. • It is also desirable to note the wheel base or spacing between the axles of the heavy commercial vehicles (HCV). • The objectives of the study are a) To arrive at the design load b) To assess the effect of repeated application of stresses due to loads that are heavier than the selected design load which cause stress ratios exceeding 0.44 and the number of repetitions of such heavier loads expected during the design life. • These data are necessary at the design stage for the fatigue analysis.
- 34. DETERMINATION OF DESIGN LOAD • First of all complete the measurement of axle/ wheel loads on the selected samples of heavy vehicles (with single, tandem and multiple axles) at the identified locations. • Axle load distribution table is prepared, by groping the loads at convenient load intervals or ranges. • The average of each load group is taken as the magnitude of the applied load and the expected no. of repetitions of the vehicles of each range during the design life is estimated. • The total number of axle loads of each interval noted during project preparation studies are noted as the initial traffic.
- 35. CONTD., • Considering the different vehicle classes, their growth rate, construction period and design life of the CC pavement, the total number of repetition of loads of each group load during design life of the CC pavement are estimated. • Based on the above data, the cumulative frequency distribution table or diagram (representing load values and the total number of repetitions during design life) is prepared. • From this table or diagram, 98th percentile load (which will be exceeded by only by 2.0%) may be taken as the ‘Design load’. • It is also desirable to consider a ‘load safety factor’ of about 1.2 to account for the possibility of further over loading of the heavy vehicles.
- 36. DAILY VARIATION IN TEMPERATURE • The daily variation in atmospheric temperature causes difference in temperature between the top and bottom of the CC pavement slab. This results in warping of slab and development of flexural stresses.
- 37. TEMPERATURE DURING DAY • The temperature difference between the top and bottom of the CC pavement results in differential expansion the slab causing it to warp or bend. • The temperature difference during day is given by: 𝑡0C = (𝑡1 − 𝑡2)0C where, 𝑡1= maximum temperature at top of the pavement during day 𝑡2 = the temperature at the bottom of the pavement during night
- 38. TEMPERATURE DURING NIGHT • At late night top of the slab becomes colder resulting in warping of the slab. • The temperature difference during day is given by: 𝑡0 C = (𝑡1 − 𝑡2)0 C where, 𝑡1= minimum temperature at top of the pavement during night 𝑡2 = the corresponding temperature at the bottom of the pavement during night
- 39. NO WARPING CONDITION • During the two short durations with in 24 hours, the temperatures at top and bottom of the slabs are equal, no warping will takes place. • This stage of the CC pavement is called as ‘no warping condition’ of the pavement.
- 40. STRESSES IN RIGID PAVEMENT • Different types of stresses developed in CC pavements. The major types of stresses in CC pavements consists of: a) Wheel load stresses caused by heavy wheel loads b) Warping stresses caused by temperature differential between the top and bottom of the pavement. • It is possible to determine the stresses developed due to wheel loads, warping and contraction of CC slab and it not possible estimate the magnitude of stresses as result of volumetric changes in subgrade.
- 41. WHEEL LOAD STRESSES • Westergaard gave theoretical formulae to determine the stresses caused due to wheel load applying on the rigid pavements. • For this he carried out the following assumptions on rigid pavements: a) Cement concrete slab is homogeneous b) It is thin plastic plate c) The subgrade reaction being vertical and proportional to the deflection • Westergaard’s equations for stresses due to wheel load applied at the three critical locations of interior, edge and corner as given below:
- 42. CONTD., • Load stress, Si due to interior loading, Si = 0.316 P h2 4log10(l b) + 1.069 • Load stress, Se due to edge loading, Se = 0.572 P h2 4log10(l b) + 0.359 • Load stress, Sc due to corner loading, Sc = 3𝑃 ℎ2 1 − 𝑎 2 𝑙 0.6 Here, h = slab thickness, cm P = Wheel load, kg a = radius of wheel load distribution, cm l = radius of relative stiffness, cm b = radius of resisting section
- 43. CONTD., • Maximum stress produced by a wheel at corner does not exist around the load, but it occurs at some distance X along the diagonal. This distance X from the corner is given by the relation X = 2.58 𝑎𝑙 Here, X = distance from apex of slab corner to section of maximum stress along the corner bisector or diagonal, cm a = radius of wheel load distribution, cm l = radius of relative stiffness, cm
- 44. CONTD., Radius of relative stiffness: • Westergaard defined, ‘radius of relative stiffness’, l which is expressed by the equation, l = 𝐸ℎ3 12𝐾 1−µ2 1/4 Here, l = radius of relative stiffness, cm h = slab thickness, cm E = modulus of elasticity of cement concrete, kg/cm2 µ = Poisson’s ratio for concrete = 0.15 K = modulus of subgrade reaction, kg/cm3
- 45. CONTD., Equivalent radius of resisting section: • According to Westergaard, the equivalent radius of resisting section is approximated, in terms of radius of load distribution and slab thickness, b = 1.6a2 + h2 −0.675h Here, b = equivalent radius of resisting section, cm when ‘a’ is less than 1.724h a = radius of wheel load distribution, cm h = slab thickness, cm When ‘a’ is greater than 1.724h, b = a
- 46. TEMPERATURE STRESSES • Two types of stresses are produced due to temperature variations in concrete pavements: a) Warping stresses due to temperature differential between the top and bottom of the pavement as a result of daily variation in temperature at the location and b) Frictional stresses due to over all increase or decrease in temperature of the pavement slab as a result of seasonal variation in temperature at the location
- 47. WARPING STRESSES • Warping stress at interior, 𝑆𝑡(𝑖) is given by, 𝑺𝒕(𝒊) = 𝑬𝒆𝒕 𝟐 𝑪 𝒙+µ𝑪 𝒚 𝟏−µ 𝟐 • Warping stresses at the edge, 𝑆𝑡(𝑒) is given by, 𝑺𝒕(𝒆) = 𝑪 𝒙 𝑬𝒆𝒕 𝟐 or 𝑪 𝒚 𝑬𝒆𝒕 𝟐 (whichever is higher) • Warping stresses at corner, 𝑆𝑡(𝑐) is given by, 𝑺𝒕(𝒄) = 𝑬𝒆𝒕 𝟑(𝟏−µ) 𝒂 𝒍
- 48. CONTD., Here, E = modulus of elasticity of concrete e = thermal coefficient of concrete per degree centigradeType equation here. t = temperature differential between the top and bottom of the slab µ = Poisson’s ratio of cement concrete 𝐶 𝑥 = coefficient in direction X which depends on the ratio, 𝐿 𝑥 𝑙 𝐶 𝑦 = coefficient in direction Y which depends on the ratio, 𝐿 𝑦 𝑙
- 49. FRICTIONAL STRESSES 𝑆𝑓 = 𝑊𝐿 𝑐 𝑓 / 2 × 104 Here, 𝑠𝑓 = stress developed due to inter-face friction in cement concrete pavement per unit area, kg/cm2 W = unit weight of concrete (about 2400 kg/cm3) f = coefficient of friction at the interface (maximum value is about 1.5) Lc = spacing between the contraction joint = slab length, m B = slab width
- 50. DESIGN OF RIGID PAVEMENT • The design wheel load is first decided on relevant axle load studies and analysis. • Based on the locality where the pavement is to be constructed, the temperature differentials for pavement thicknesses are estimated. • The supporting layers of the rigid pavement such as subgrade, sub-base layer and base course layers are decided and the subgrade modulus is either determined or estimated. • The spacing between the longitudinal joints, Lc to provided, during the initial period of curing. • A trial thickness of pavement is first assumed, the load and warping stress values at pavement edge are determined using the appropriate stress equations. If total value of stress exceed the permissible limit, the trial is repeated assuming a higher pavement thickness. • The factor of safety of the trial thickness of the pavement is worked out by taking the ratio of flexural strength to flexural stresses.
- 51. CONTD., • Design life should be estimated. • If the stress ratios exceeding 0.44 due to the higher loading are noted and then fatigue analysis is carried out based on the number of repetitions during the design life. • If the assumed thickness is failed, the next trail is made after suitably revising the thickness. • The total of the edge load stress due to the heaviest load and the edge warping stress on summer mid day is calculated, if the total thickness is less than flexural strength of CC (45 kg/cm2), the design is accepted; otherwise the thickness is further revised until the highest possible total stress value does not exceed the flexural strength.
