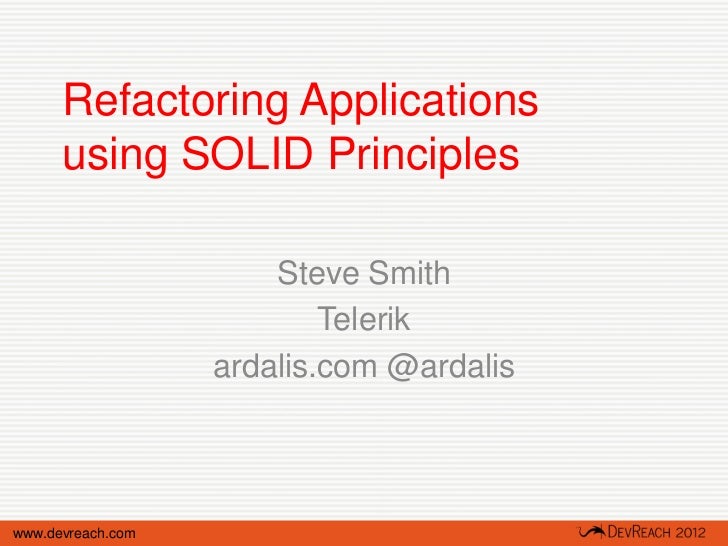

Refactoring Applications using SOLID Principles Steve Smith Telerik ardalis.com @ardaliswww.devreach.com

2.
   www.devreach.com

3.

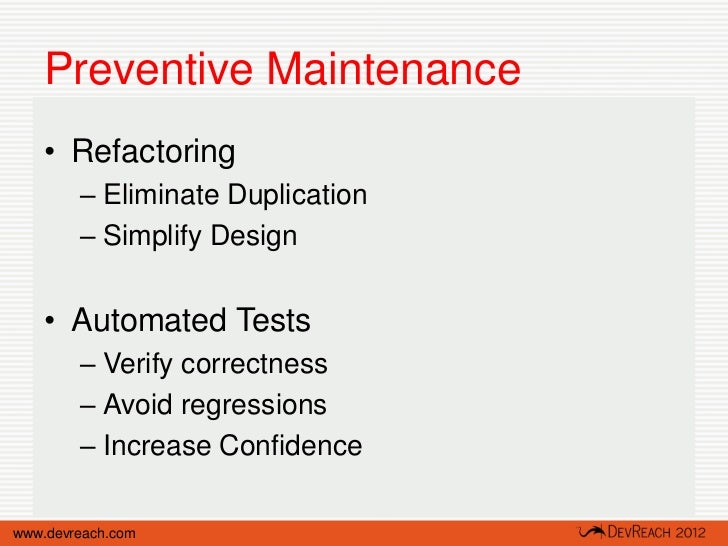

Preventive Maintenance • Refactoring – Eliminate Duplication – Simplify Design • Automated Tests – Verify correctness – Avoid regressions – Increase Confidencewww.devreach.com

4.

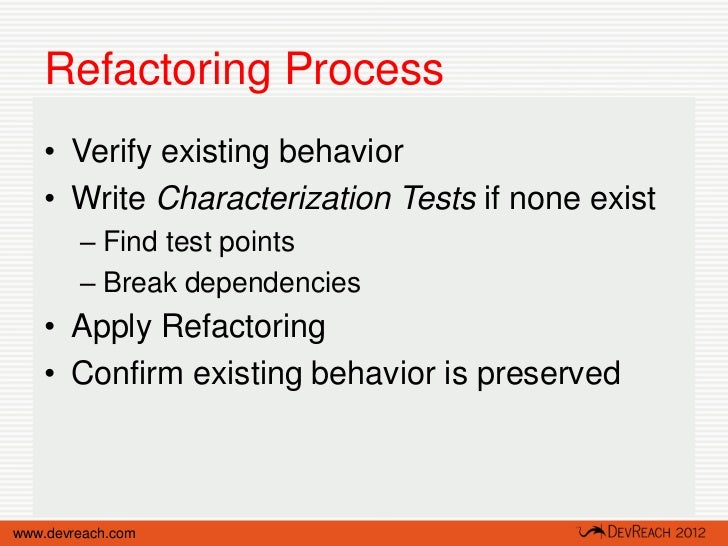

Refactoring Process • Verify existing behavior • Write Characterization Tests if none exist – Find test points – Break dependencies • Apply Refactoring • Confirm existing behavior is preservedwww.devreach.com

5.

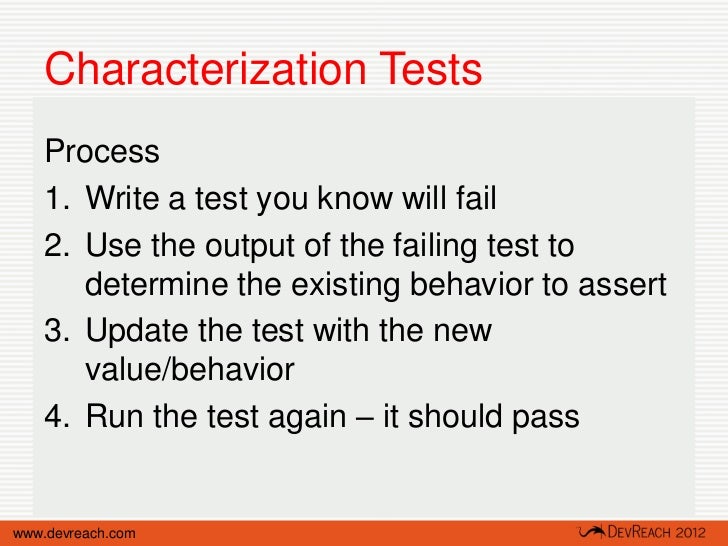

Characterization Tests Process 1. Write a test you know will fail 2. Use the output of the failing test to determine the existing behavior to assert 3. Update the test with the new value/behavior 4. Run the test again – it should passwww.devreach.com

6.
SOLID Principles http://flickr.com/photos/kevinkemmerer/2772526725

7.

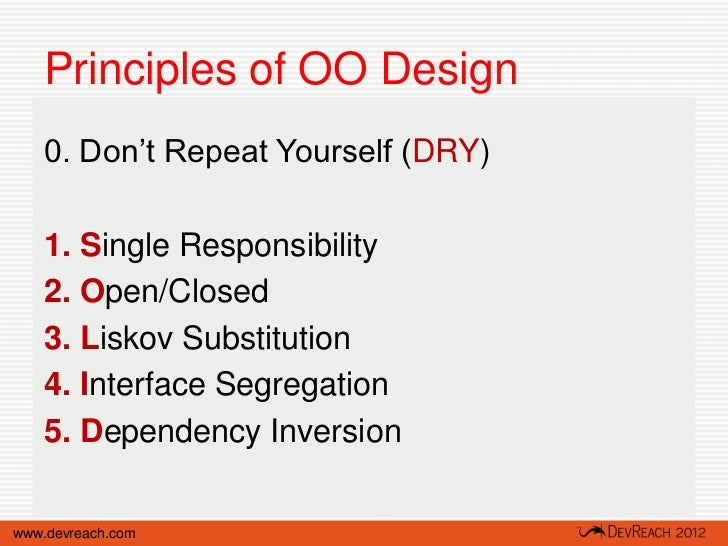

Principles of OO Design 0. Don’t Repeat Yourself (DRY) 1. Single Responsibility 2. Open/Closed 3. Liskov Substitution 4. Interface Segregation 5. Dependency Inversionwww.devreach.com

8.

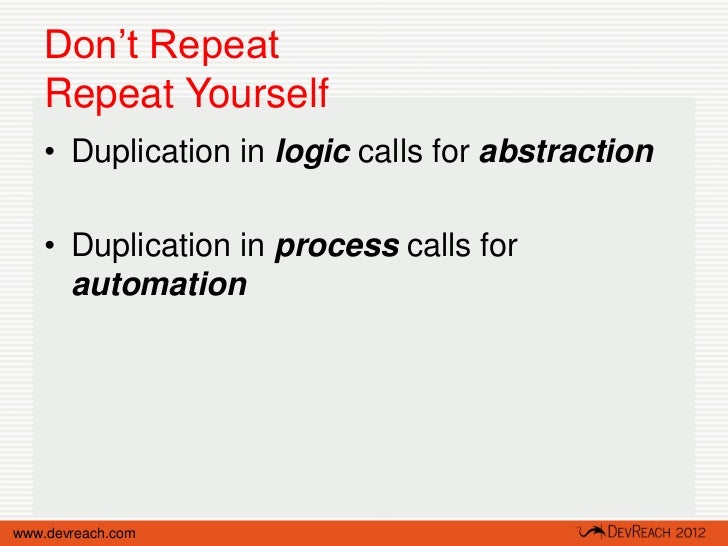

Don’t Repeat Repeat Yourself • Duplication in logic calls for abstraction • Duplication in process calls for automationwww.devreach.com

9.

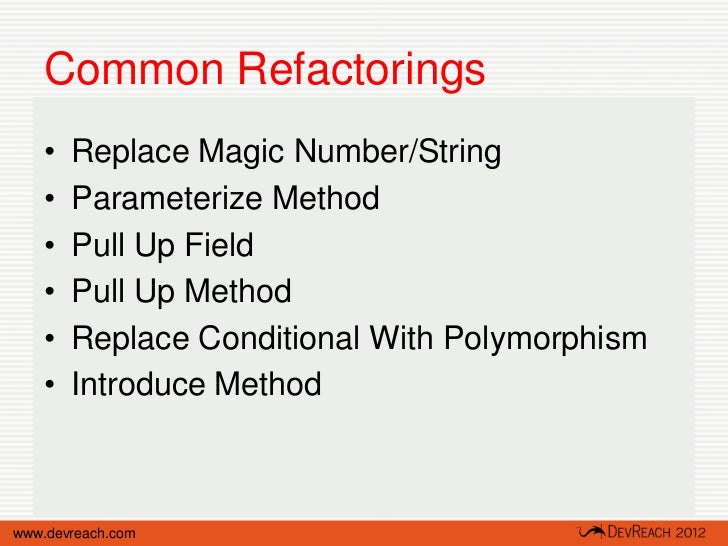

Common Refactorings • Replace Magic Number/String • Parameterize Method • Pull Up Field • Pull Up Method • Replace Conditional With Polymorphism • Introduce Methodwww.devreach.com

10.

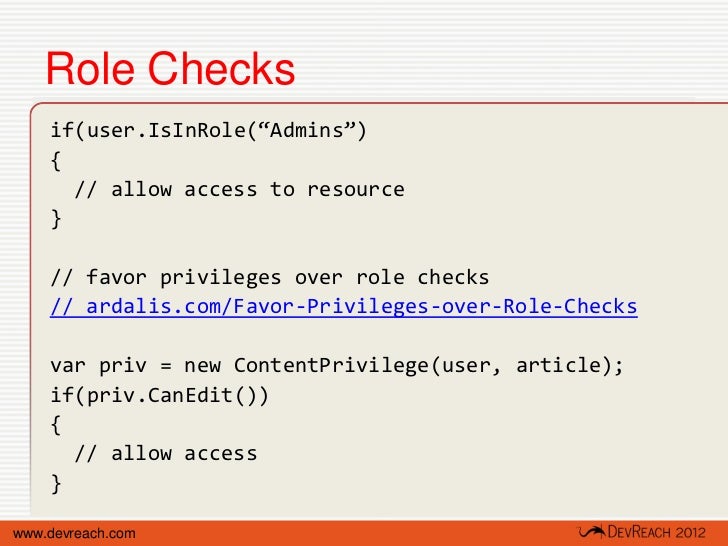

Role Checks if(user.IsInRole(“Admins”) { // allow access to resource } // favor privileges over role checks // ardalis.com/Favor-Privileges-over-Role-Checks var priv = new ContentPrivilege(user, article); if(priv.CanEdit()) { // allow access }www.devreach.com

11.

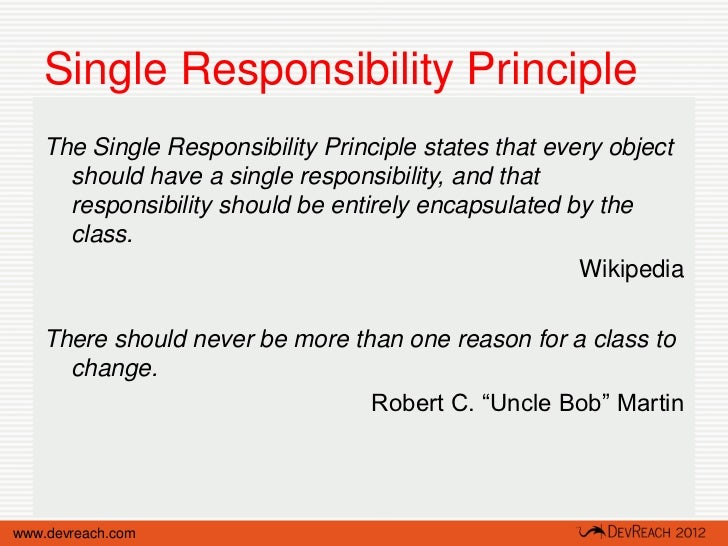

Single Responsibility Principle The Single Responsibility Principle states that every object should have a single responsibility, and that responsibility should be entirely encapsulated by the class. Wikipedia There should never be more than one reason for a class to change. Robert C. “Uncle Bob” Martinwww.devreach.com

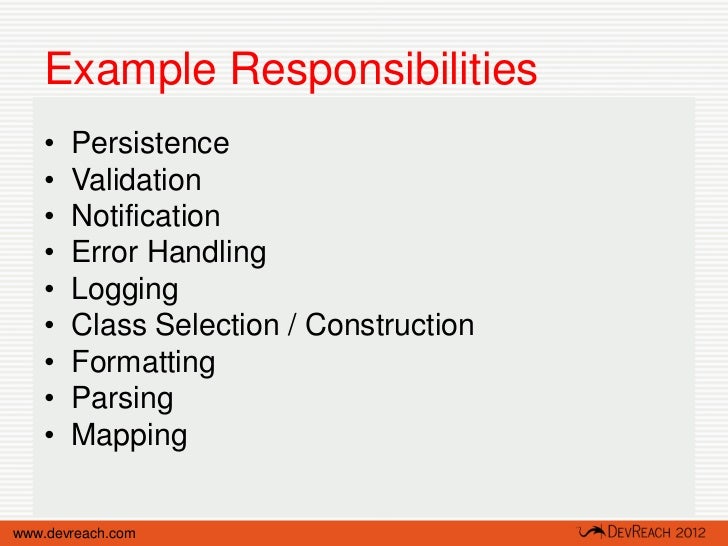

12.
Example Responsibilities • Persistence • Validation • Notification • Error Handling • Logging • Class Selection / Construction • Formatting • Parsing • Mappingwww.devreach.com

13.

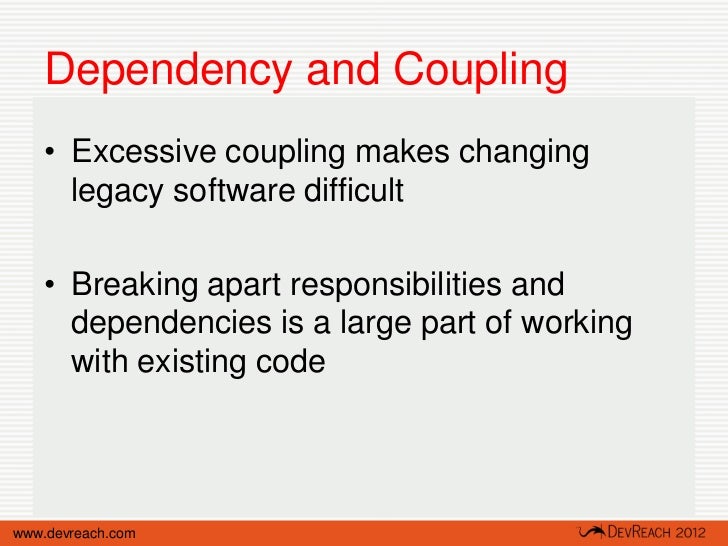

Dependency and Coupling • Excessive coupling makes changing legacy software difficult • Breaking apart responsibilities and dependencies is a large part of working with existing codewww.devreach.com

14.

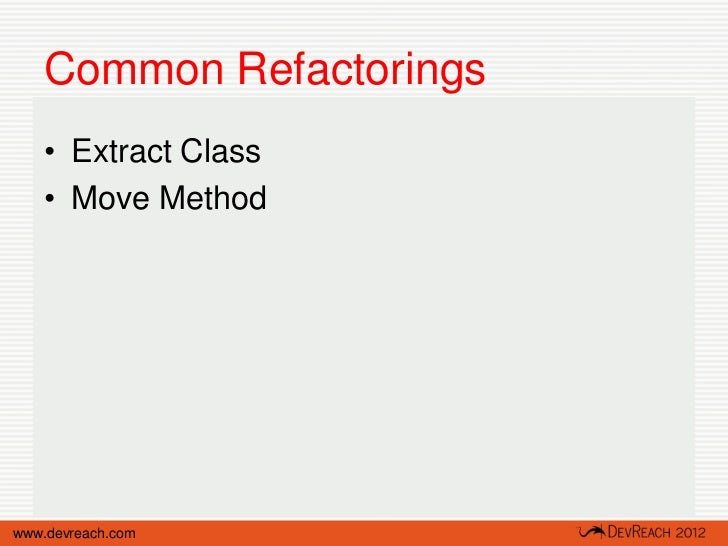

Common Refactorings • Extract Class • Move Methodwww.devreach.com

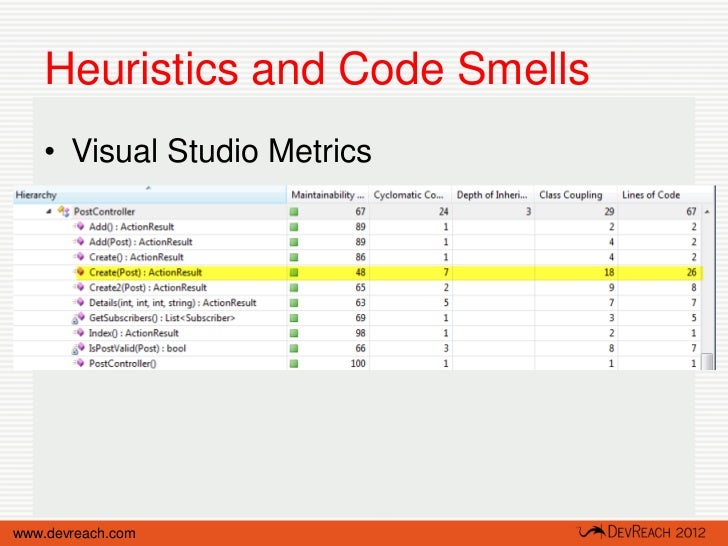

15.
Heuristics and Code Smells • Visual Studio Metricswww.devreach.com

16.

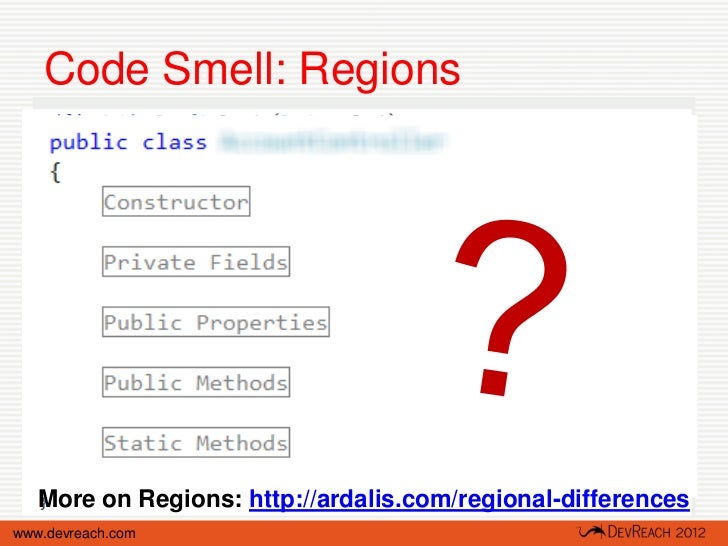

Code Smell: Regions More on Regions: http://ardalis.com/regional-differenceswww.devreach.com

17.

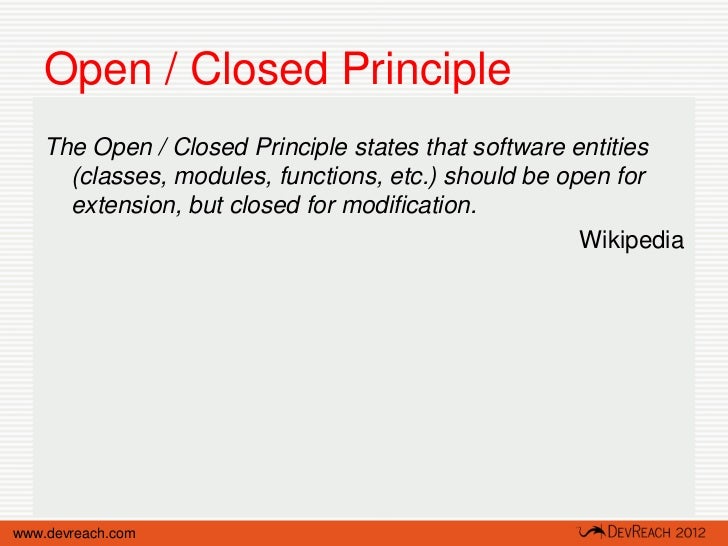

Open / Closed Principle The Open / Closed Principle states that software entities (classes, modules, functions, etc.) should be open for extension, but closed for modification. Wikipediawww.devreach.com

18.

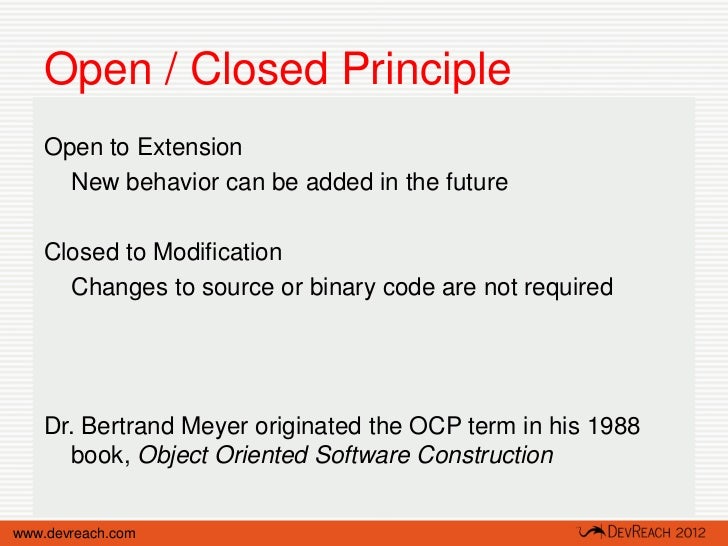

Open / Closed Principle Open to Extension New behavior can be added in the future Closed to Modification Changes to source or binary code are not required Dr. Bertrand Meyer originated the OCP term in his 1988 book, Object Oriented Software Constructionwww.devreach.com

19.

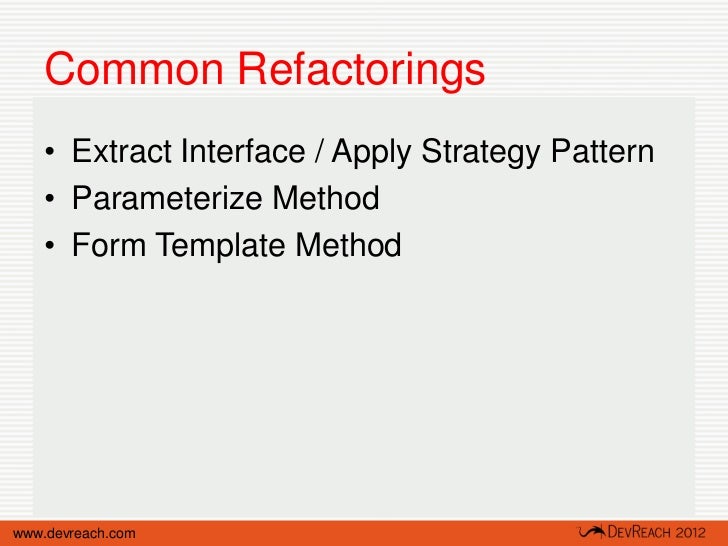

Common Refactorings • Extract Interface / Apply Strategy Pattern • Parameterize Method • Form Template Methodwww.devreach.com

20.

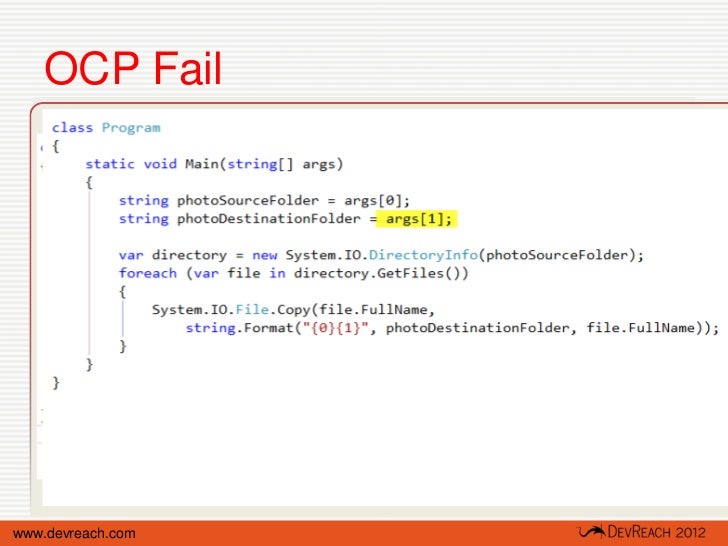

OCP Failwww.devreach.com

21.

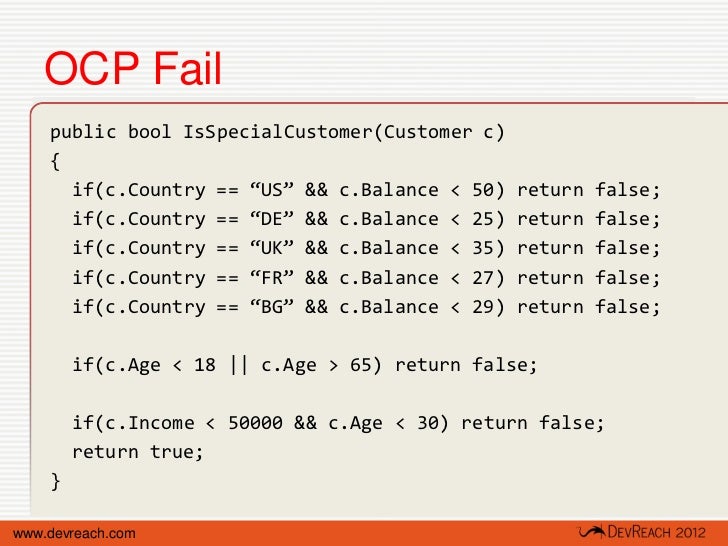

OCP Fail public bool IsSpecialCustomer(Customer c) { if(c.Country == “US” && c.Balance < 50) return false; if(c.Country == “DE” && c.Balance < 25) return false; if(c.Country == “UK” && c.Balance < 35) return false; if(c.Country == “FR” && c.Balance < 27) return false; if(c.Country == “BG” && c.Balance < 29) return false; if(c.Age < 18 || c.Age > 65) return false; if(c.Income < 50000 && c.Age < 30) return false; return true; }www.devreach.com

22.

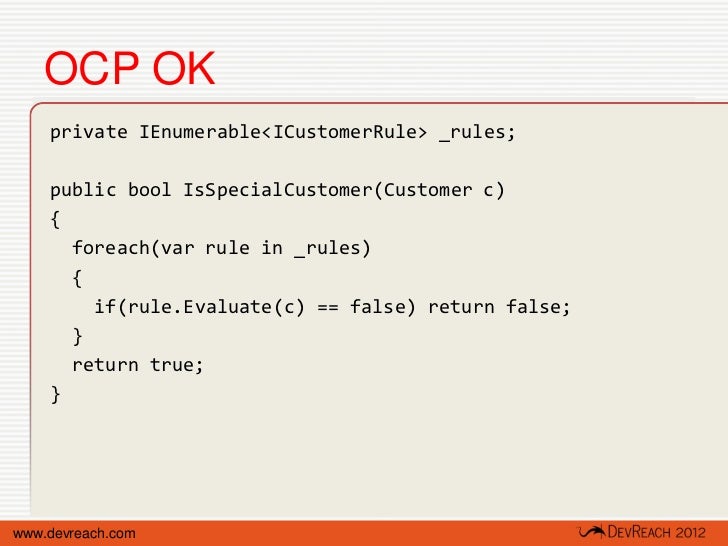

OCP OK private IEnumerable<ICustomerRule> _rules; public bool IsSpecialCustomer(Customer c) { foreach(var rule in _rules) { if(rule.Evaluate(c) == false) return false; } return true; }www.devreach.com

23.

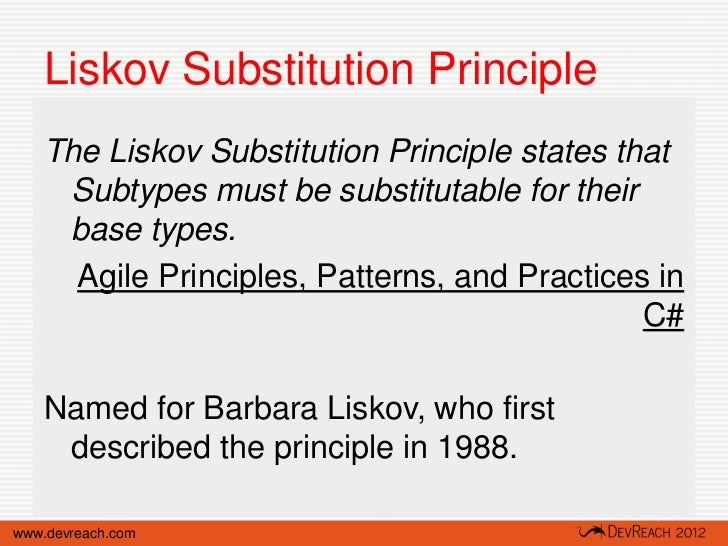

Liskov Substitution Principle The Liskov Substitution Principle states that Subtypes must be substitutable for their base types. Agile Principles, Patterns, and Practices in C# Named for Barbara Liskov, who first described the principle in 1988.www.devreach.com

24.

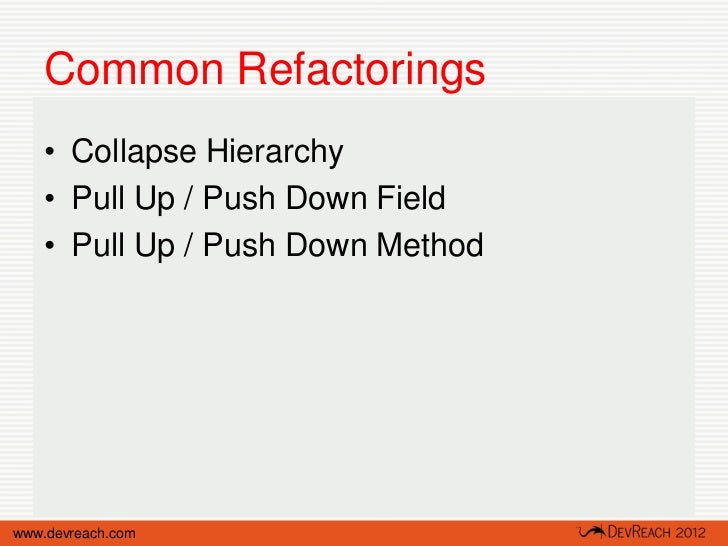

Common Refactorings • Collapse Hierarchy • Pull Up / Push Down Field • Pull Up / Push Down Methodwww.devreach.com

25.

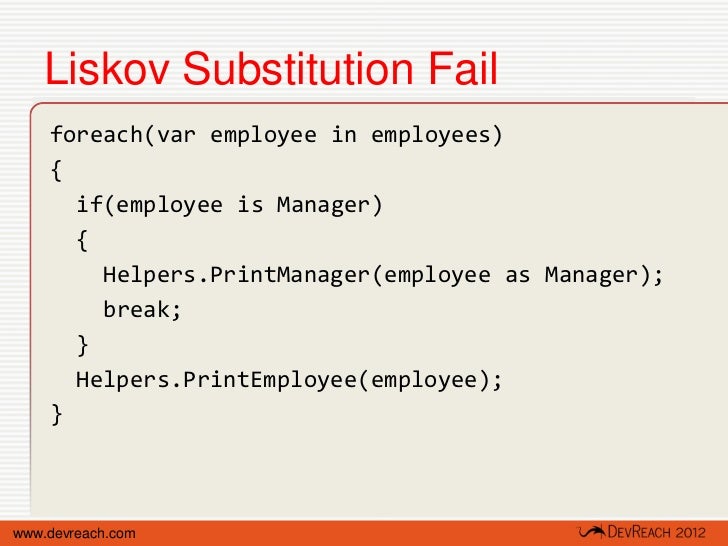

Liskov Substitution Fail foreach(var employee in employees) { if(employee is Manager) { Helpers.PrintManager(employee as Manager); break; } Helpers.PrintEmployee(employee); }www.devreach.com

26.

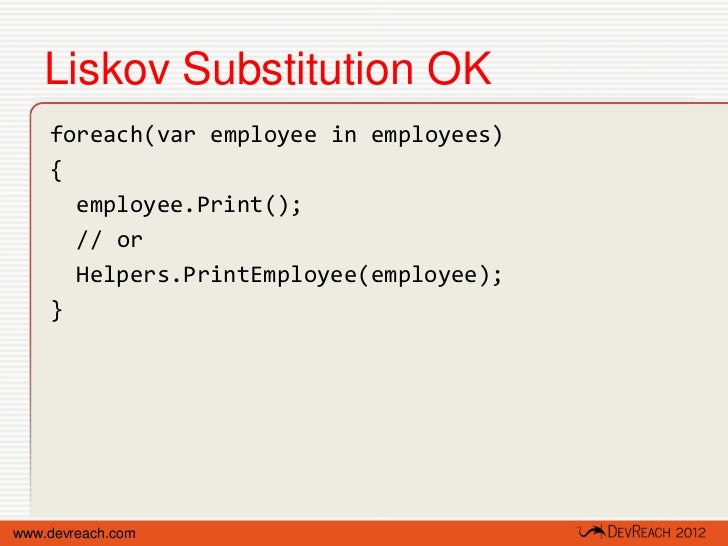

Liskov Substitution OK foreach(var employee in employees) { employee.Print(); // or Helpers.PrintEmployee(employee); }www.devreach.com

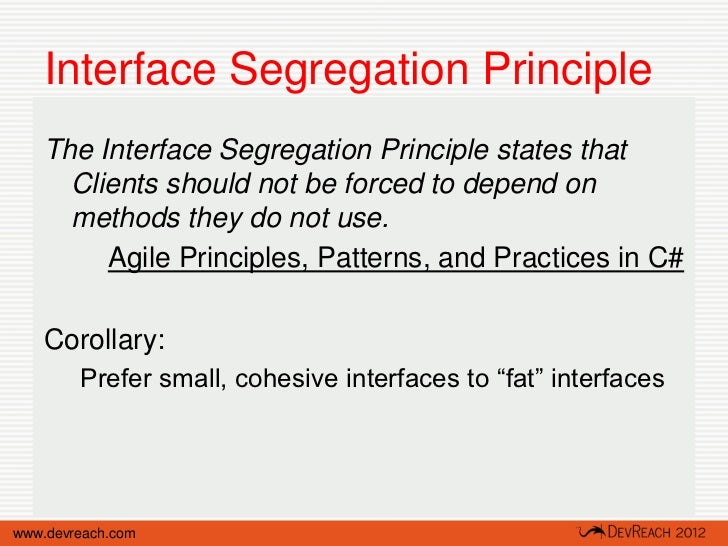

27.
Interface Segregation Principle The Interface Segregation Principle states that Clients should not be forced to depend on methods they do not use. Agile Principles, Patterns, and Practices in C# Corollary: Prefer small, cohesive interfaces to “fat” interfaceswww.devreach.com

28.

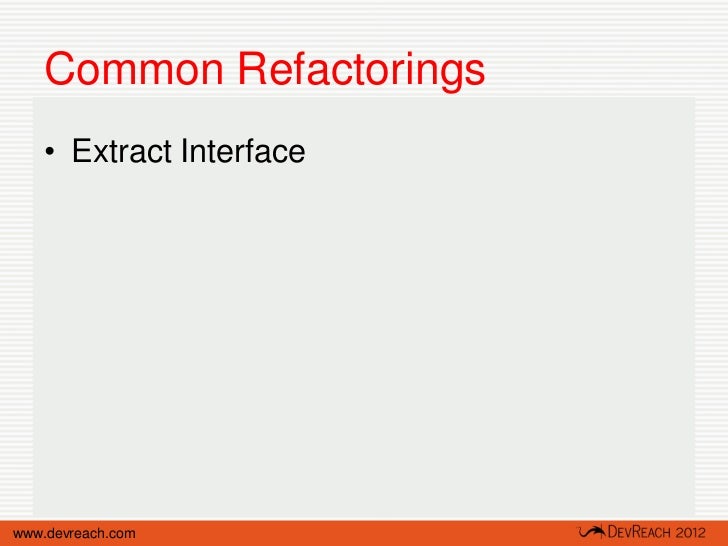

Common Refactorings • Extract Interfacewww.devreach.com

29.

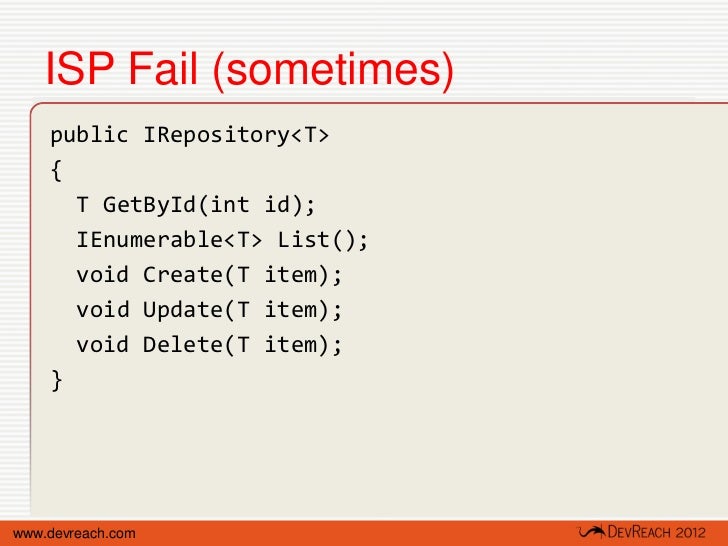

ISP Fail (sometimes) public IRepository<T> { T GetById(int id); IEnumerable<T> List(); void Create(T item); void Update(T item); void Delete(T item); }www.devreach.com

30.

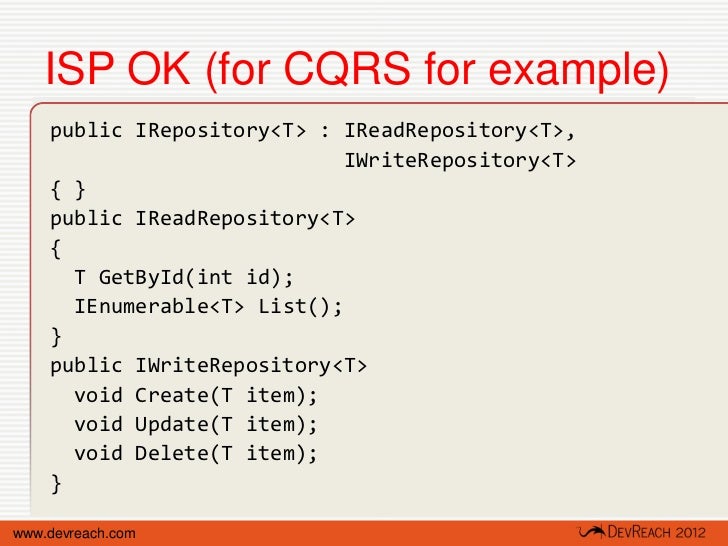

ISP OK (for CQRS for example) public IRepository<T> : IReadRepository<T>, IWriteRepository<T> { } public IReadRepository<T> { T GetById(int id); IEnumerable<T> List(); } public IWriteRepository<T> void Create(T item); void Update(T item); void Delete(T item); }www.devreach.com

31.

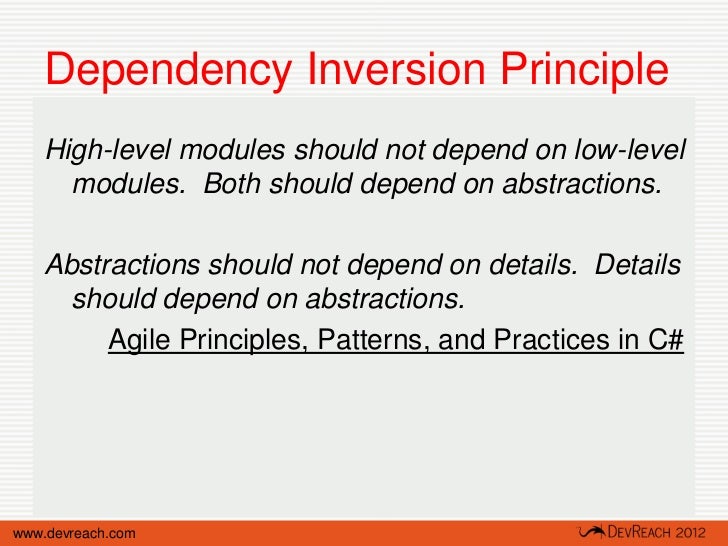

Dependency Inversion Principle High-level modules should not depend on low-level modules. Both should depend on abstractions. Abstractions should not depend on details. Details should depend on abstractions. Agile Principles, Patterns, and Practices in C#www.devreach.com

32.

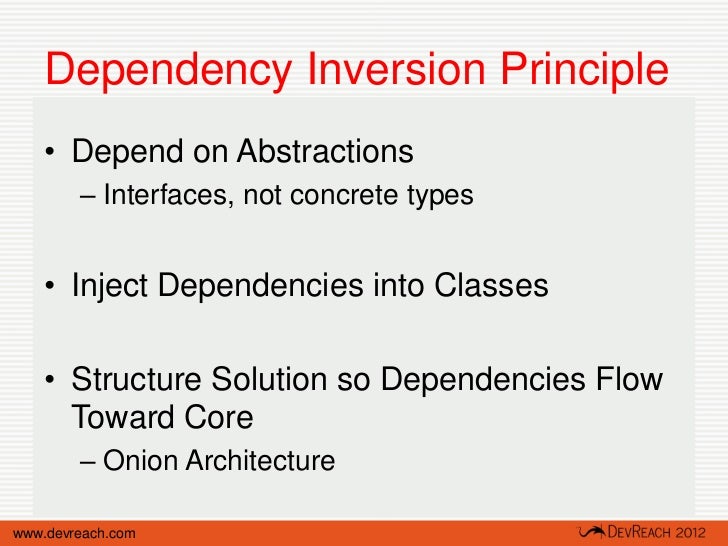

Dependency Inversion Principle • Depend on Abstractions – Interfaces, not concrete types • Inject Dependencies into Classes • Structure Solution so Dependencies Flow Toward Core – Onion Architecturewww.devreach.com

33.

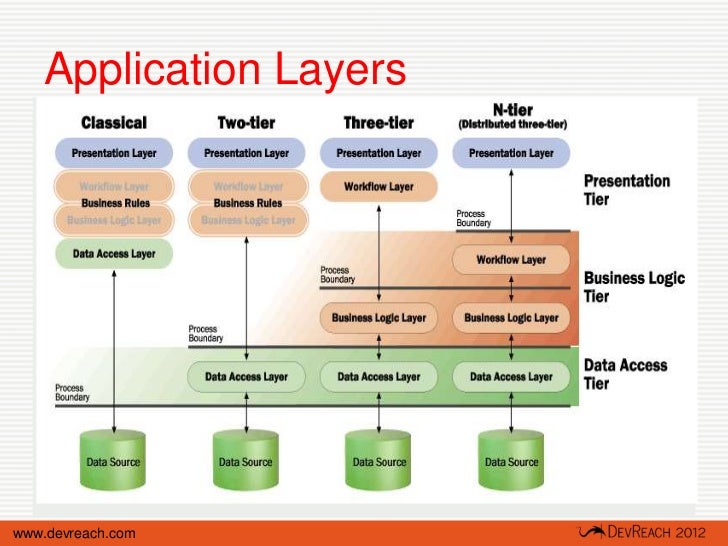

Application Layerswww.devreach.com

34.

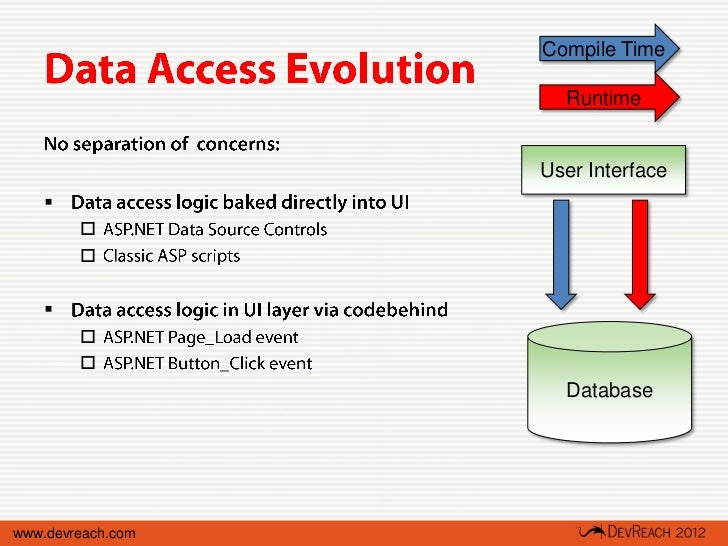

Compile Time Runtime User Interface       Databasewww.devreach.com

35.

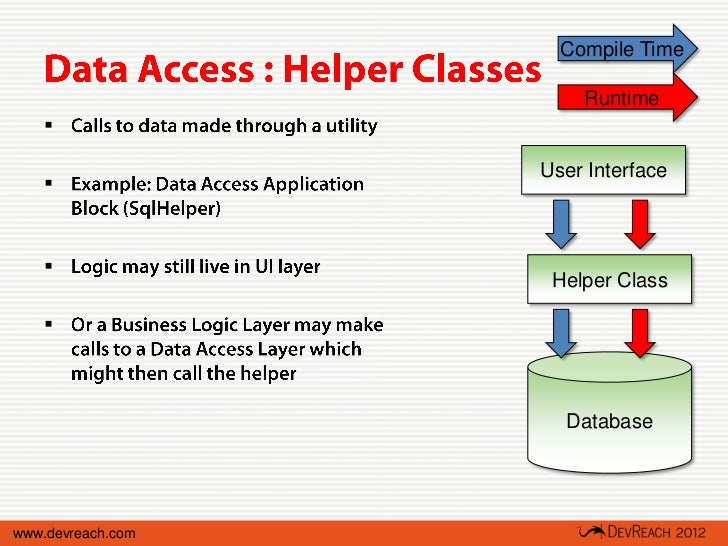

Compile Time Runtime  User Interface   Helper Class  Databasewww.devreach.com

36.

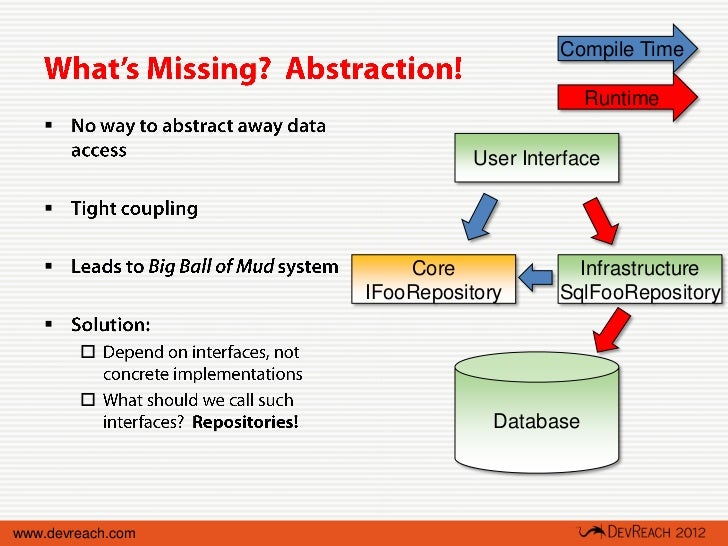

Compile Time Runtime  User Interface   Core Infrastructure IFooRepository SqlFooRepository    Databasewww.devreach.com

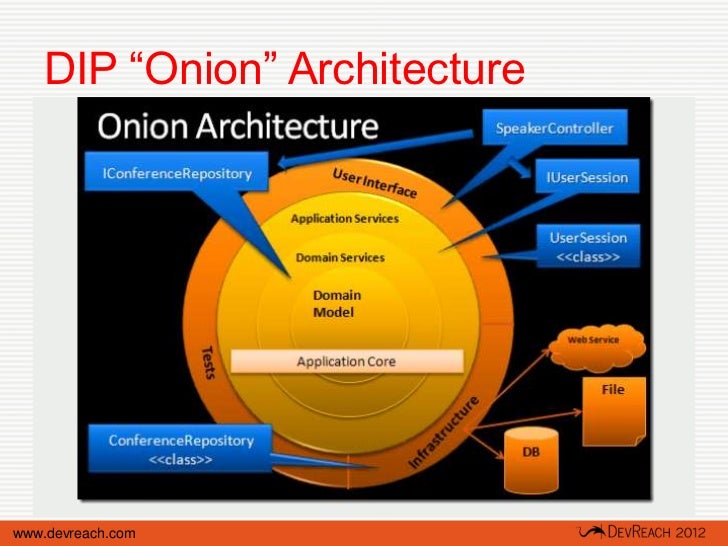

37.
DIP “Onion” Architecturewww.devreach.com

38.

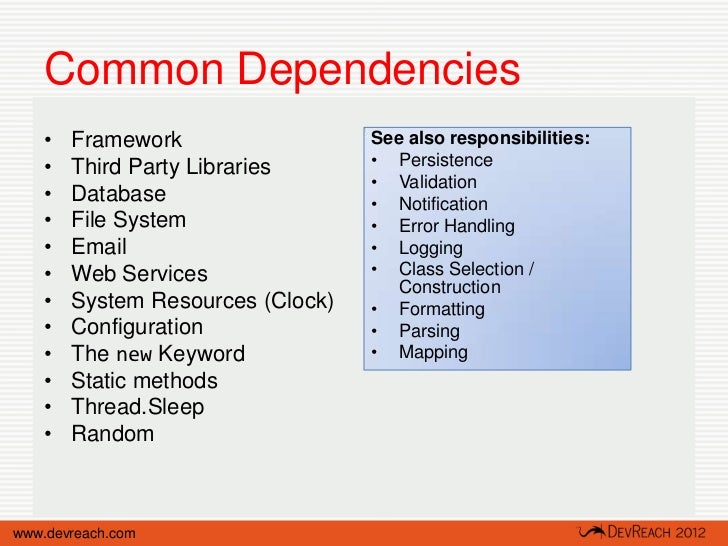

Common Dependencies • Framework See also responsibilities: • Third Party Libraries • Persistence • Validation • Database • Notification • File System • Error Handling • Email • Logging • Web Services • Class Selection / Construction • System Resources (Clock) • Formatting • Configuration • Parsing • The new Keyword • Mapping • Static methods • Thread.Sleep • Randomwww.devreach.com

39.
Common Refactorings • Extract Class • Extract Interface / Apply Strategy Pattern • Extract Method • Introduce Service Locator / Containerwww.devreach.com

40.
DIP Failwww.devreach.com

41.
Some Improvement (Façade)www.devreach.com

42.
DIP OK (Strategy)www.devreach.com

43.
DIP OK (Strategy)www.devreach.com

44.
Summary • Maintain / Improve Application Code • Follow DRY/SOLID Principles • Use Characterization Tests to “fix” behavior • Apply Common Refactorings • Re-run Tests After Refactoringswww.devreach.com

45.
       www.devreach.com

46.
Thank You! – Благодаря! Find Me Online: Blog: http://ardalis.com Twitter: @ardalis http://facebook.com/StevenAndrewSmithwww.devreach.com
