MOBILE USABILITYUFBA, MARCH 16th 2016
THIAGO COLARES @thicolares agilize.com.br
USABILITY is a quality attribute that assesses how easy user interfaces are to use. Jakob Nielsen
5 COMPONENTS

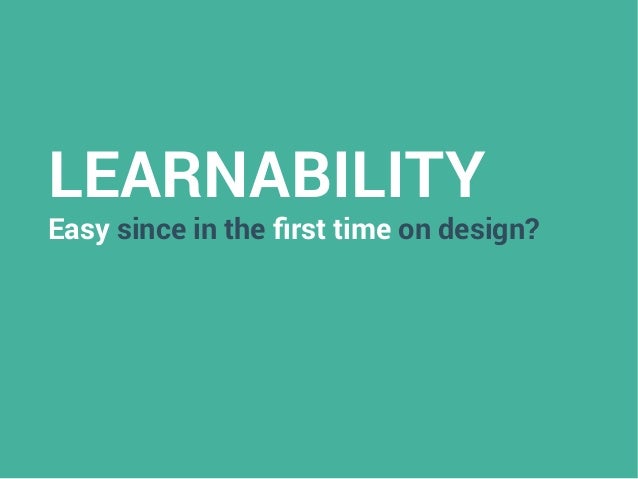

LEARNABILITY Easy since in the first time on design?
EFFICIENCY After learning, how quickly can users perform tasks?
MEMORABILITY Returning to the design, how easily is to reestablish the proficiency?

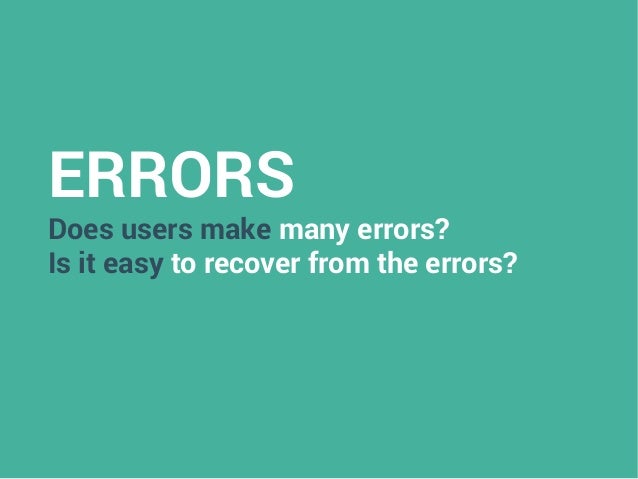

ERRORS Does users make many errors? Is it easy to recover from the errors?

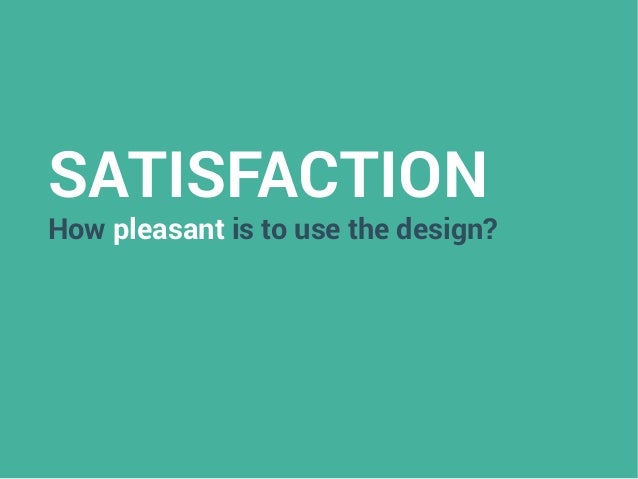

SATISFACTION How pleasant is to use the design?
MOBILE IS A UNIQUE AND DIFFERENT MEDIUM. FOCUS ON WHAT IT CAN DO WELL.
MOBILE HAS A SMALL SCREEN
DIFFERENT ENVIRONMENTS AND SCREEN SIZES http://blog.fluidui.com/design-retrospective-1-performance-screen-resolutions-and-...

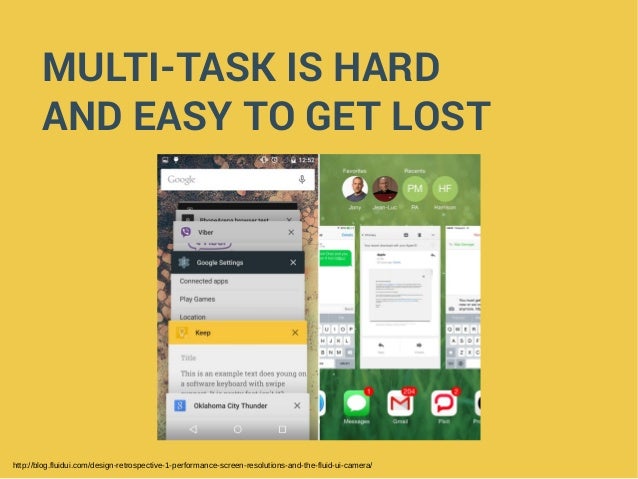

MULTI-TASK IS HARD AND EASY TO GET LOST http://blog.fluidui.com/design-retrospective-1-performance-screen-resolutions-and-...
CONTEXT MATTERS

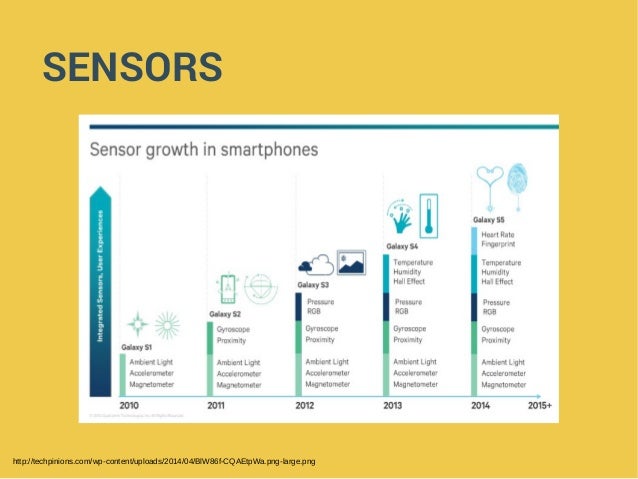

SENSORS http://techpinions.com/wp-content/uploads/2014/04/BlW86f-CQAEtpWa.png-large.png

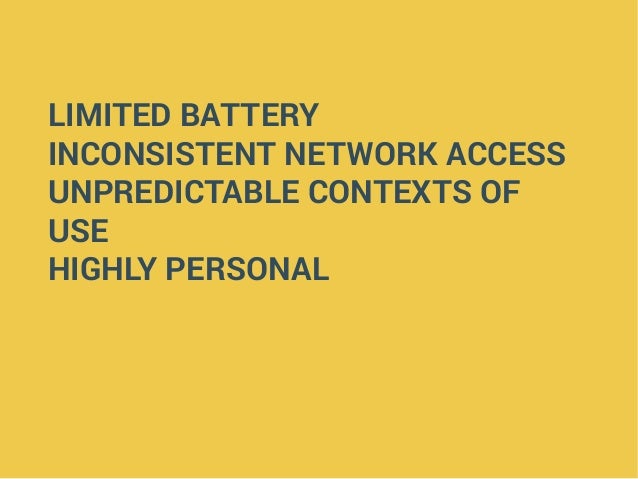

LIMITED BATTERY INCONSISTENT NETWORK ACCESS UNPREDICTABLE CONTEXTS OF USE HIGHLY PERSONAL
USABILITY ENGINEERING LIFECYCLE

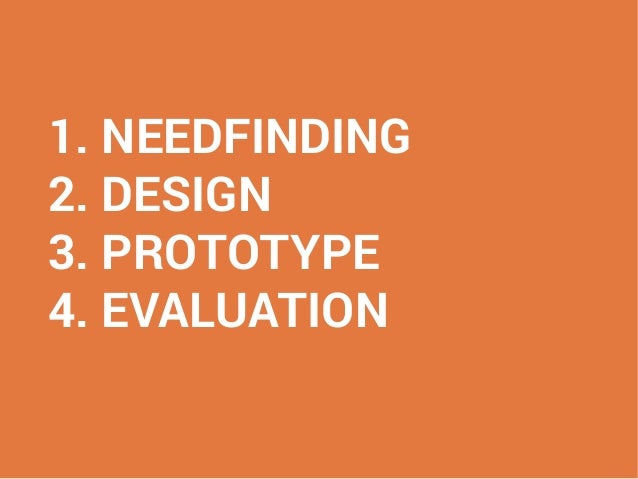

1. NEEDFINDING 2. DESIGN 3. PROTOTYPE 4. EVALUATION
USABILITY ENGINEERING LIFECYCLE
1. NEEDFINDING To identify user requirements and problems. Profile Users, Task Analysis.

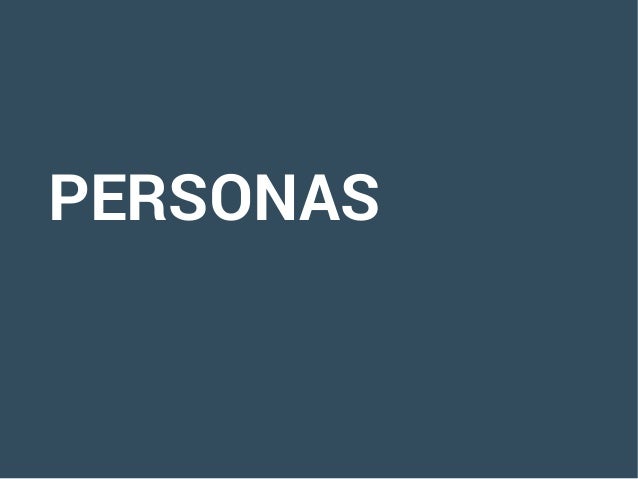

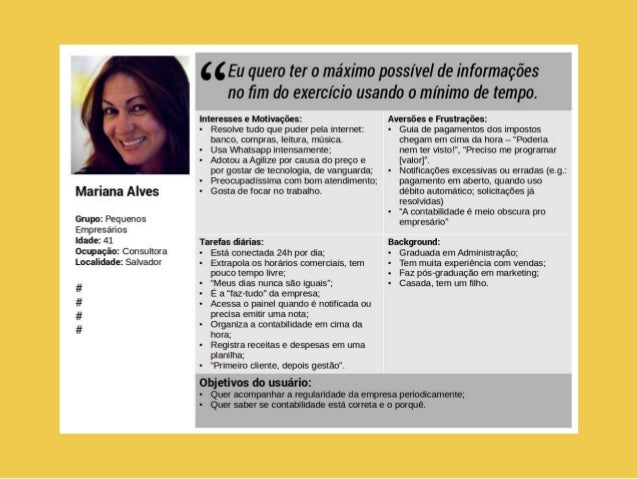

PERSONAS
WHAT? USER ARCHETYPE GUIDE DECISIONS REPRESENTS ACTUAL USERS BEHAVIOR PATTERNS USERS' NEEDS AND TAKS
WHY? CONSENSUS ON USERS NEEDS SUPPORTS FOCUS ON USER EXEMPTS USER'S PRESENCE
TIPS BETWEEN 3 AND 7 PERSONAS MAIN AND SECONDARY
HOW? QUANTITATIVE OR QUALITATIVE RESEARCH INTERVIEWS MERGE FINDINGS
CARDING SORTING
AVOID TALKING ABOUT USERS' RELATIONSHIP WITH SOFTWARE
USERS BEND THE TRUTH

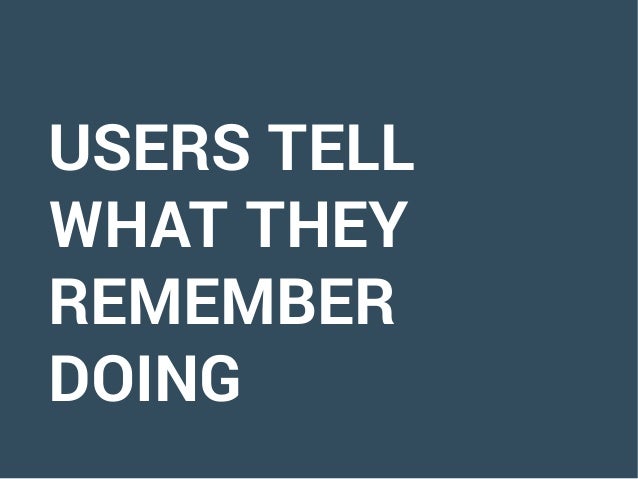

USERS TELL WHAT THEY REMEMBER DOING
USERS RATIONALIZE THEIR BEHAVIOR

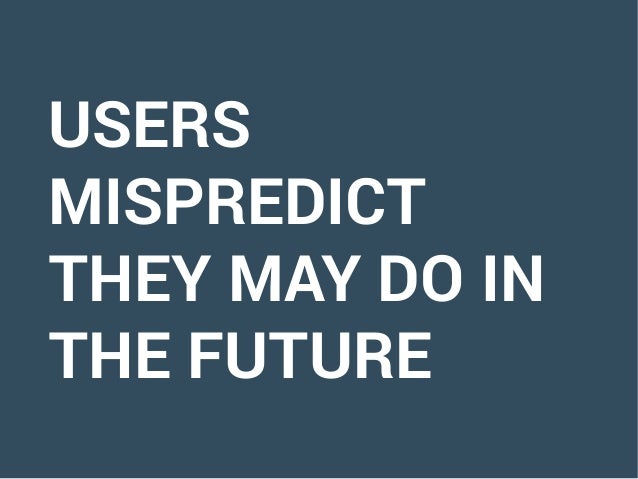

USERS MISPREDICT THEY MAY DO IN THE FUTURE

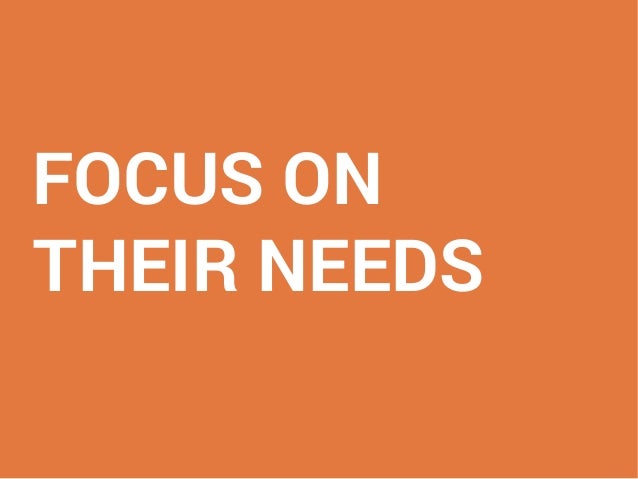

FOCUS ON THEIR NEEDS
OR WATCH WHAT PEOPLE ACTUALLY DO

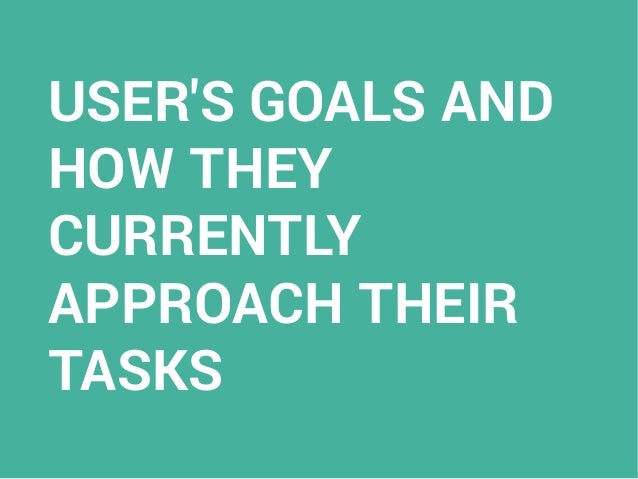

USER'S GOALS AND HOW THEY CURRENTLY APPROACH THEIR TASKS

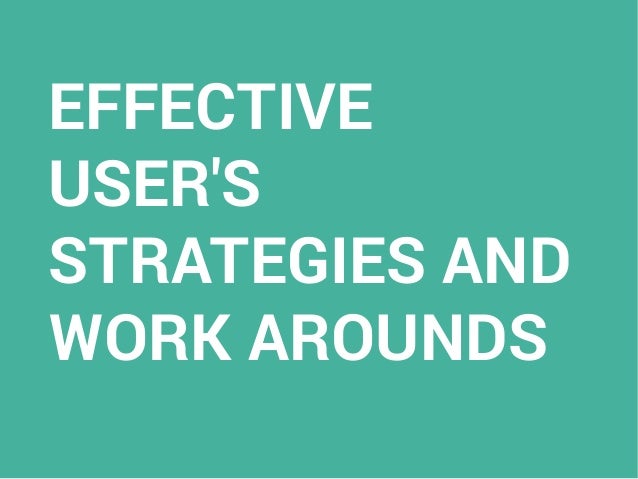

EFFECTIVE USER'S STRATEGIES AND WORK AROUNDS
WEAKNESSES OF THE CURRENT SITUATION
1. NEEDFINDING 2. DESIGN 3. PROTOTYPE 4. EVALUATION

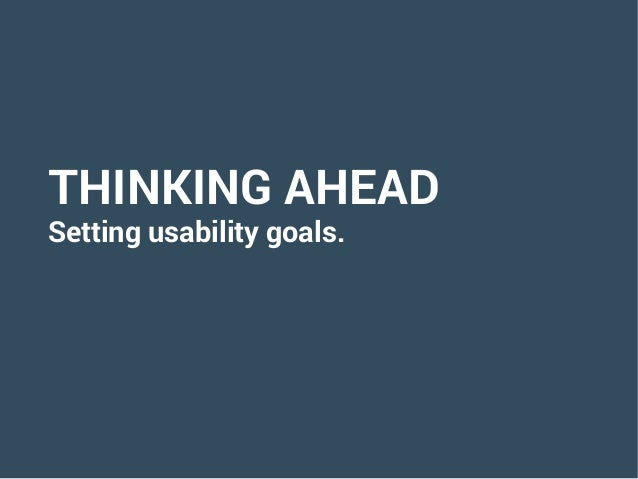

THINKING AHEAD Setting usability goals.

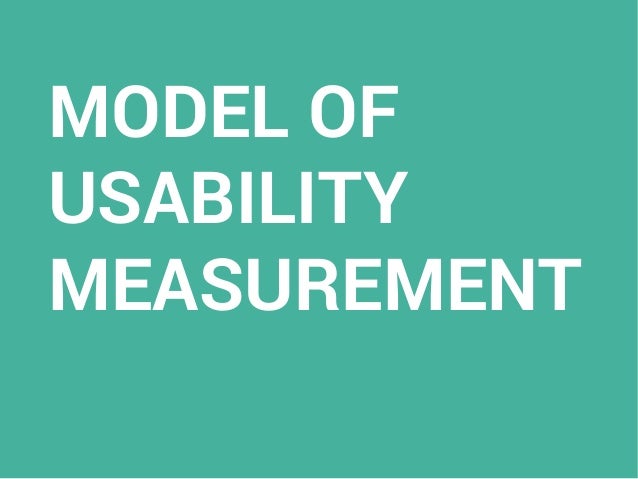

MODEL OF USABILITY MEASUREMENT
LEARNABILITY Measure how long novice users take to perform certain tasks.
EFFICIENCY Measure how long experienced users take to perform certain tasks.

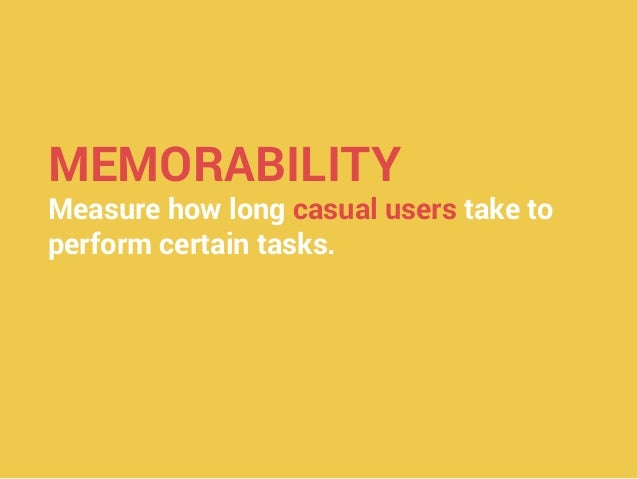

MEMORABILITY Measure how long casual users take to perform certain tasks.

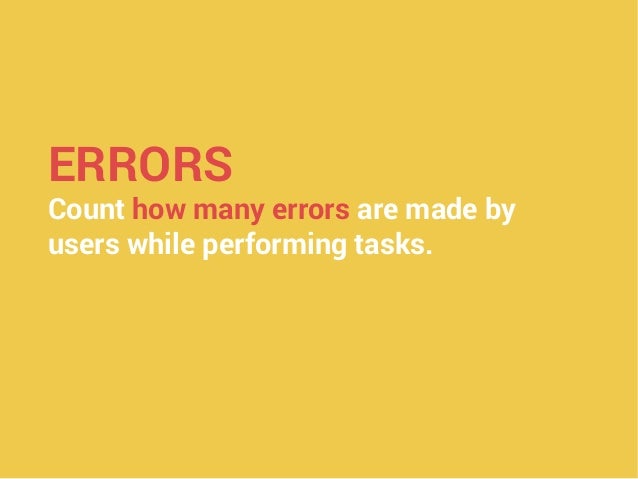

ERRORS Count how many errors are made by users while performing tasks.
SATISFACTION Try standardized usability questionnaires after each usability test.
USABILITY HEURISTICS OLD, BUT GOLD
RULES OF THUMB FLEXIBLES ~10 GENERAL PRINCIPLES NO USER NEEDED CHEAP AND VALUABLE TOOL
1 VISIBILITY OF SYSTEM STATUS

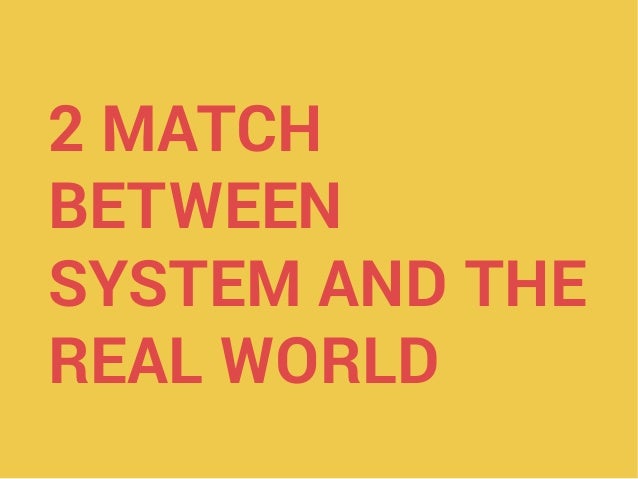

2 MATCH BETWEEN SYSTEM AND THE REAL WORLD

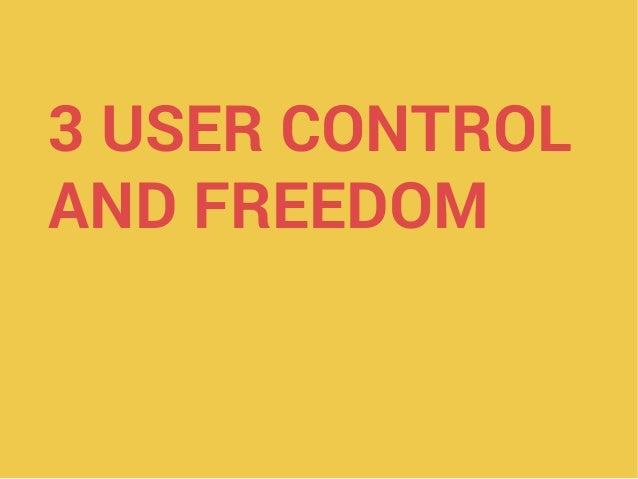

3 USER CONTROL AND FREEDOM
4 CONSISTENCY AND STANDARDS
5 ERROR PREVENTION
6 RECOGNITION RATHER THAN RECALL
7 FLEXIBILITY AND EFFICIENCY OF USE
8 AESTHETIC AND MINIMALIST DESIGN
9 HELP USERS RECOGNIZE, DIAGNOSE, AND RECOVER FROM ERRORS
10 HELP AND DOCUMENTATION

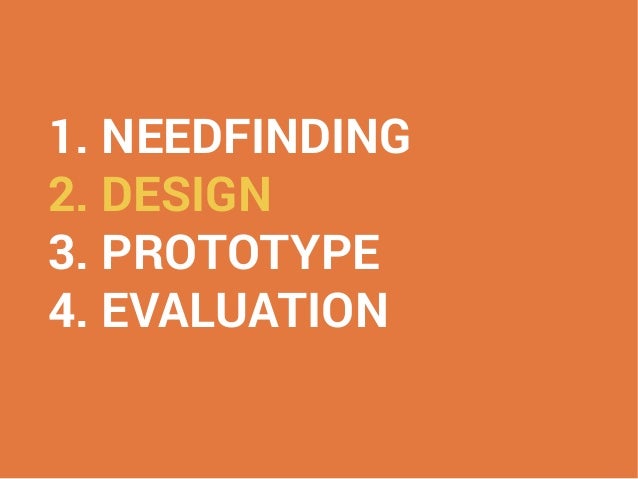

1. NEEDFINDING 2. DESIGN 3. PROTOTYPE 4. EVALUATION

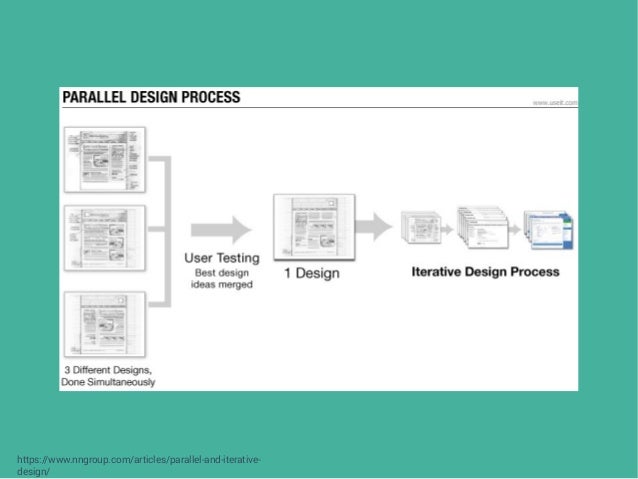

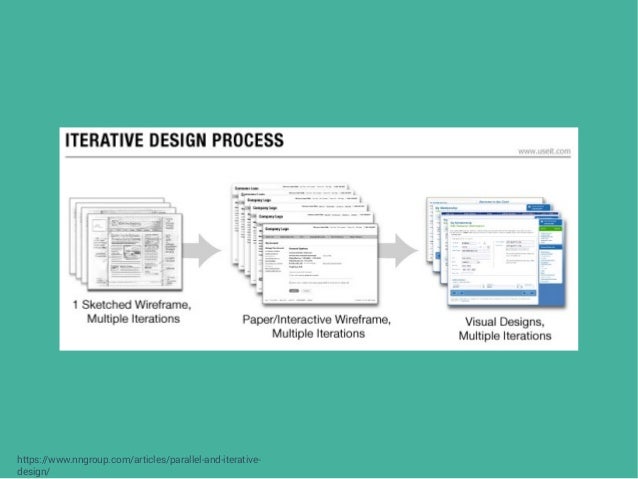

ITERATIVE DESIGN PARALLEL DESIGN COMPETITIVE TESTING
TO TRY (AND TEST) MULTIPLE DESIGN IDEAS
https://www.nngroup.com/articles/parallel-and-iterative- design/

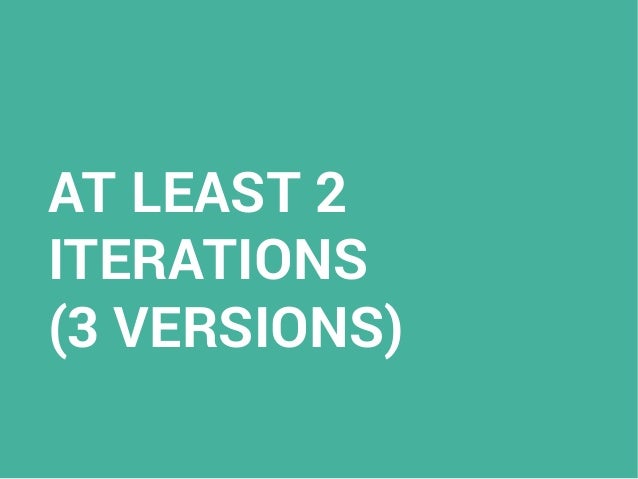

AT LEAST 2 ITERATIONS (3 VERSIONS)

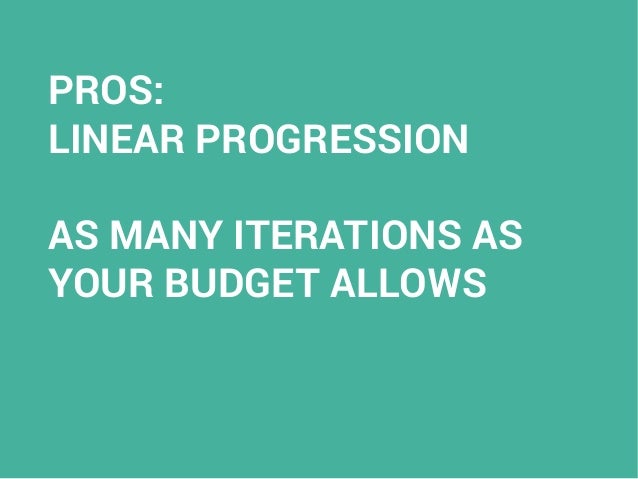

PROS: LINEAR PROGRESSION AS MANY ITERATIONS AS YOUR BUDGET ALLOWS
CONS: LOCAL MAXIMUM (RATHER THEN DISCOVERING OTHERS POSSIBILITIES)
https://www.nngroup.com/articles/parallel-and-iterative- design/

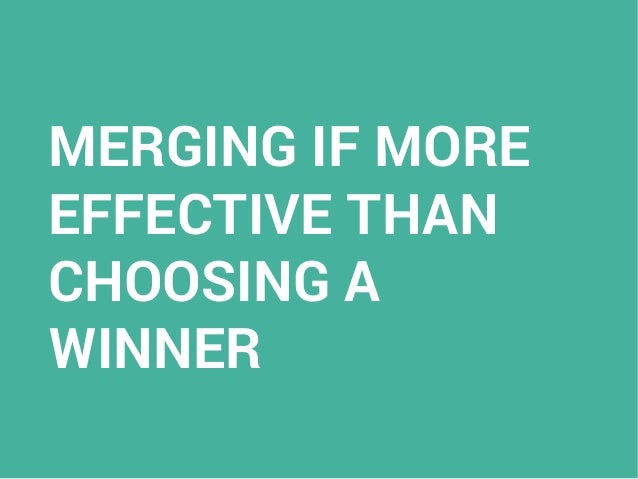

MERGING IF MORE EFFECTIVE THAN CHOOSING A WINNER

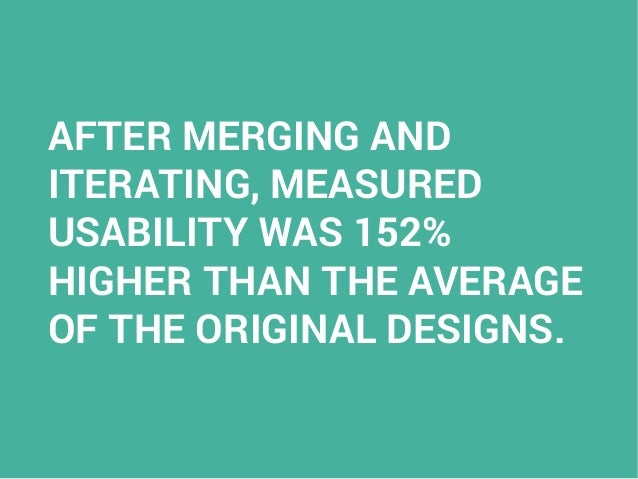

AFTER MERGING AND ITERATING, MEASURED USABILITY WAS 152% HIGHER THAN THE AVERAGE OF THE ORIGINAL DESIGNS.
COMPETITIVE DESIGN http://uniquemobiledesigns.com/wp-

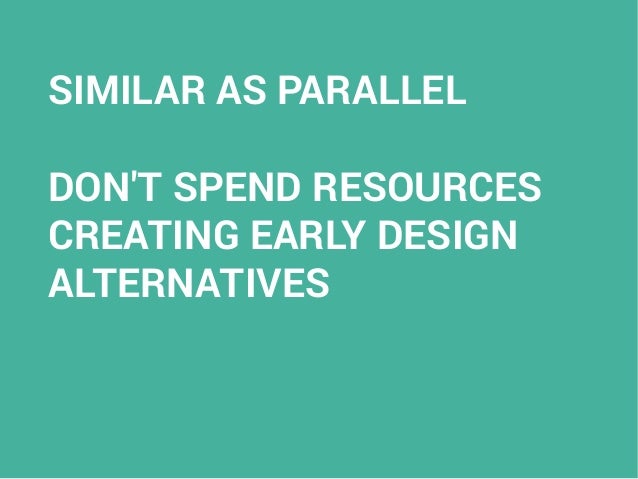

SIMILAR AS PARALLEL DON'T SPEND RESOURCES CREATING EARLY DESIGN ALTERNATIVES
PATTERNS Navigations, forms, anti-patterns

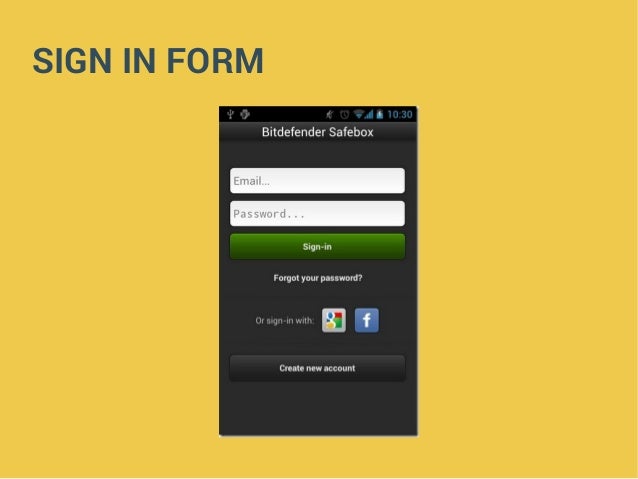

SIGN IN FORM

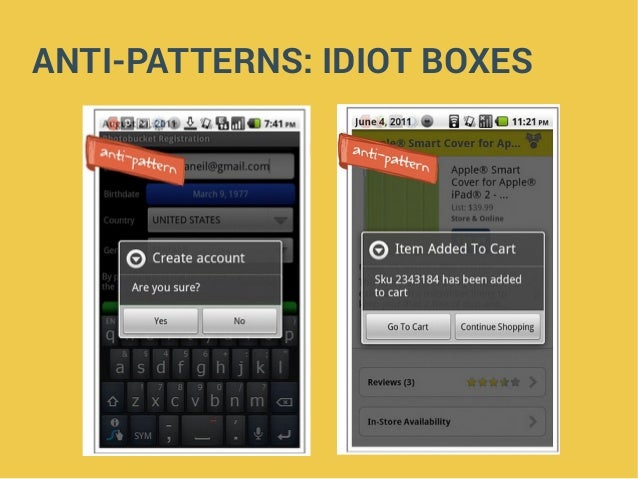

ANTI-PATTERNS: IDIOT BOXES

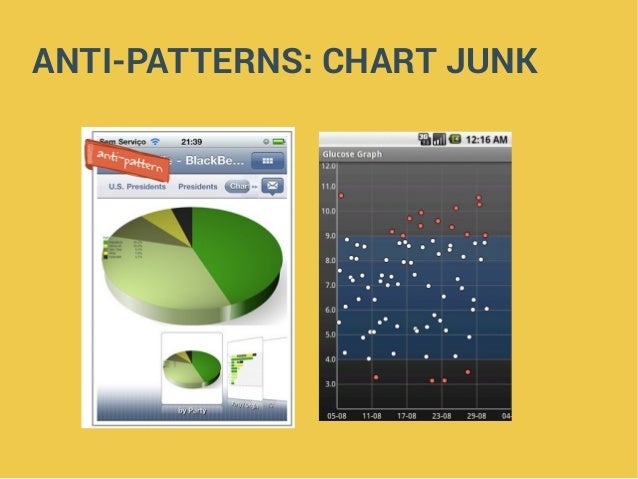

ANTI-PATTERNS: CHART JUNK

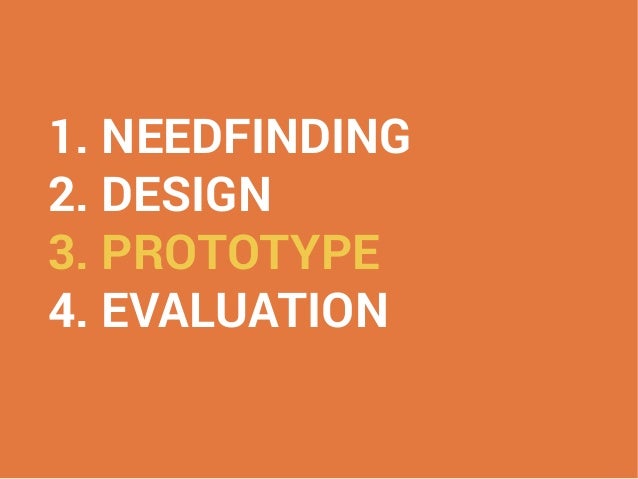

1. NEEDFINDING 2. DESIGN 3. PROTOTYPE 4. EVALUATION
FOR THINGS THAT ARE HARD TO PREDICT QUICKLY FEEDBACK LOW COSTS
PROTOTYPE PROTOTYPES: 1 LOOK AND FEEL 2 IMPLEMENTATION 3 ROLE
THE WISE MAN LEARNS FROM THE MISTAKES OF OTHERS: TEST EXISTENT PRODUCTS.

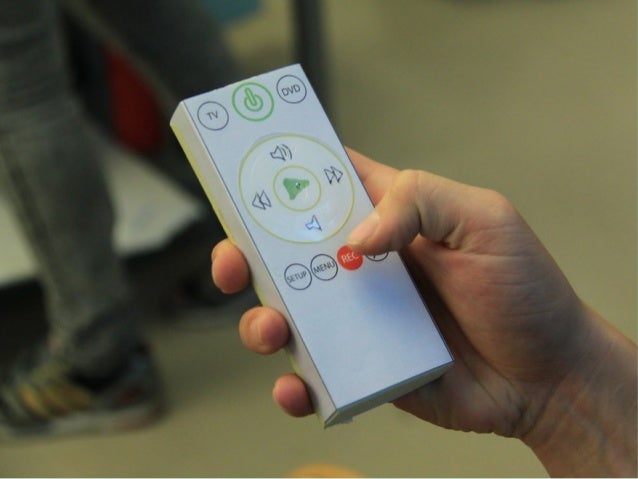

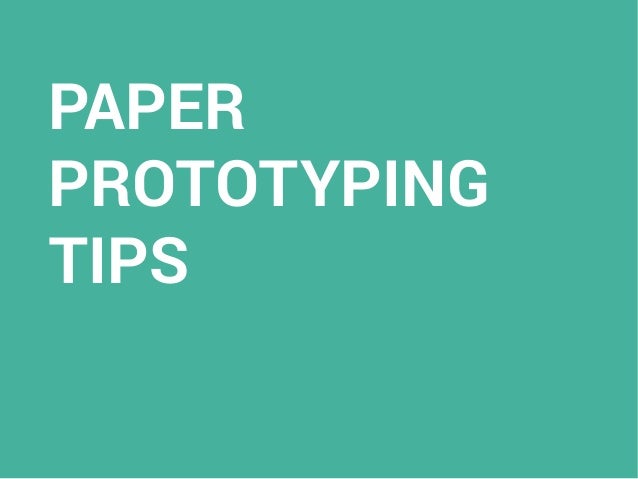

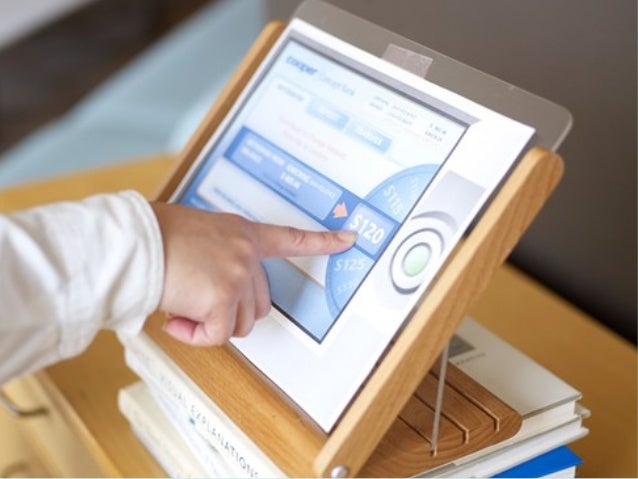

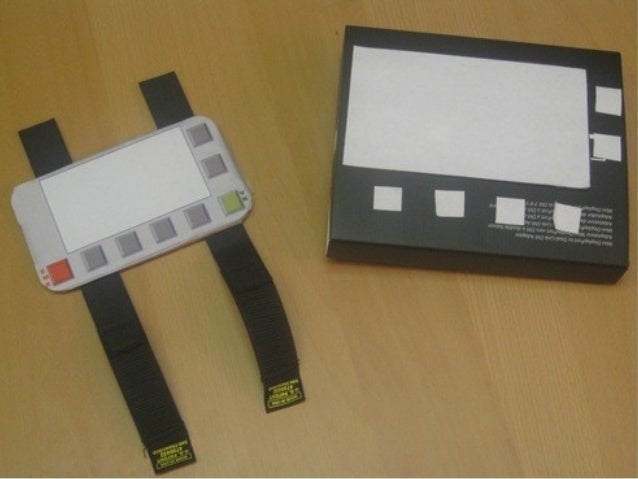

PAPER PROTOTYPING TIPS
http://media.netmagazine.futurecdn.net/files/images/2012/6/7171789134_08da5a27e9_o.jpg, farm3.static.flickr.com/2544/39623...
1. NEEDFINDING 2. DESIGN 3. PROTOTYPE 4. EVALUATION
USABILITY TEST
1. GET HOLD OF SOME REPRESENATIVE USERS 2. ASK THEM TO PERFORM TASKS 3. OBSERVE WHAT THEY DO
5 USERS IS ENOUGH CONSENT TERMS THINK-ALOUT PROTOCOL TAKE NOTES RECORD AUDIO AND VIDEO GIVE THANKS
https://www.mrtappy.com/product/
WE'RE HIRING contato@agilize.com.br
DANKE SEHR!
REFERENCES 1. “Usability 101: Introduction to Usability”, Jakob Nielsen’s Alertbox: January 4, 2012 (http://www.nngroup.co...
VENT UP! 1.7 reasons why you can’t sell usability, and what to do about it http://www.usefulusability.com/7-reasons-why-yo...
