1.
Biml for Beginners:
Generating SSIS packages with BimlScript
Cathrine Wilhelmsen
September 5th 2015

2.
Session description
SSIS is a powerful tool for extracting, transforming and loading data,
but creating the actual SSIS packages can be both tedious and time-
consuming. Even if you use templates and follow best practices you
often have to repeat the same steps over and over again. There are
no easy ways to handle metadata and schema changes, and if there
are new requirements you might have to go through all the packages
one more time. It's time to bring the Don't Repeat Yourself principle
to SSIS development.
In this session I will use the free BIDS Helper add-in to show you the
basics of Biml and BimlScript, how to generate SSIS packages
automatically from databases, how easy those packages can be
changed, and how to move common code to separate files that can
be included where needed. See why they say Biml allows you to
complete in a day what once took more than a week!

3.
@cathrinew
cathrinewilhelmsen.net
Data Warehouse Architect
Business Intelligence Developer
Cathrine Wilhelmsen

4.
Who are you? (*)
SSIS and ETL Developer?
Easily bored?
Tired of repetitive work?
( * Probably not a cat )

5.
Why are you here?
Long development time?
Many SSIS packages?
Slow GUI editor?
(Drag, drop, drag, drop, connect,
drag, drop, connect, resize, align,
drag, drop, resize, connect, align…)

6.
job done!
new standards
yay
Have you ever experienced this?

7.
Ready for a change?

8.
Business Intelligence Markup Language
Easy to read and write XML dialect
Specifies business intelligence objects
Databases, schemas, tables, columns
SSIS packages
SSAS cubes, facts, dimensions (Mist only)

9.
Highlights in Biml History
founded by Scott Currie, is born
Biml was extended with
Biml compiler added to
is launched
founded
is launched
2008:
2009:
2011:
2012:
2014:
2015:

10.
How can Biml help you?
Timesaving: Many SSIS
Packages from one Biml file
Reusable: Write once and run
on any platform (2005 – 2014)
Flexible: Start simple, expand
as you learn
(Of course I can create 200 packages!
What do you need me to do after lunch?)

11.
What do you need?

12.
How does it work?
Generated packages are indistinguishable from manually created packages

13.
Biml syntax
<Biml xmlns="http://schemas.varigence.com/biml.xsd">
<Packages>
<Package Name="EmptyPackage1"></Package>
<Package Name="EmptyPackage2"/>
</Packages>
</Biml>

14.
Biml syntax: Root Element
<Biml xmlns="http://schemas.varigence.com/biml.xsd">
<Packages>
<Package Name="EmptyPackage1"></Package>
<Package Name="EmptyPackage2"/>
</Packages>
</Biml>

15.
Biml syntax: Collection of Elements
<Biml xmlns="http://schemas.varigence.com/biml.xsd">
<Packages>
<Package Name="EmptyPackage1"></Package>
<Package Name="EmptyPackage2"/>
</Packages>
</Biml>

16.
Biml syntax: Elements
<Biml xmlns="http://schemas.varigence.com/biml.xsd">
<Packages>
<Package Name="EmptyPackage1"></Package>
<Package Name="EmptyPackage2"/>
</Packages>
</Biml>

17.
Biml syntax: Attributes
<Biml xmlns="http://schemas.varigence.com/biml.xsd">
<Packages>
<Package Name="EmptyPackage1"></Package>
<Package Name="EmptyPackage2"/>
</Packages>
</Biml>

18.
Biml syntax: Full vs. Shorthand Syntax
<Biml xmlns="http://schemas.varigence.com/biml.xsd">
<Packages>
<Package Name="EmptyPackage1"></Package>
<Package Name="EmptyPackage2"/>
</Packages>
</Biml>

19.
Demo – Biml

20.
Getting started with Biml
1. Download and install BIDS Helper (http://bidshelper.codeplex.com)
2. Right-click on SSIS project and click Add New Biml File

21.
Intellisense
Intellisense while typing
CTRL+Space to AutoComplete or show Intellisense

22.
Errors
Red squiggly line: Error
Blue squiggly line: Missing attribute or child element
Error spelling
Missing attribute: ConstraintMode

23.
Errors
Hovering over errors will show descriptive text
Missing attribute: ConstraintMode
Error spelling

24.
Right-click to Check Biml for Errors

25.
Your first SSIS Package from Biml
Right-click on Biml file and click Generate SSIS Packages
Packages will appear under SSIS Packages

26.
From Biml to SSIS

27.
From Biml to SSIS

28.
.biml vs .dtsx:
human-readable vs ALL THE CODE!
(150% zoom) (20% zoom)

29.
I create SSIS packages faster than that

30.
But wait!

31.
The magic is in the
Extend Biml with C# or VB.NET code blocks
Import database structure and metadata
Loop over tables and columns
Add expressions to replace static values
Allows you to control and manipulate Biml code

32.
BimlScript code blocks
<#@ … #> Directives (Instructions to the BimlCompiler)
<# … #> Control Blocks (Control logic)
<#= … #> Expression Control Blocks (Replace block with string value)
<#+ … #> Class Feature Control Blocks (Create helper methods)

33.
BimlScript syntax
<Biml xmlns="http://schemas.varigence.com/biml.xsd">
<Packages>
<# foreach (var table in RootNode.Tables) { #>
<Package Name="Load<#=table.Name#>"></Package>
<# } #>
</Packages>
</Biml>

34.
BimlScript syntax: Control Blocks
<Biml xmlns="http://schemas.varigence.com/biml.xsd">
<Packages>
<# foreach (var table in RootNode.Tables) { #>
<Package Name="Load<#=table.Name#>"></Package>
<# } #>
</Packages>
</Biml>

35.
BimlScript syntax: Expression Control Block
<Biml xmlns="http://schemas.varigence.com/biml.xsd">
<Packages>
<# foreach (var table in RootNode.Tables) { #>
<Package Name="Load<#=table.Name#>"></Package>
<# } #>
</Packages>
</Biml>

36.
How does it work?

37.
Yes, but how does it work?
37

38.
Yes, but how does it actually work?
<Biml xmlns="http://schemas.varigence.com/biml.xsd">
<Packages>
<# foreach (var table in RootNode.Tables) { #>
<Package Name="Load<#=table.Name#>"></Package>
<# } #>
</Packages>
</Biml>
<Biml xmlns="http://schemas.varigence.com/biml.xsd">
<Packages>
<Package Name="LoadCustomer"></Package>
<Package Name="LoadProduct"></Package>
<Package Name="LoadSales"></Package>
</Packages>
</Biml>

39.
Demo – BimlScript

40.
Basic for loop
<Packages>
<# for (int count = 1; count <= 5; count++) { #>
<Package Name="Load_Person_Person_<#=count#>">
</Package>
<# } #>
</Packages>

41.
foreach (table in a database) loop
<#@ import namespace="Varigence.Hadron.CoreLowerer.SchemaManagement" #>
<# var conAW2014 = SchemaManager.CreateConnectionNode("AW2014", "Data Source...");
#>
<# var AW2014DB = conAW2014.ImportDB("","", ImportOptions.ExcludeViews); #>
<Packages>
<# foreach (var table in AW2014DB.TableNodes) { #>
<Package Name="Load_<#=table.Schema#>_<#=table.Name#>">
</Package>
<# } #>
</Packages>

42.
Don't Repeat Yourself
Move common code to separate files
Centralize and reuse in many projects
Update code once for all projects
1. Split and combine Biml files
2. Include files
3. CallBimlScript with parameters

43.
Split and combine Biml files
Solve logical dependencies and simulate manual workflows by using tiers
Tiers instruct the BimlCompiler to compile files from lowest to highest tier
<#@ template tier="1" #>
Higher tiers can use and might depend on objects from lower tiers
Tier 1 - Create database connections
Example: Tier 2 - Create loading packages
Tier 3 - Create master package to execute loading packages

44.
Split and combine Biml files
1. Create Biml files with specified tiers
2. Select all the tiered Biml files
3. Right-click and click Generate SSIS Packages
1
2
3

45.
Behind the scenes: Split and combine Biml files
RootNode
<#@ template tier="0" #>
<Connections>
<Databases>
<Schemas>
<#@ template tier="1" #>
<Tables>
<Columns>
<#@ template tier="2" #>
<Packages>

46.
<Connections>
<Databases>
<Schemas>RootNode
<#@ template tier="0" #>
<Connections>
<Databases>
<Schemas>
<#@ template tier="1" #>
<Tables>
<Columns>
<#@ template tier="2" #>
<Packages>
compile
Behind the scenes: Split and combine Biml files

47.
<Connections>
<Databases>
<Schemas>RootNode
<#@ template tier="0" #>
<Connections>
<Databases>
<Schemas>
<#@ template tier="1" #>
<Tables>
<Columns>
<#@ template tier="2" #>
<Packages>
use
Behind the scenes: Split and combine Biml files

48.
<Connections>
<Databases>
<Schemas>
<Tables>
<Columns>
RootNode
<#@ template tier="0" #>
<Connections>
<Databases>
<Schemas>
<#@ template tier="1" #>
<Tables>
<Columns>
<#@ template tier="2" #>
<Packages>
compile
Behind the scenes: Split and combine Biml files

49.
<Connections>
<Databases>
<Schemas>
<Tables>
<Columns>
RootNode
<#@ template tier="0" #>
<Connections>
<Databases>
<Schemas>
<#@ template tier="1" #>
<Tables>
<Columns>
<#@ template tier="2" #>
<Packages> use
Behind the scenes: Split and combine Biml files

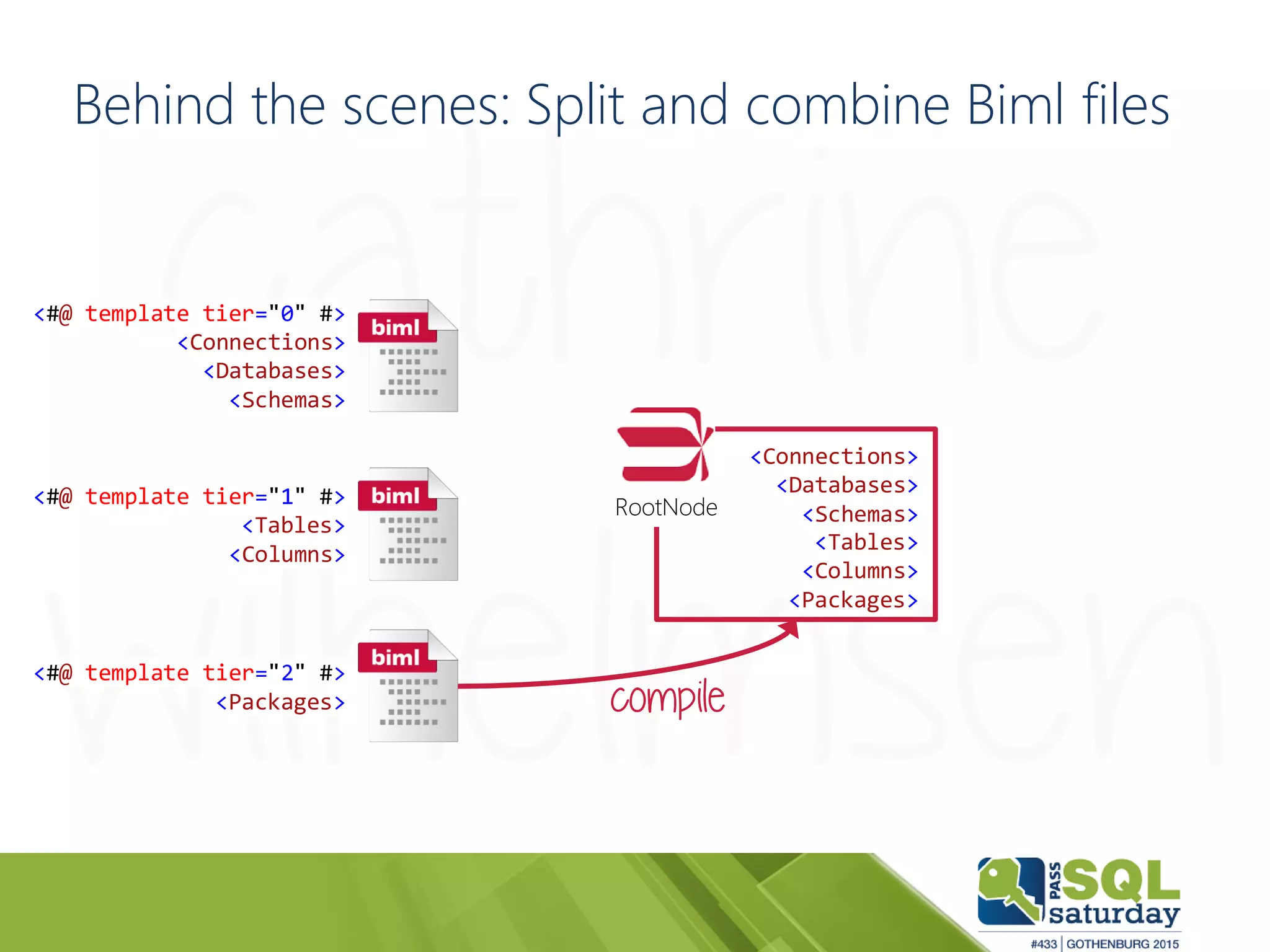

50.
<Connections>
<Databases>
<Schemas>
<Tables>
<Columns>
<Packages>
RootNode
<#@ template tier="0" #>
<Connections>
<Databases>
<Schemas>
<#@ template tier="1" #>
<Tables>
<Columns>
<#@ template tier="2" #>
<Packages> compile
Behind the scenes: Split and combine Biml files

51.
<Connections>
<Databases>
<Schemas>
<Tables>
<Columns>
<Packages>
RootNode
<#@ template tier="0" #>
<Connections>
<Databases>
<Schemas>
<#@ template tier="1" #>
<Tables>
<Columns>
<#@ template tier="2" #>
<Packages>
generate
Behind the scenes: Split and combine Biml files

52.
RootNode
<#@ template tier="0" #>
<Connections>
<Databases>
<Schemas>
<#@ template tier="1" #>
<Tables>
<Columns>
<#@ template tier="2" #>
<Packages>
Behind the scenes: Split and combine Biml files

53.
Don't Repeat Yourself: Include files
Include common code in multiple files and projects
Can include many file types: .biml .txt .sql .cs
Use the include directive
<#@ include file="CommonCode.biml" #>
The include directive will be replaced by the content of the included file
Include pulls code from the included file into the main file

54.
Don't Repeat Yourself: Include files

55.
Don't Repeat Yourself: CallBimlScript with parameters
Works like a parameterized include
File to be called (callee) specifies the input parameters it accepts
<#@ property name="Table" type="AstTableNode" #>
File that calls (caller) passes input parameters
<#=CallBimlScript("CommonCode.biml", Table)#>
CallBimlScript pushes parameters from the caller to the callee, and the
callee returns code

56.
Don't Repeat Yourself: CallBimlScript with parameters

57.
Don't Repeat Yourself: CallBimlScript with parameters

58.
Demo

59.
View compiled Biml
Credits: Marco Schreuder (@in2bi)
http://blog.in2bi.eu/biml/viewing-or-saving-the-
compiled-biml-file-s/
Helper file with high tier (tier="100")
Saves output of RootNode.GetBiml() to file

60.
What do you do next?
1. Download BIDS Helper
2. Identify your SSIS patterns
3. Rewrite one SSIS package to Biml to learn the basics
4. Expand with BimlScript
5. Get involved in the Biml community

61.
Biml on Monday...
…BimlBreak the rest of the week 

62.
More Biml!
Don't miss Rasmus Reinholdt's session
Building a meta-driven near realtime
ETL solution with BIML and SSIS
at 14:55!
…and come chat with us in the breaks 

63.
Thank you! 
@cathrinew
cathrinewilhelmsen.net
no.linkedin.com/in/cathrinewilhelmsen
contact@cathrinewilhelmsen.net
cathrinewilhelmsen.net/biml
slideshare.net/cathrinewilhelmsenBiml resources
over there!
